Octal Buffers/Line Drivers,with 3-State Outputs,SGM7SZ244 Replace MC74ACT244.
SGM7SZ244
SGM7SZ244.pdf
SGM7SZ244.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current Outputs Drive Up to 15 LSTTLLoads
? 3-State Outputs Drive Bus Lines or
BufferMemory Address Registers
? Low Power Consumption, ICC: 25μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package

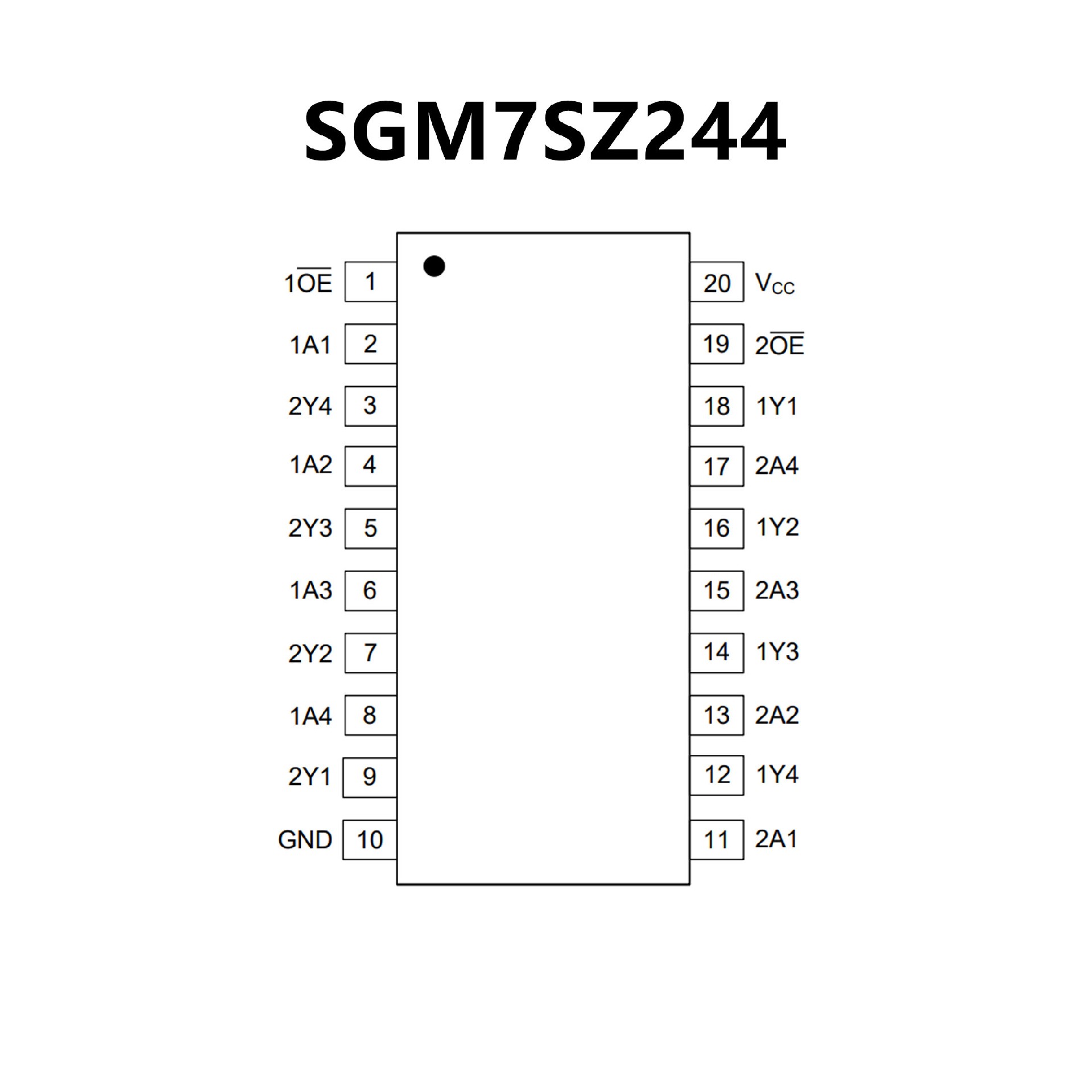

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 3?State Outputs Drive Bus Lines or
Buffer Memory AddressRegisters
? Outputs Source/Sink 24 mA
? ′ACT244 Has TTL Compatible Inputs
? These are Pb?Free Devices

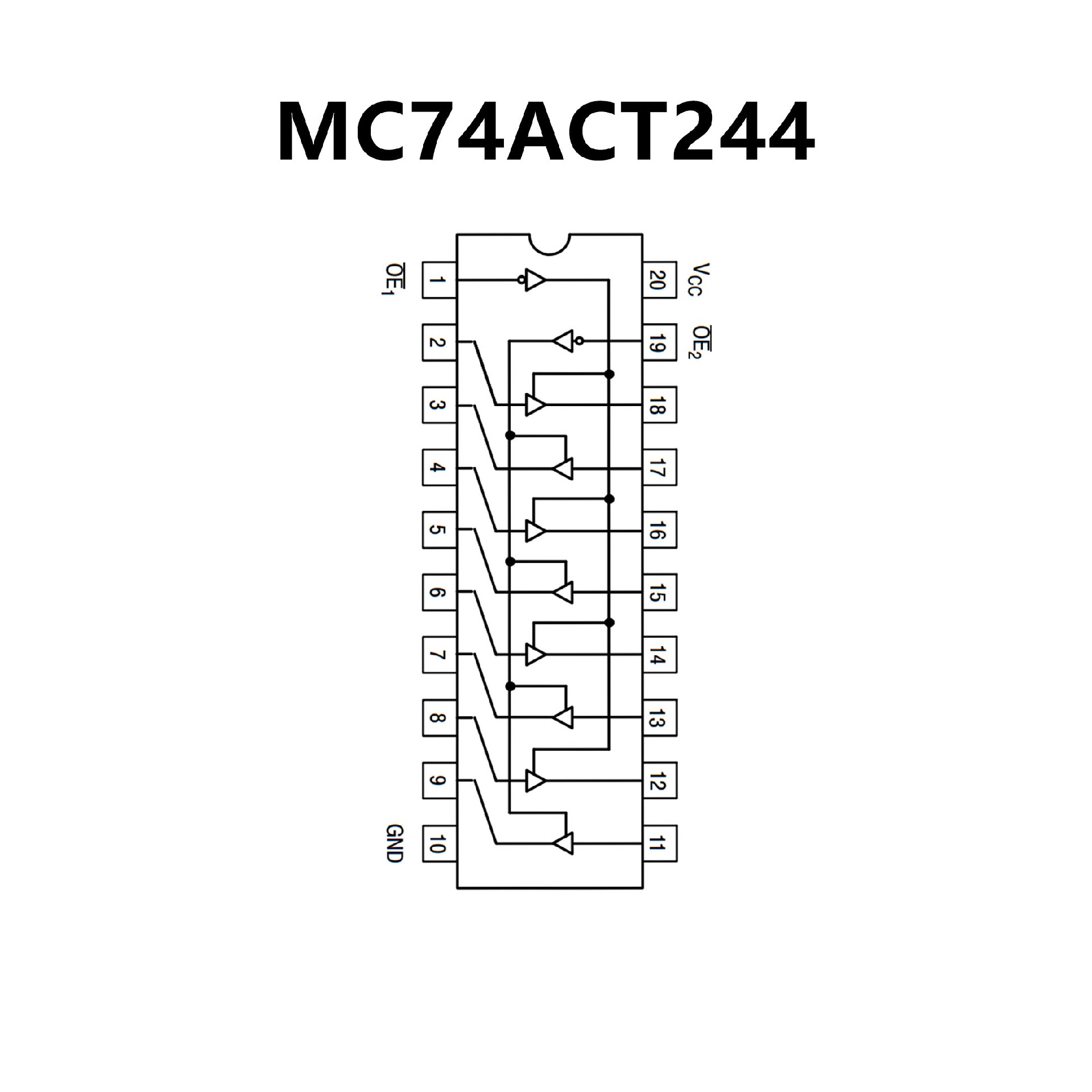

PIN CONFIGUTION
