Small Logic Inverter with Schmitt Trigger Input,SGM7SZ14XC5G Replace SN74AHCT1G14.
SGM7SZ14XC5G
SGM7SZ14XC5G.pdf
SGM7SZ14XC5G.pdfFEATURES
? Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Operating Range 4.5-V to 5.5-V
? Max tpd of 8 ns at 5-V
? Low Power Consumption, 10-μA Max ICC
? ±8-mA Output Drive at 5-V
? Inputs Are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA Per
JESD 17

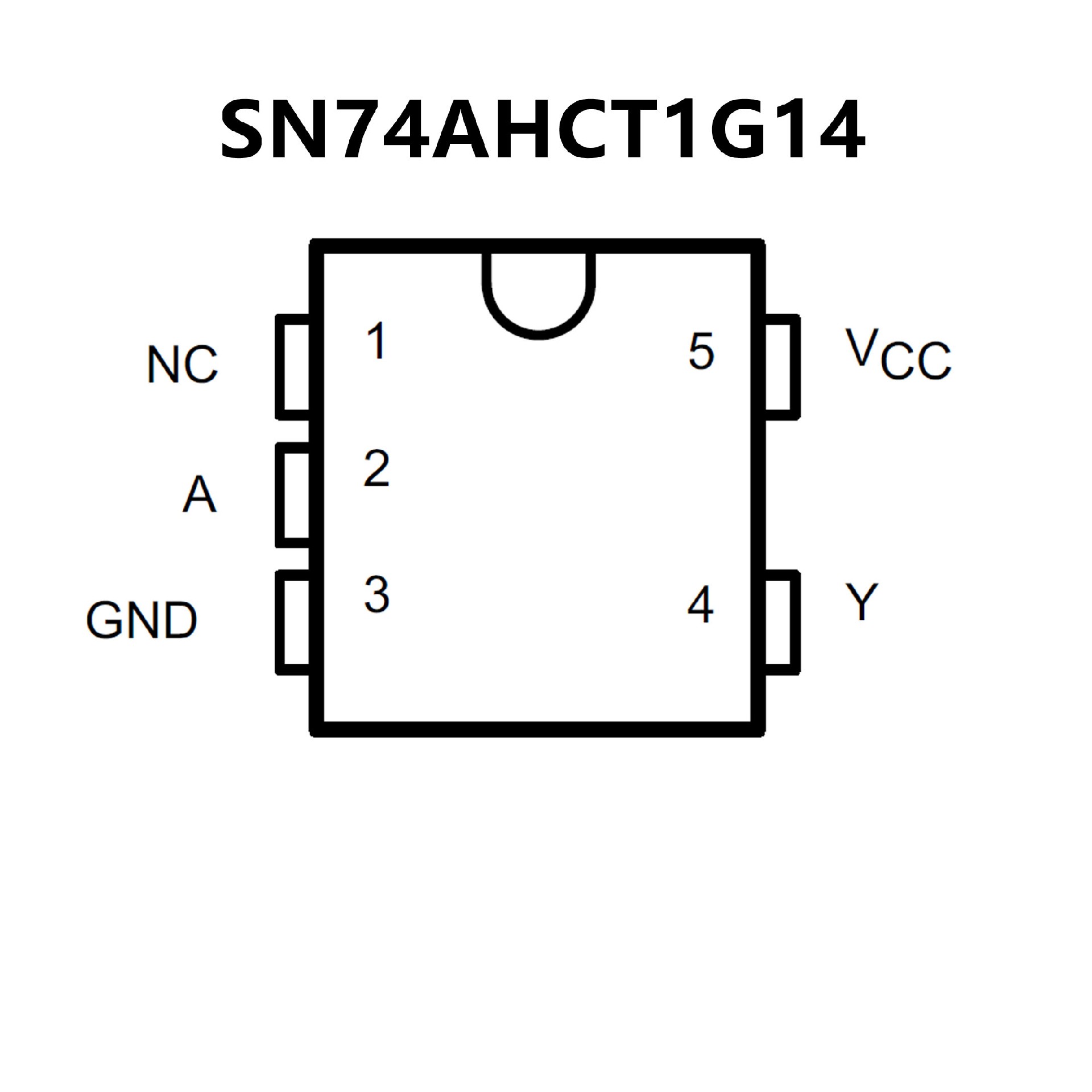

PIN CONFIGUTION
