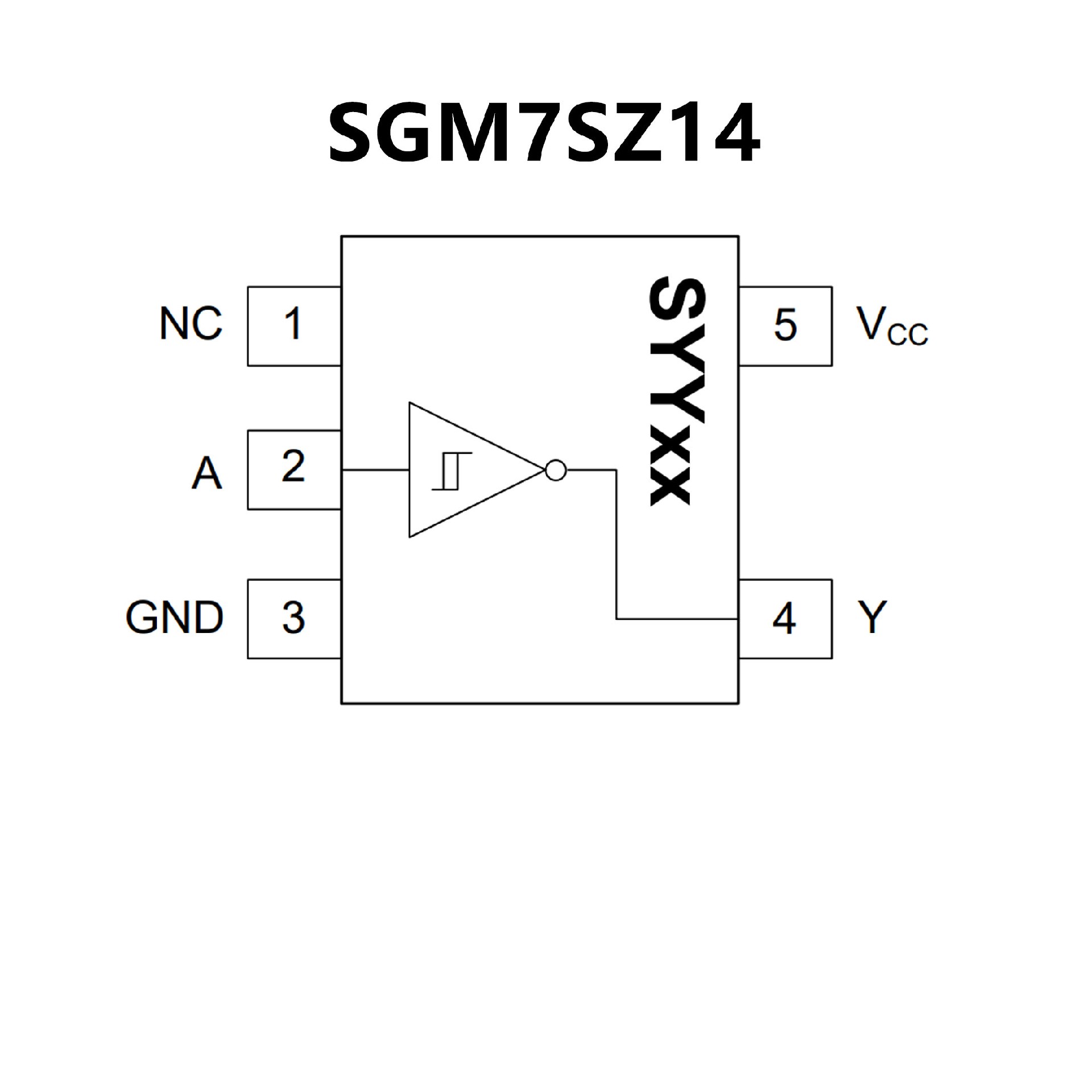

SGM7SZ14.pdf? Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

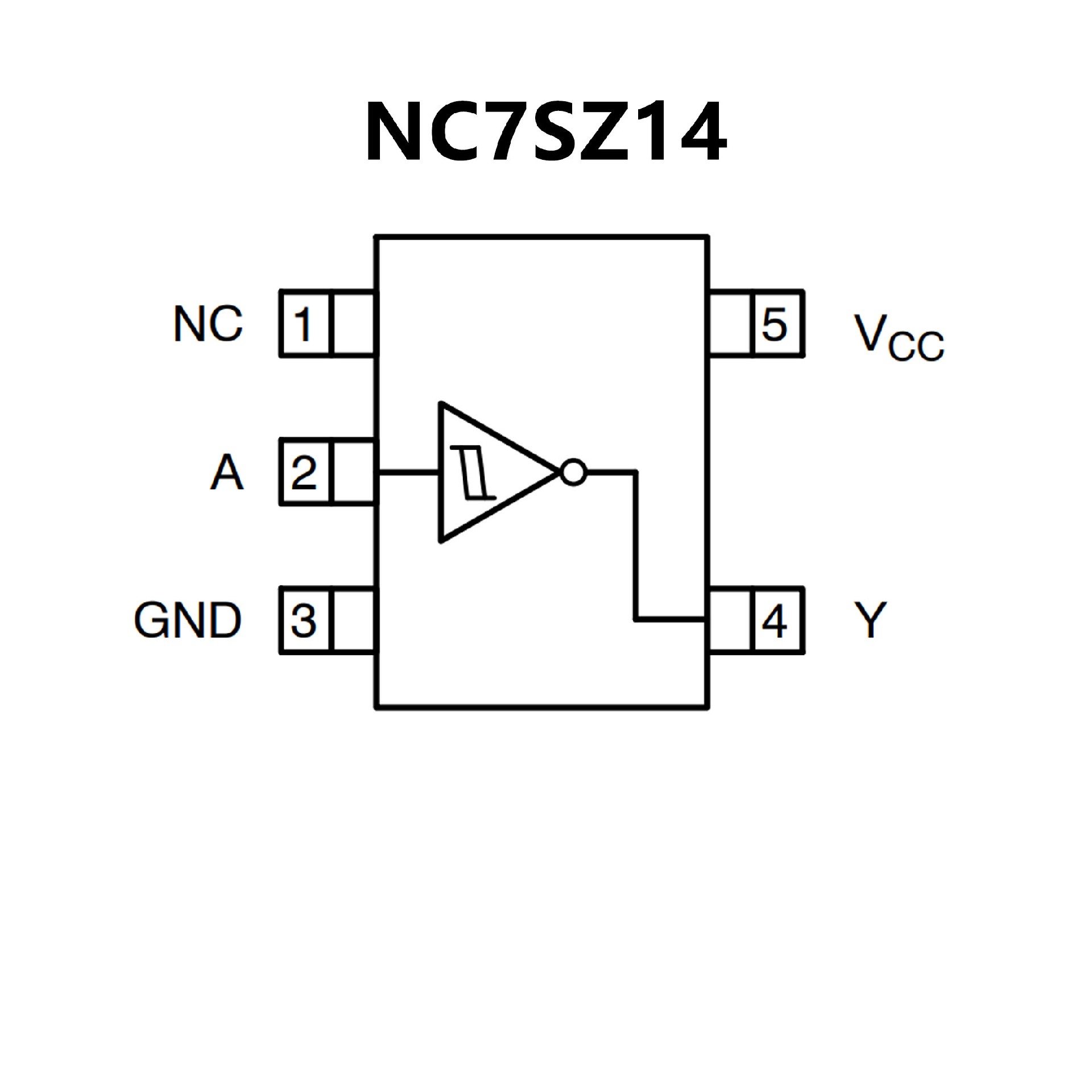

? Ultra?High Speed: tPD = 3.7 ns (Typical)
into 50 pF at 5 V VCC
? High Output Drive: ±24 mA at 3 V VCC
? Broad VCC Operating Range: 1.65 V to 5.5 V
? Matches Performance of LCX when
Operated at 3.3 V VCC
? Power Down High Impedance Inputs / Outputs
? Over?Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
? Proprietary Noise / EMI Reduction Circuitry
? Ultra?Small MicroPak? Packages
? Space?Saving SC?74A and SC?88A Packages
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHSCompliant
