Small Logic Inverter,SGM7SZ04XC5GTR Replace NC7S04.
SGM7SZ04
SGM7SZ04.pdf
SGM7SZ04.pdfFEATURES
? Ultra-High Speed: tPD = 4.2ns (TYP)
into 50pFat VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX
Operated atVCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates
5V to 3VTranslation
? Available in Green UTDFN-1.45×1-6L,
SC70-5and SOT-23-5Packages

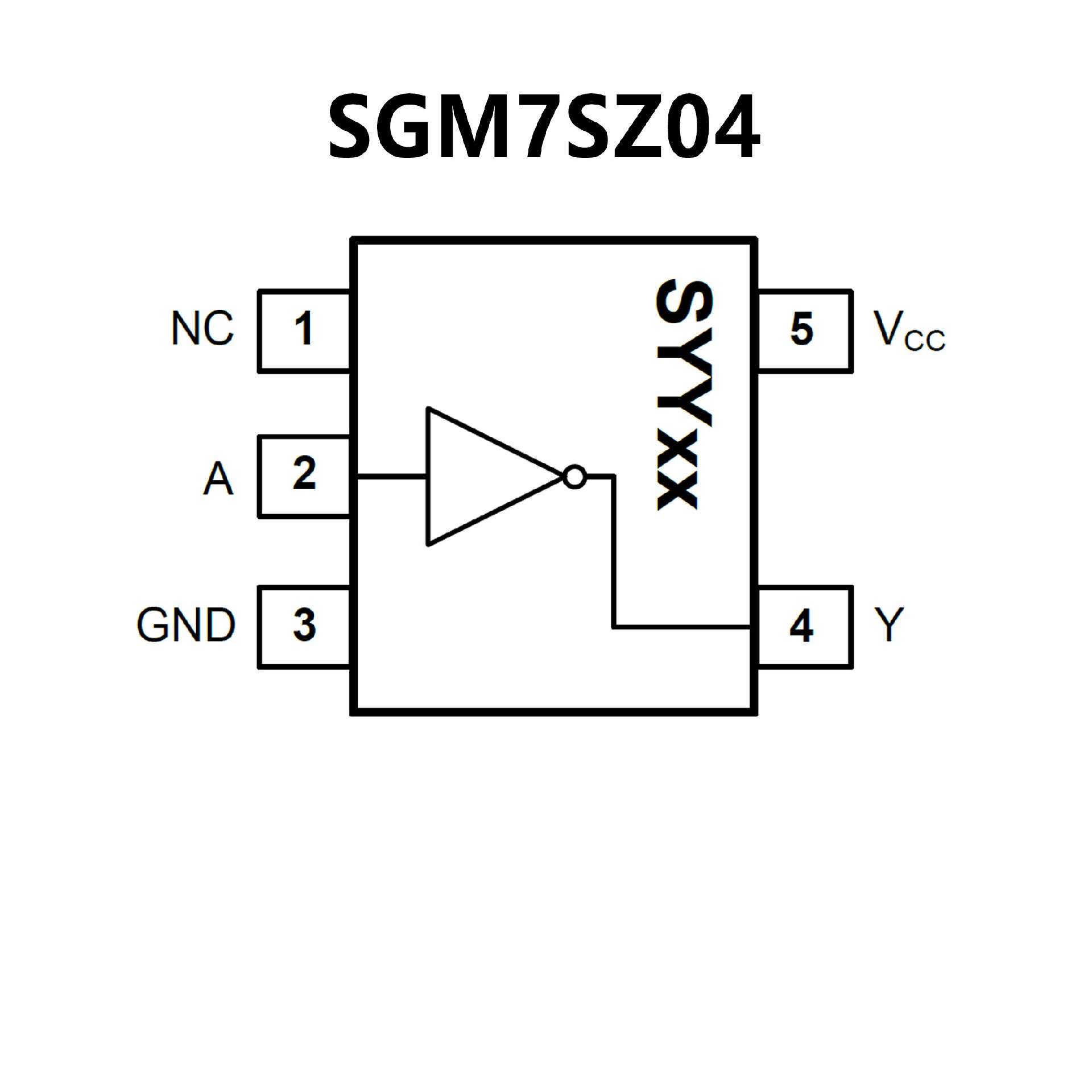

PIN CONFIGUTION
優勢替代
FEATURES
? Space?Saving SC?74A and
SC?88A 5?Lead Package
? Ultra?Small MicroPak? Leadless Package
? High Speed: tPD = 3 ns Typ
? Low Quiescent Power: ICC < 1 μA
? Balanced Output Drive: 2 mA IOL, ?2 mA IOH
? Broad VCC Operating Range: 2 V – 6 V
? Balanced Propagation Delays
? Specified for 3 V Operation
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
PIN CONFIGUTION
