Small Logic Inverter, SGM7SZ04 Replace 74AHC1G04GW.
SGM7SZ04
SGM7SZ04.pdf
SGM7SZ04.pdfFEATURES
? Ultra-High Speed: tPD = 4.2ns (TYP) into
50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
? Available in Green UTDFN-1.45×1-6L, SC70-5
and SOT-23-5 Packages

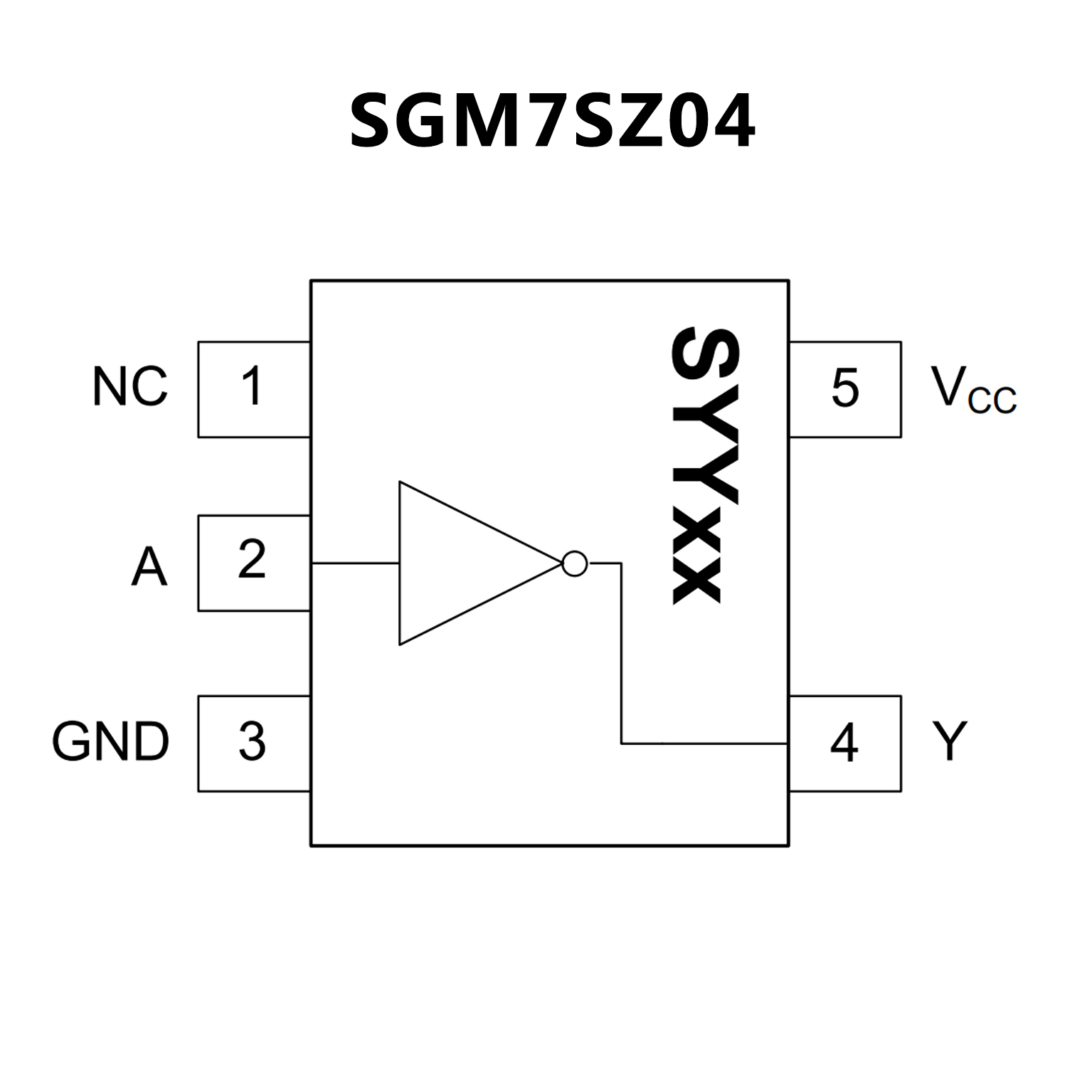

PIN CONFIGUTION
優勢替代
FEATURES
? Symmetrical output impedance
? High noise immunity
? Low power dissipation
? Balanced propagation delays
? Multiple package options
? ESD protection:
HBM JESD22-A114E: exceeds 2000 V
MM JESD22-A115-A: exceeds 200 V
CDM JESD22-C101C: exceeds 1000 V
? Specified from -40℃ to +125 ℃

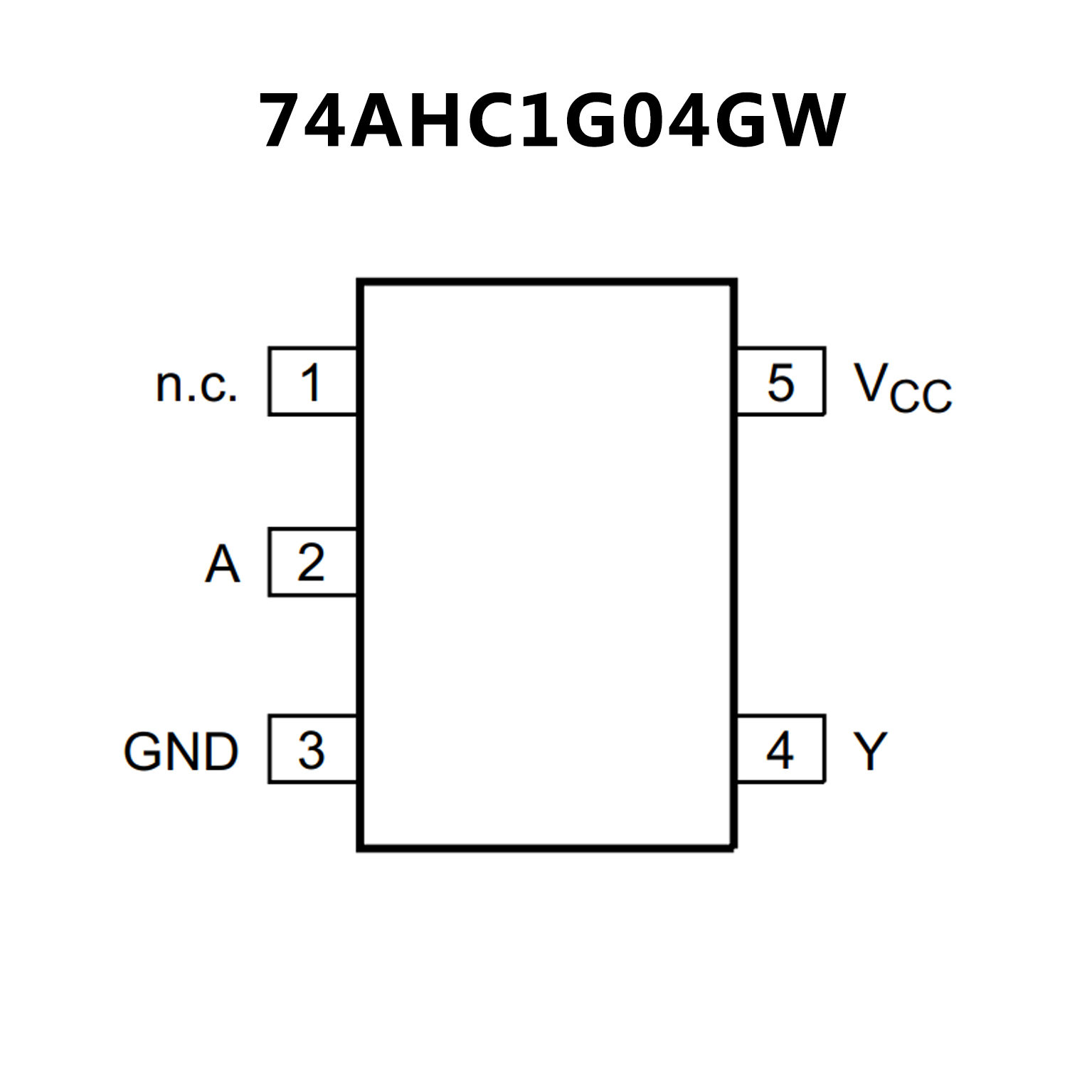

PIN CONFIGUTION
