3.3V,4通道模擬差動開關(guān), SGM7301 Replace HD3SS3412.
SGM7301
SGM7301.pdf
SGM7301.pdfFEATURES
? Supports XAUI and SGMII
? High Bandwidth: 8GHz at -3dB
? Excellent Dynamic Characteristics at 4GHz
Crosstalk = -30dB
Off Isolation = -19dB
Insertion Loss = -1.4dB
Return Loss = -12dB
? Available in a Green ULGA-3.5×9-42L Package

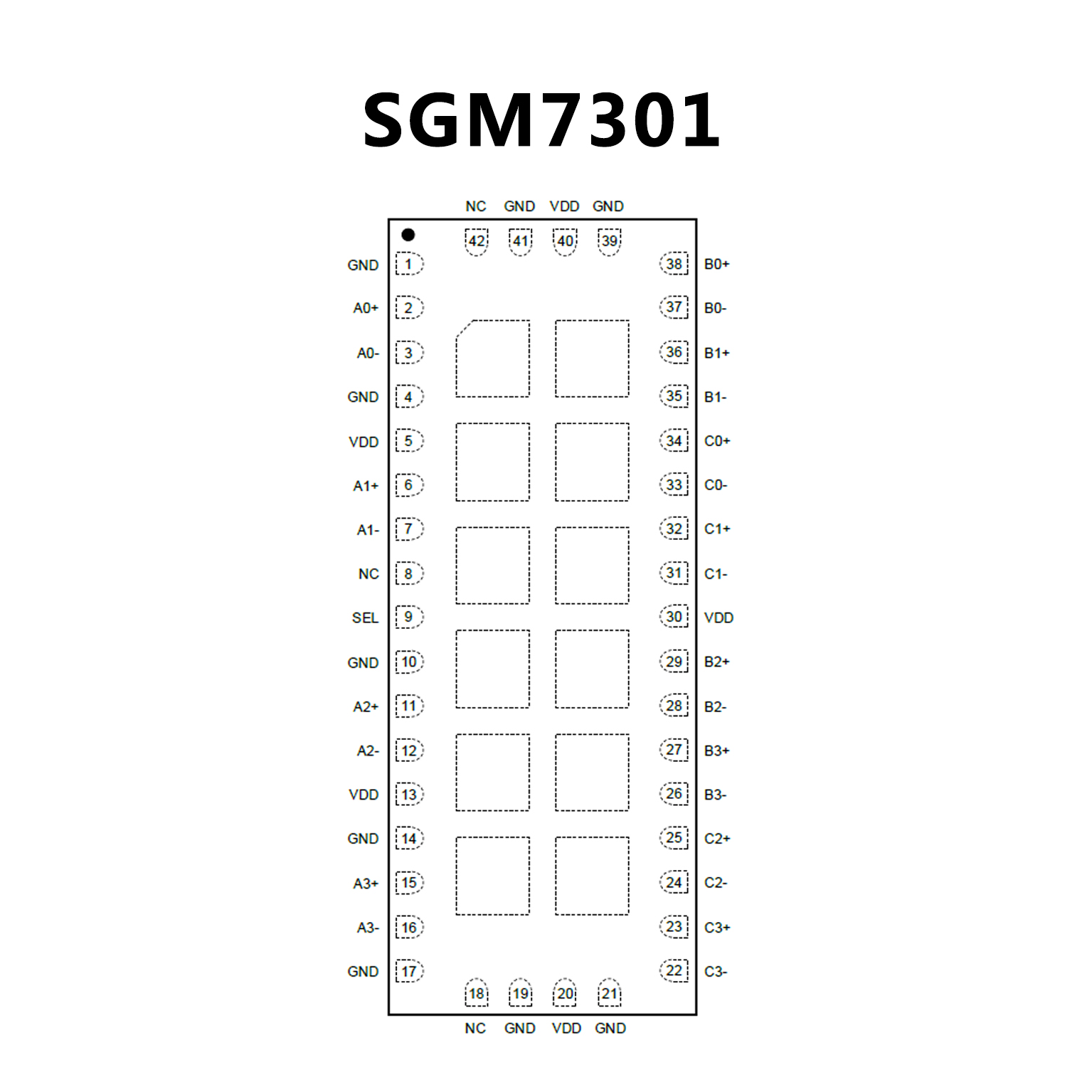

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Compatible With Multiple Interface Standards
Operating up to 12 Gbps Including PCI Express
Gen III and USB 3.0
? Wide –3dB Differential BW of over 8 GHz
? Excellent Dynamic Characteristics (at 4 GHz)
Crosstalk = –35 dB
Off Isolation = –19 dB
Insertion Loss = –1.5 dB
Return Loss = –11 dB
? Bidirectional "MUX/De-MUX" Type Differential
Switch
? VDD Operating Range 3.3 V ±10%
? Small 3.5-mm × 9.0-mm, 42-Pin WQFN Package
? Common Industry Standard Pinout
? Supports XAUI and SGMII

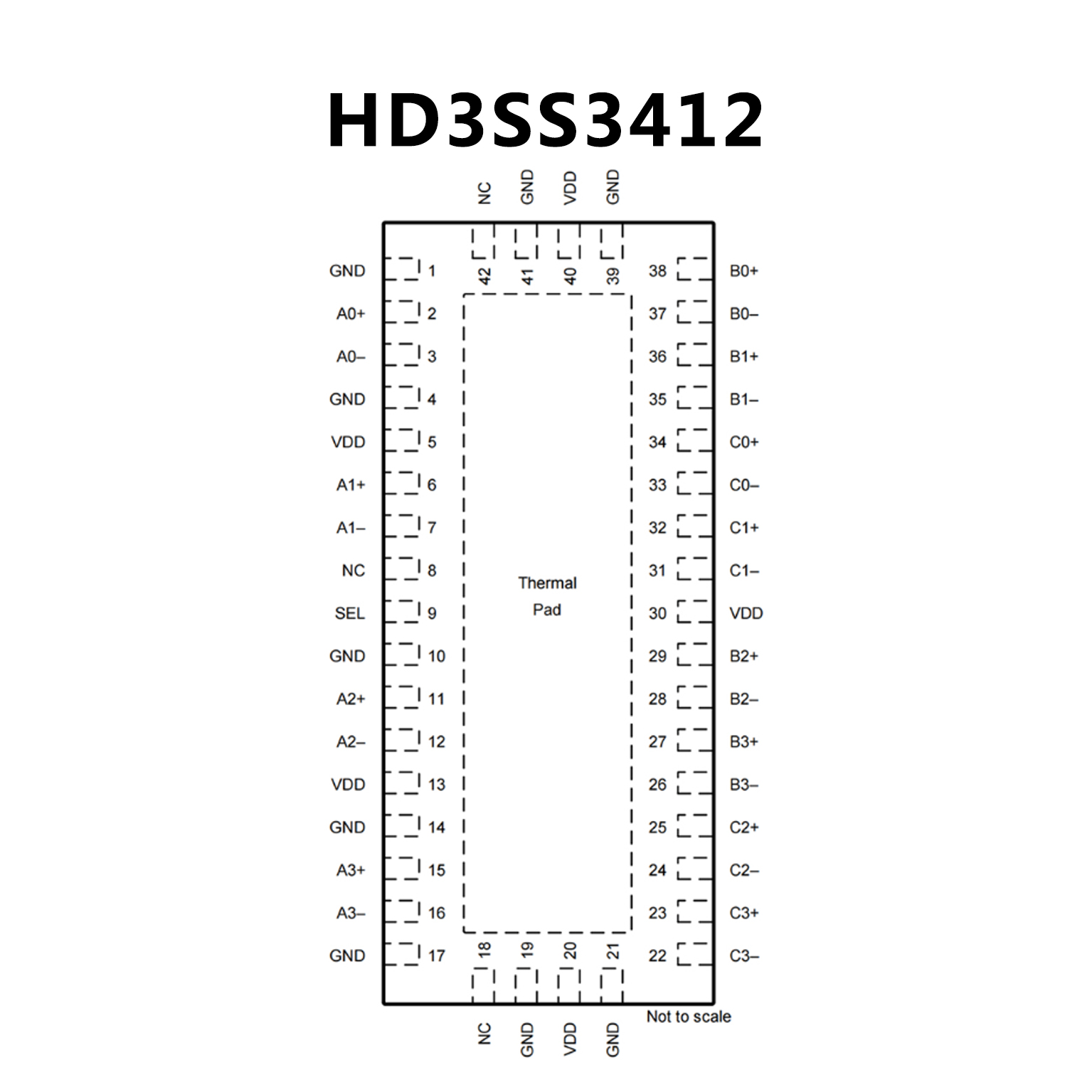

PIN CONFIGUTION
