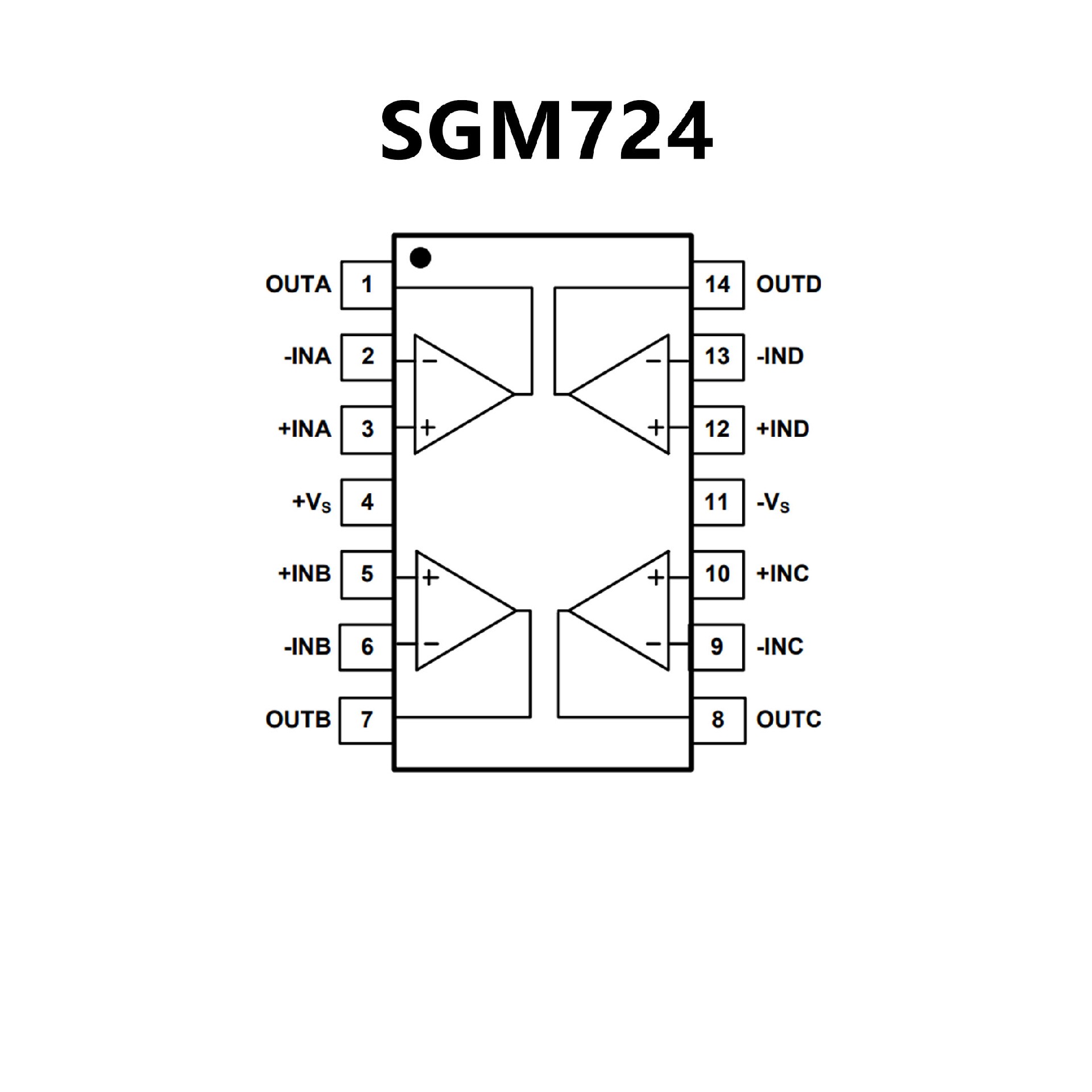

SGM724.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM721 Available in Green SC70-5, SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages
? 低失調電壓：5mV（最大值）
? 低IB：10pA（最大值）
? 高帶寬：6.5MHz
? 軌至軌輸入和輸出
? 單電源：2.3V 至5.5V
? 關斷：OPAx373
? 額定溫度高達125°C
? 微型封裝：5 引腳SOT-23、
6 引腳SOT-23、8 引腳SOT-23 和10 引腳VSON
