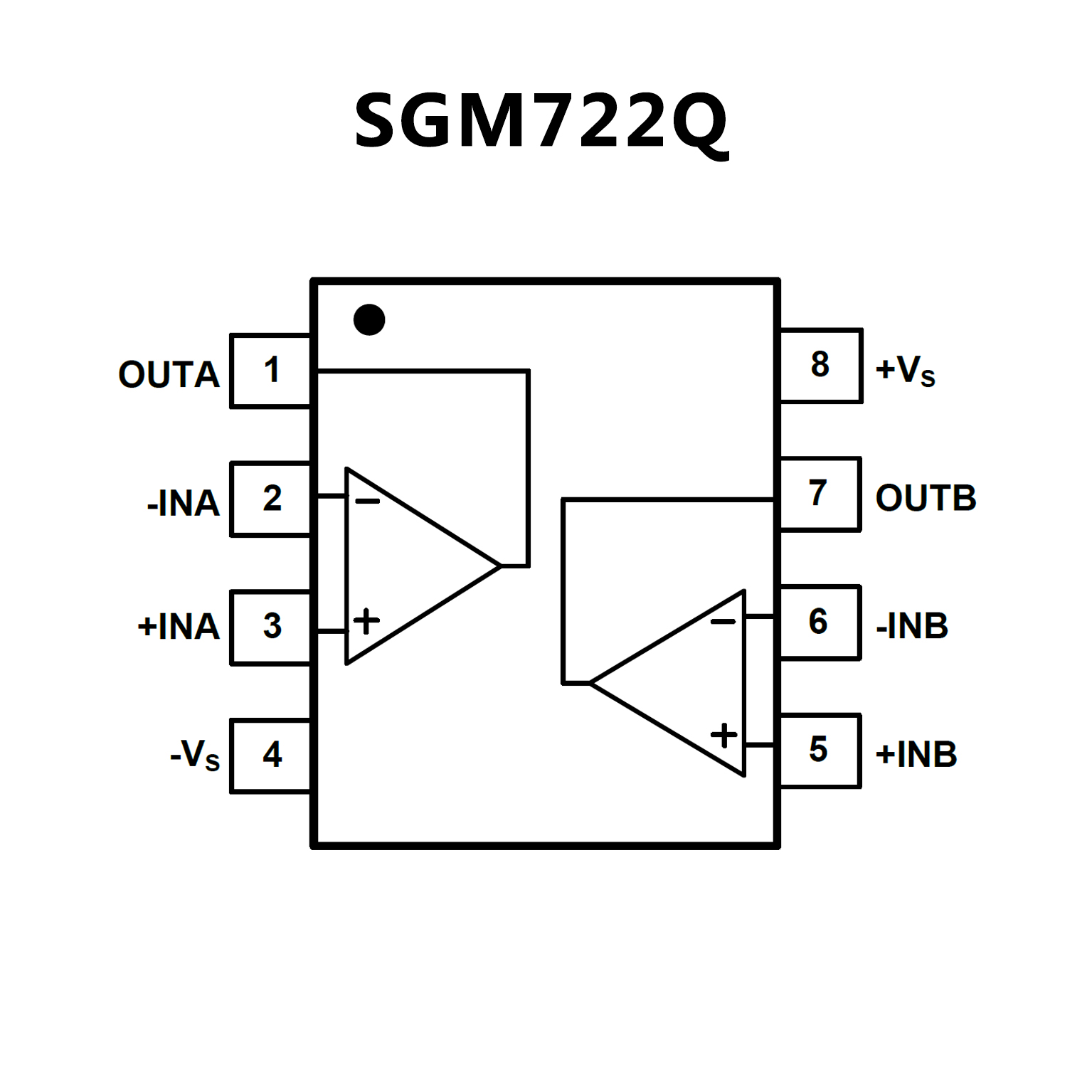

SGM722Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Input Offset Voltage: 1.5mV (TYP)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 7V/μs
? Settling Time to 0.1% with 2V Step: 0.4μs
? Overload Recovery Time: 0.5μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Quiescent Current: 2.4mA (TYP)
? Available in Green SOIC-8 and MSOP-8 Packages
? Qualified for Automotive Applications
Device Temperature Grade : –40°C to
125°C Ambient Operating Temperature Range
Device HBM Classification Level 2
Device CDM Classification Level C6
? Low IQ: 150 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 14 nV/√Hz at 1 kHz
? Gain Bandwidth: 3 MHz
? Low Input Bias Current: 0.2 pA
? Low Offset Voltage: 0.5 mV
? Unity-Gain Stable
? Internal RF and EMI Filter
? Specified Temperature Range:
40°C to +125°C
