High-Speed USB 2.0 (480Mbps) DPDT Analog Switch, SGM7229 Replace FSUSB42.
SGM7229
SGM7229.pdf
SGM7229.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 5.5Ω (TYP) at 3V
? Fast Switching Times:tON=40nstOFF=15ns
? Crosstalk: -20dB at 250MHz
? Off-Isolation: -22dB at 250MHz
? Rail-to-Rail Input and Output Operation
? Break-Before-Make Switching
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTQFN-1.8×1.4-10L and
MSOP-10 Packages

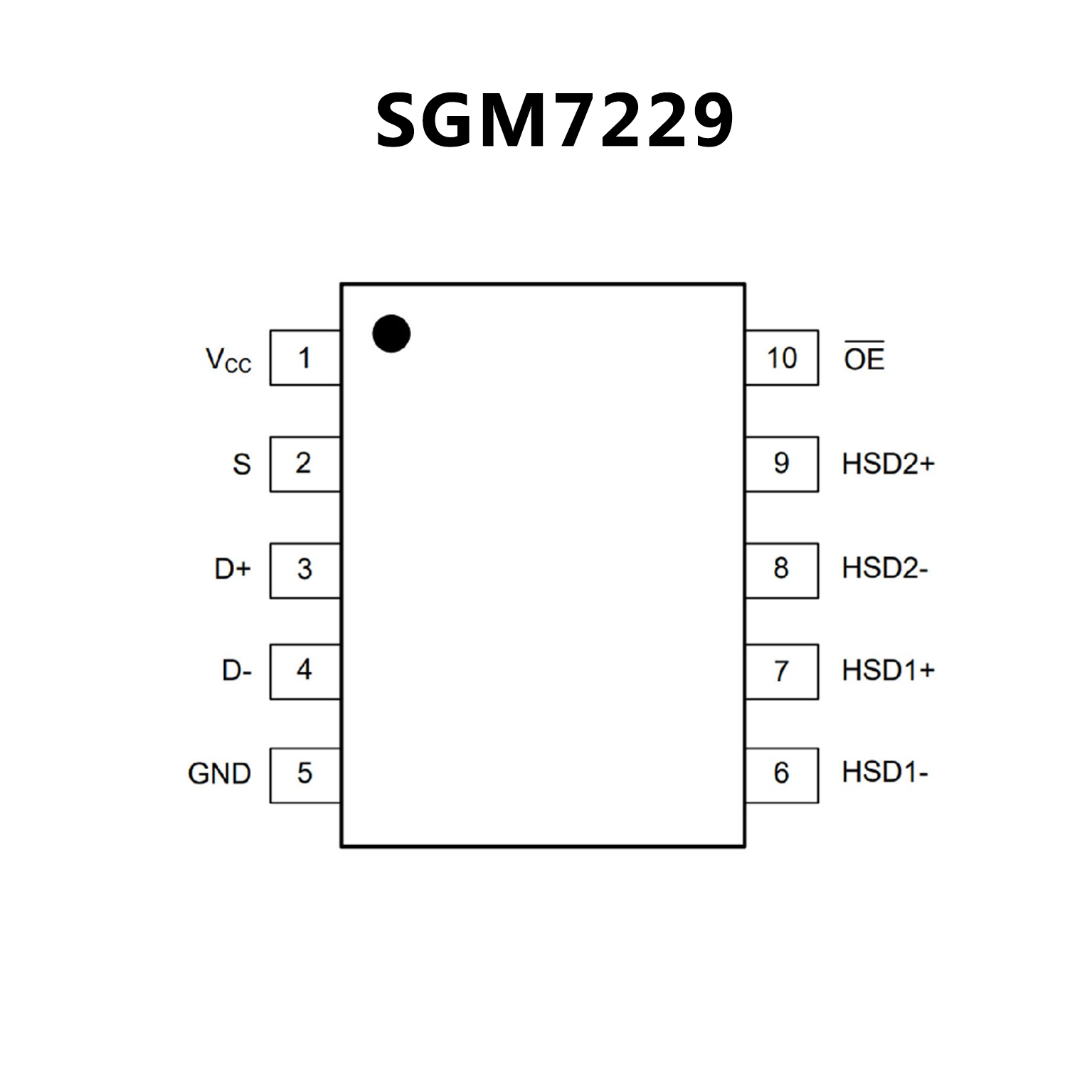

PIN CONFIGUTION
優勢替代
FEATURES
? 低導通電容: 3.7 pF典型值
? 低導通電阻: 3.9 ? 典型值
? 低功耗: 1 μA最大值
在擴展的電壓范圍內（VIN=1.8 V, VCC=4.4 V),
最大ICCT電流為15μA
? 寬廣的 -3 db帶寬: > 720 MHz
? Packaged in:
10-Lead UMLP (1.4 x 1.8 mm)
10-Lead MSOP
? 8 kV的ESD, >16 kV 電源對地ESD
? 當VCC=0V時所有管腳有斷電保護
D+/D-管腳耐壓達5.25 V
? 在無需額外元件的情況下所有的USB端口可耐過壓
高達5.25 V

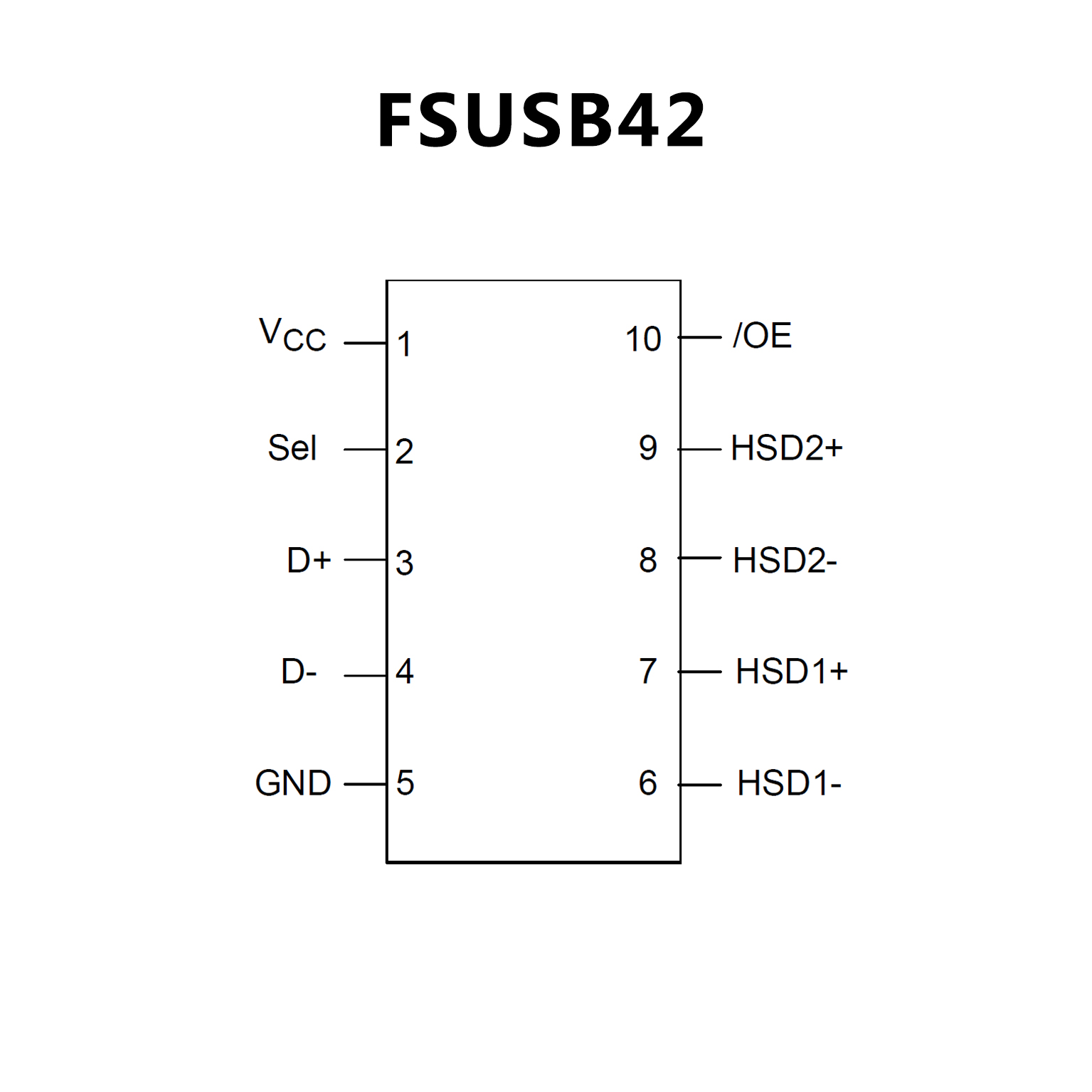

PIN CONFIGUTION
