SP4T Antenna Tuning Switch, SGM72204A Replace SKY19245.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
? Frequency Range: 0.1GHz to 2.7GHz
? Low On-Resistance: 1.0Ω (TYP)
? Low Turn-Off Capacitance: 130fF (TYP)
? Peak-Voltage Handling: 45V (TYP)
? RF Input Power: 43dBm
? Supply Range: 2.4V to 4.5V
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-1.1×1.5-10L Package

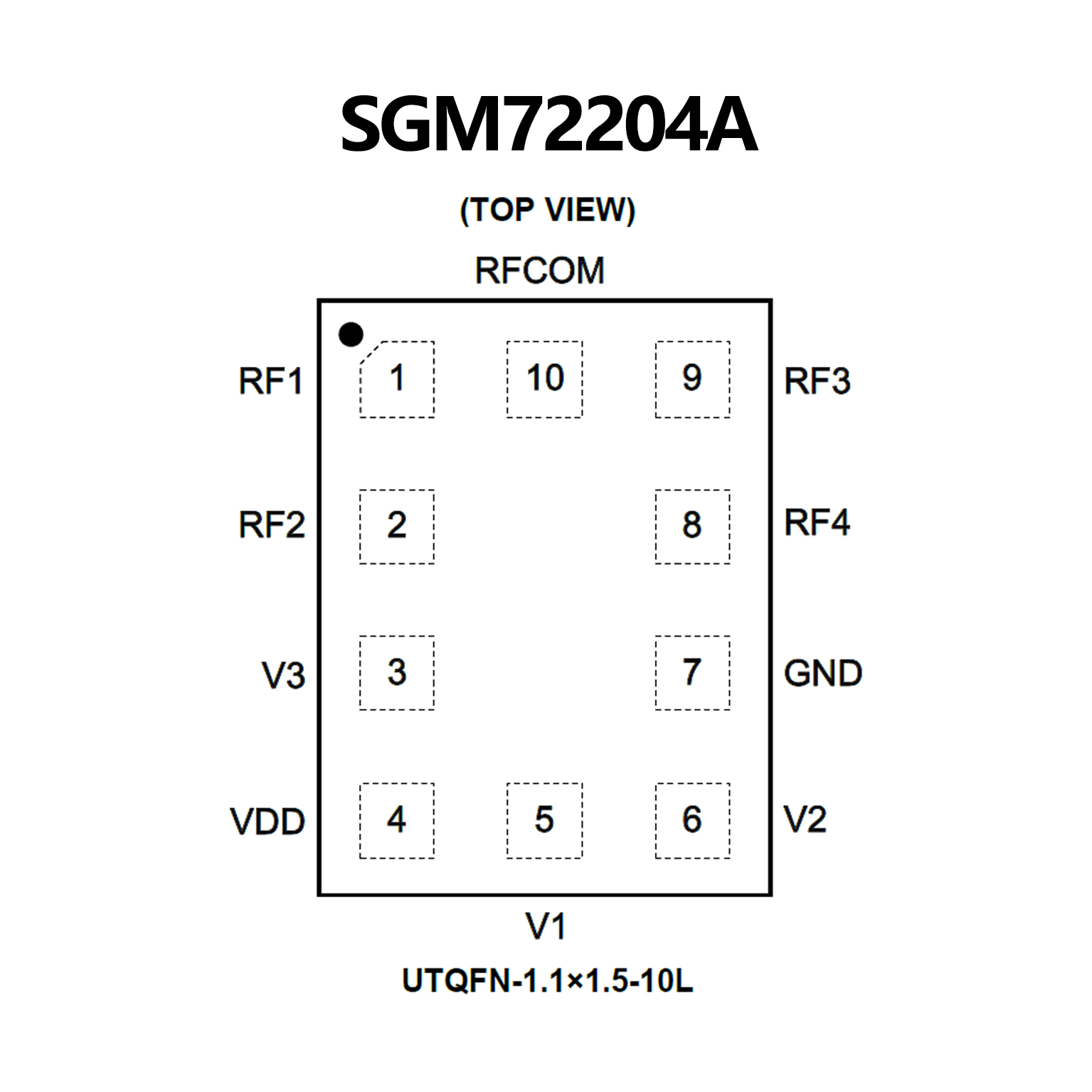

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Broadband frequency range: 0.1 to 2.7 GHz
? Low ON-state resistance and OFF-state capacitance
? High-power and peak-voltage handling (+42 dBm/
39 V typical)
? No external DC blocking capacitors required
? Small QFN (10-pin, 1.5 ? 1.1 ? 0.5 mm maximum)
package (MSL1, 260 °C per JEDEC J-STD-020)

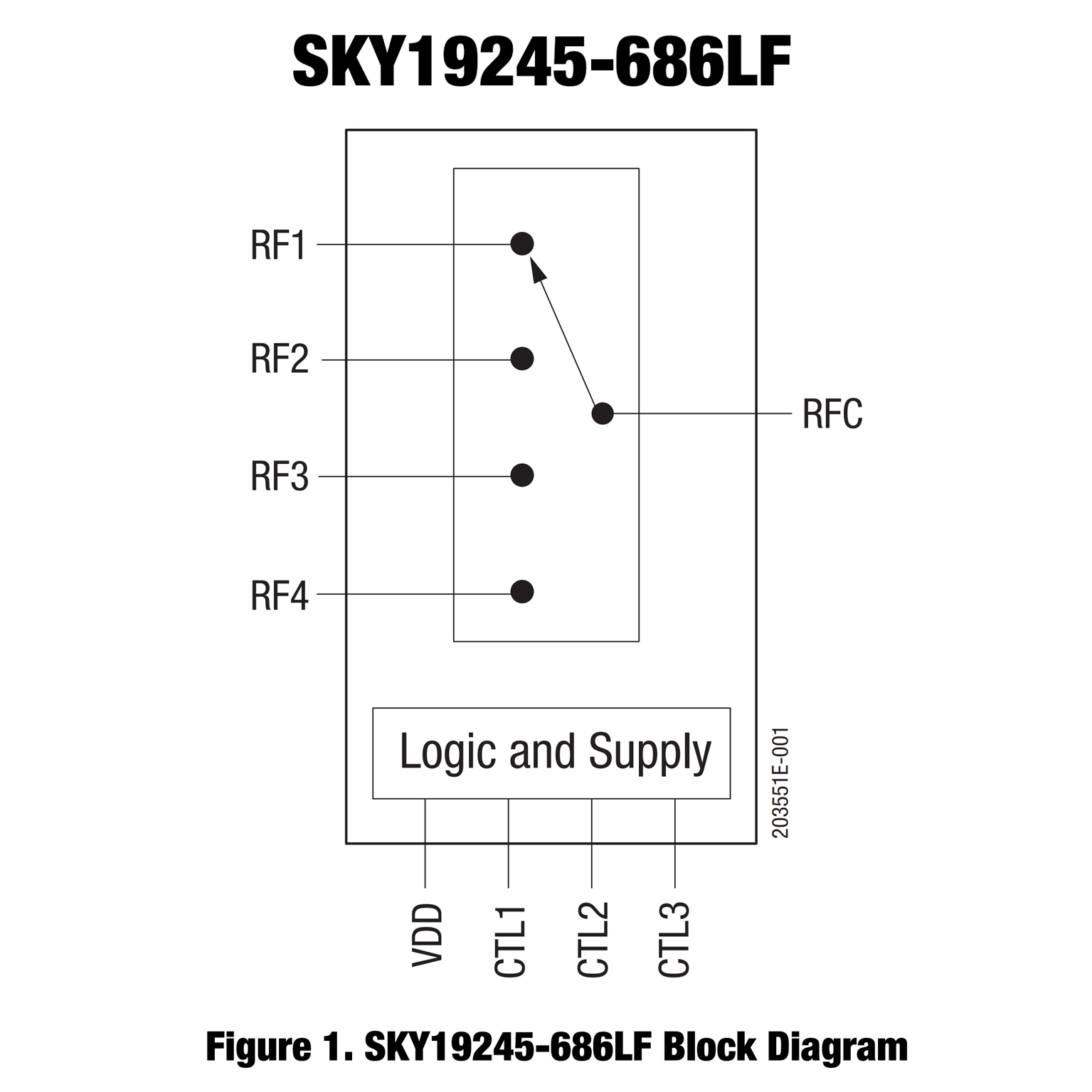

PIN CONFIGUTION
