USB Type-C Configuration Channel Logic and Port Control,SGM7220 Replace TUSB302.
SGM7220
SGM7220.pdf
SGM7220.pdfFEATURES
? Supply Voltage Range: 2.7V to 5V
? Supports USB Type-C Specification 1.1
? Enable Control: Active Low (EN Pin)
? Backward Compatible with USB Type-C
Specification 1.0
? Supports up to 3A of Current Advertisement and
Detection
? Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
? Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
? VBUS Detection
? I2C or GPIO Control
? Role Configuration Control through I2C
? Low Current Consumption
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTQFN-1.6×1.6-12L Package

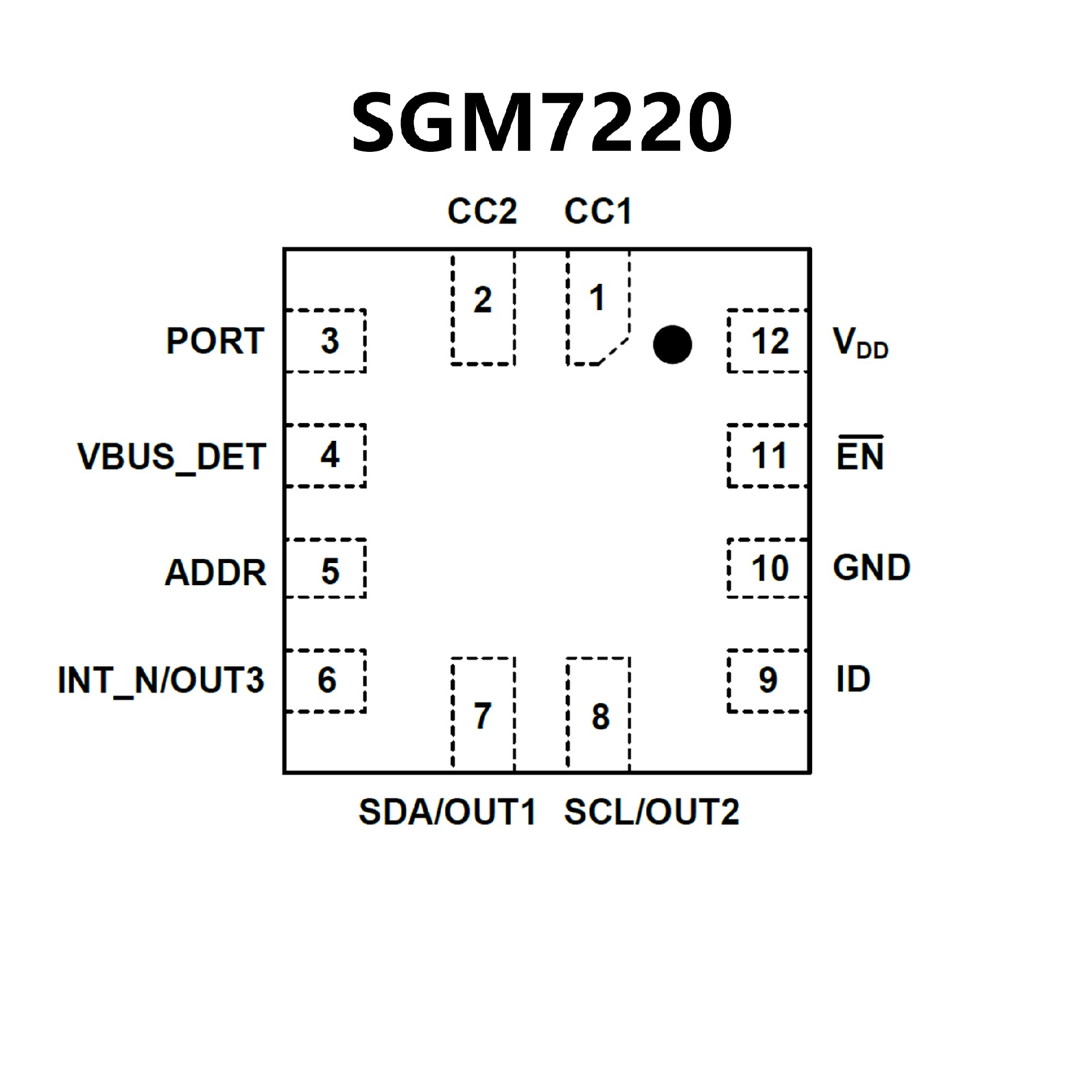

PIN CONFIGUTION
