SGM721XN5.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

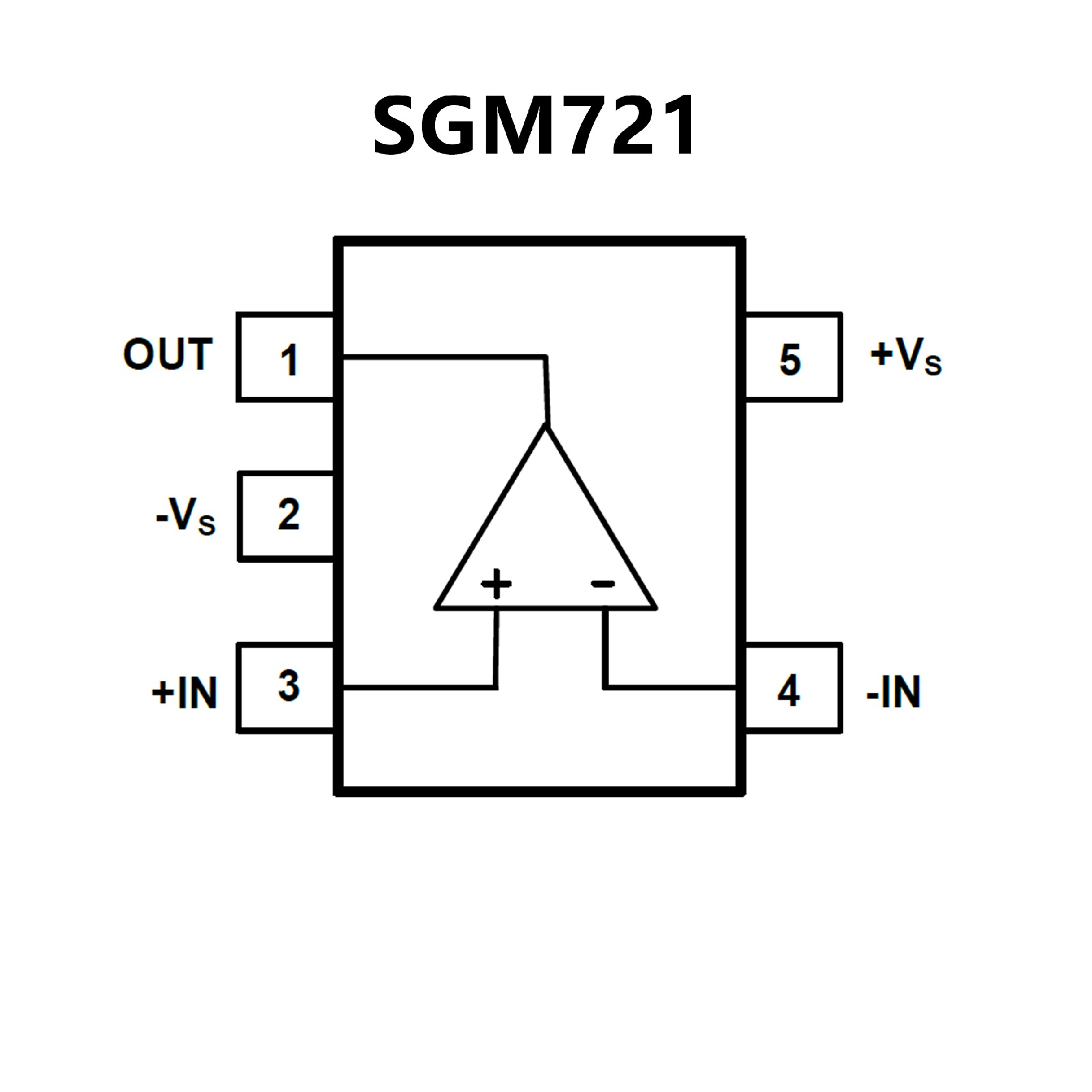

SGM721 Available in Green SC70-5, SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages

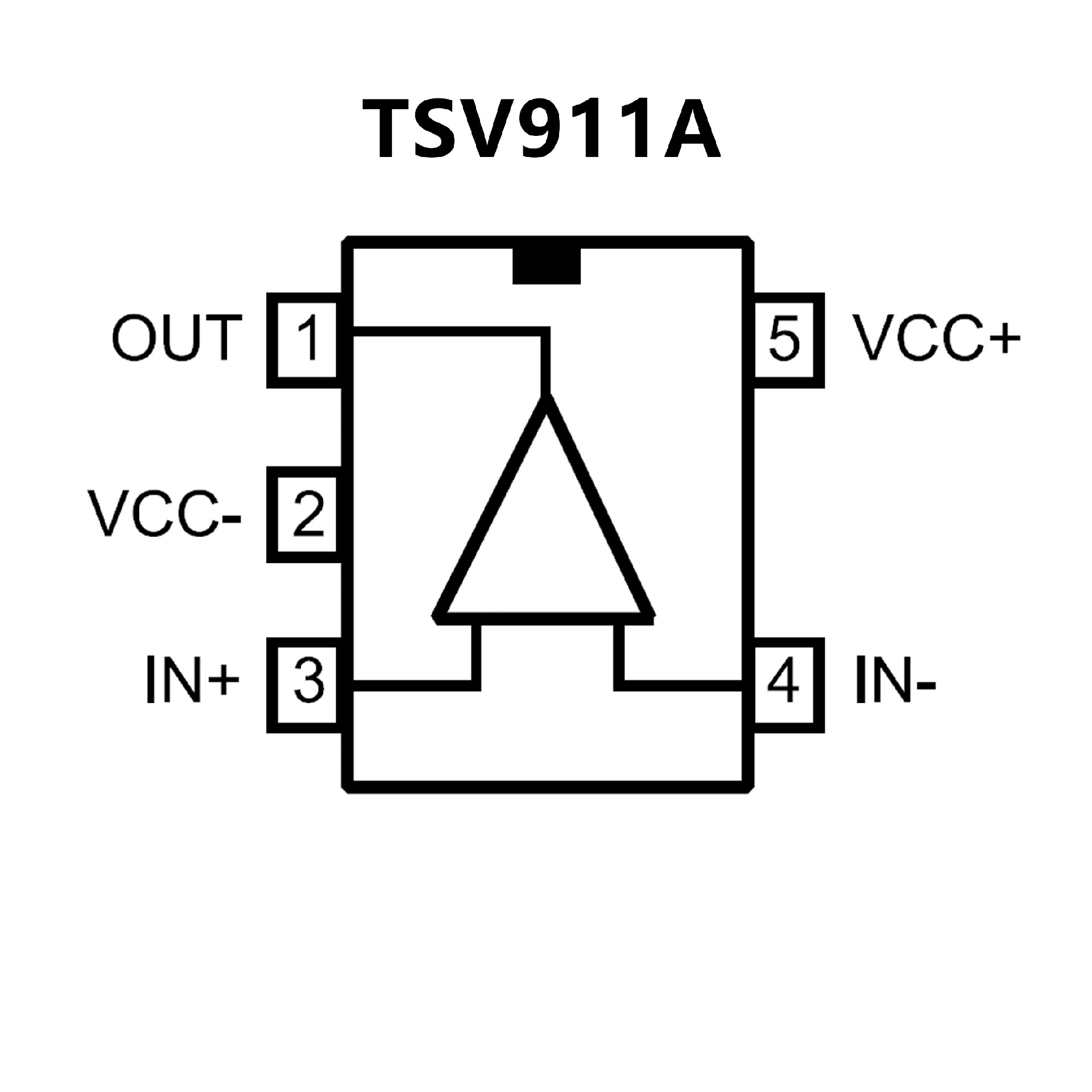

? Rail-to-rail input and output
? Wide bandwidth
? Low power consumption: 820 μA typ
? Unity gain stability
? High output current: 35 mA
? Operating from 2.5 V to 5.5 V
? Low input bias current, 1 pA typ
? Low input offset voltage: 1.5 mV max (A grade)
? ESD internal protection ≥ 5 kV
? Latch-up immunity
