0.4 to 3.8 GHz DP12T (SP6T/SP6T)Main/Receive Diversity Switch with MIPI RFFE Interface for Carrier Aggregation.
SGM72112B.pdf優勢替代
FEATURES
? Broadband frequency range: 0.4 to 3.8 GHz
? Single, positive DC power supply (2.5 to 4.8 V)
? Integrated, programmable MIPI interface using separate
registers for ANT_A and ANT_B bands
? Dual antenna ports can be connected externally to a diplexer
? Small QFN (18-pin, 2.0 x 2.4 x 0.55 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

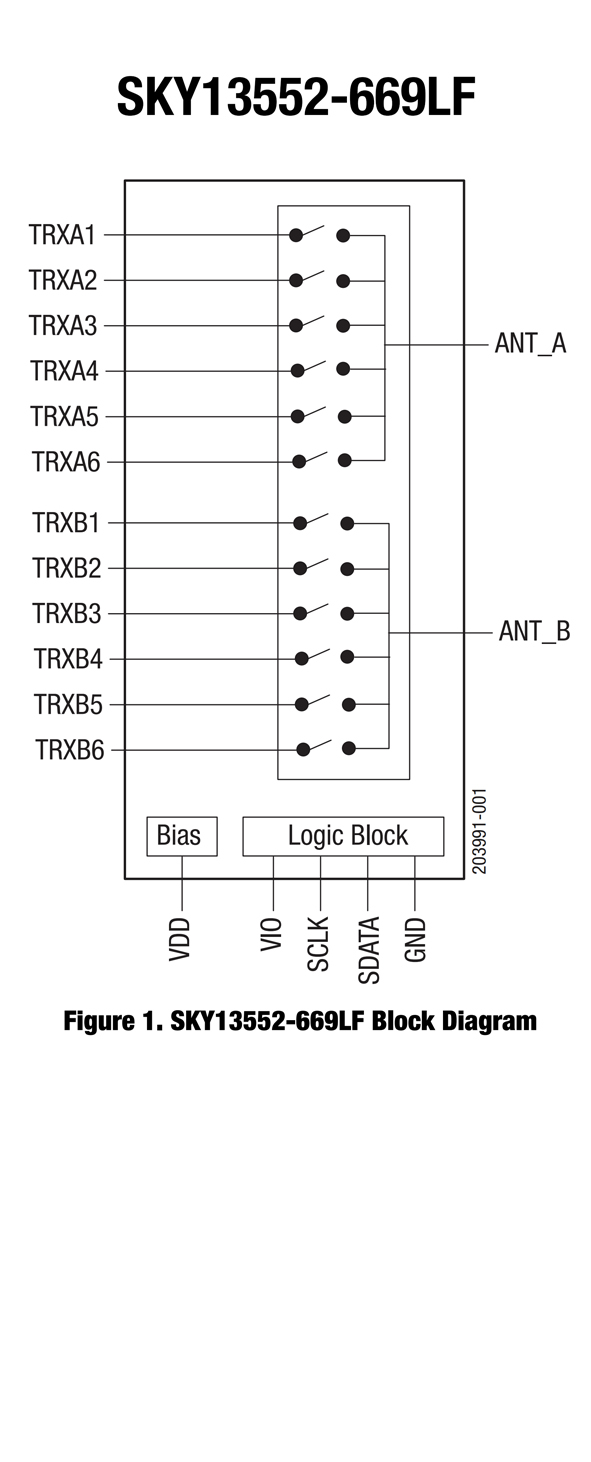

PIN CONFIGUTION
