SP12T Switch with MIPI for LTE Diversity,SGM72112A Replace MXD86C0.
SGM72112A.pdf優(yōu)勢替代
FEATURES
? Excellent insertion loss
- 0.70 dB Insertion Loss at 2.7GHz
? P0.1dB @ 27dBm
? Multi-Band operation 700MHz to 3000MHz
? RFFE serial control interface
? Compact 2.5mm x 2.5mm in QFN-20 package，MSL3
? No DC blocking capacitors required (unless
external DC is applied to the RF ports)

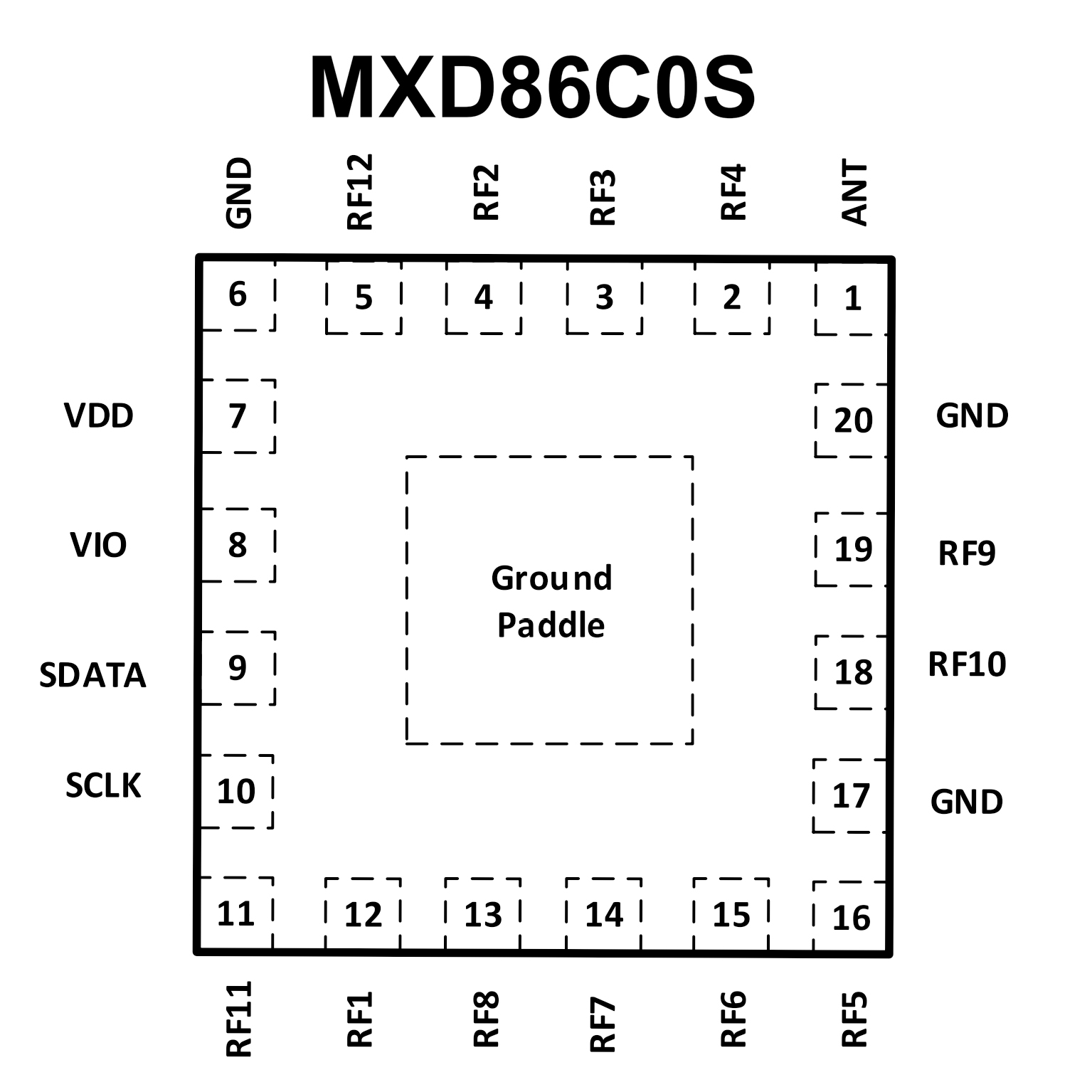

PIN CONFIGUTION
