Low-Cost, Microprocessor Supervisory Circuit,SGM706B Replace IM706.
SGM706B
SGM706B.pdf
SGM706B.pdfFEATURES
? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
? Guaranteed nRESET Valid at VCC = 1V
? 200ms Reset Pulse Width
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Independent Watchdog Timer (1.6s) Timeout
? Voltage Monitor for Power-Fail
or Low-BatteryWarning
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

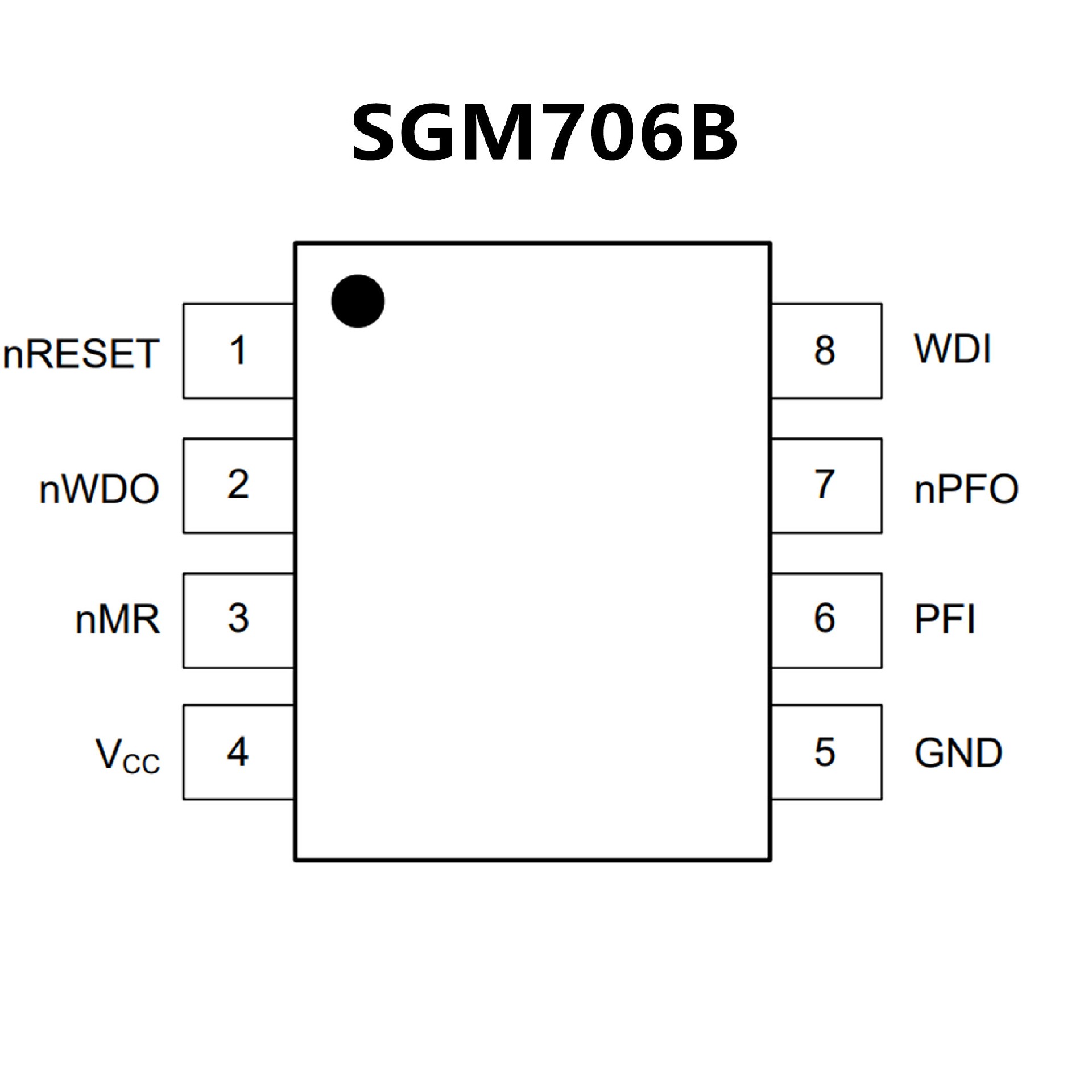

PIN CONFIGUTION
