10A Fully Integrated Synchronous Boost Converter, SGM6610 Replace SY7120.
SGM6610
SGM6610.pdf
SGM6610.pdfFEATURES
? Input Voltage Range: 2.7V to 12V
? Output Voltage Range: 4.5V to 12.6V
? 10A Switch Current
? Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V and
IOUT = 3A
? Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
? 1μA Current into VIN Pin during Shutdown
? Resistor-Programmable Switch Peak Current Limit
? Adjustable Switching Frequency: 200kHz to 2.2MHz
? Programmable Soft-Start
? Output Over-Voltage Protection at 13.2V
? Cycle-by-Cycle Over-Current Protection
? Thermal Shutdown
? Available in Green TQFN-4.5×3.5-20L Package

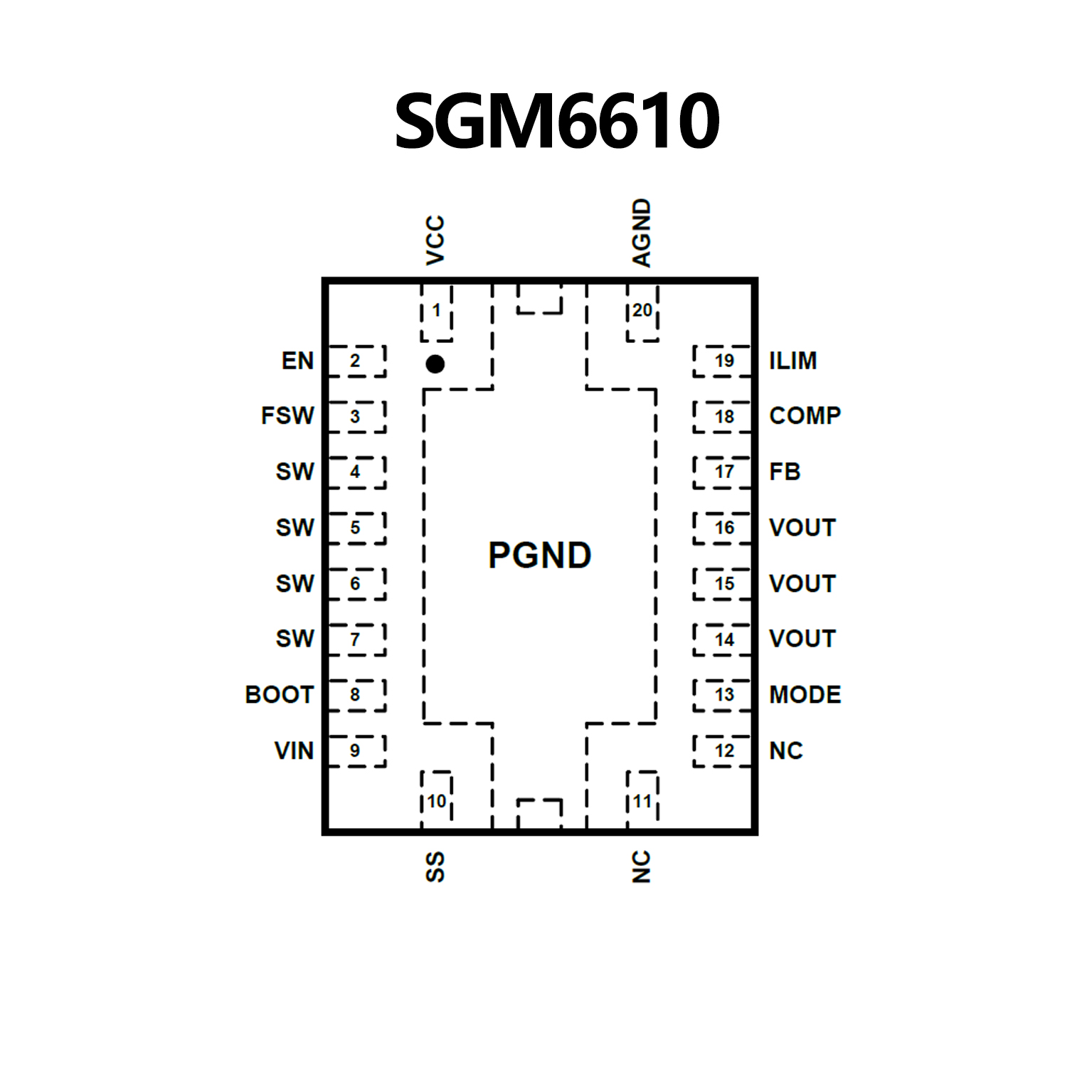

PIN CONFIGUTION
優勢替代
FEATURES
? Input Range: 2.8-16V
? Programmable Pseudo-constant Frequency:
300kHz-2MHz
? Low RDS(ON) for Internal Switch
Main FET: 10mΩ
Rectifier FET: 20mΩ
? PFM/PWM Selectable Light Load Operation Mode
? Internal Loop Compensation
? Programmable Peak Current Limit
? Internal Soft-start Time Limit the Inrush Current
? Input Voltage UVLO
? Over Temperature Protection
? Over Voltage Protection
? RoHS Compliant and Halogen Free
? Compact Package:QFN3×3-20
PIN CONFIGUTION
