Synchronous Step-Up Converter with Ultra Low Quiescent Current, SGM66099 P2P TPS61099.
SGM66099
SGM66099.pdf
SGM66099.pdfFEATURES
? Operating Input Voltage Range: 0.9V to 5.2V
? Ultra Low Quiescent Current
0.6μA Ultra Low IQ into VOUT Pin
0.05μA Ultra Low IQ into VIN Pin
? 1.2MHz Fixed Frequency Operation
? Adjustable Output Voltage from 2.5V to 5.2V
? Fixed Output Voltage Versions Available
? Power-Save Mode for Improved Efficiency at Low
Output Power
? Regulated Output Voltage in Down Mode
? True Disconnection During Shutdown
? Up to 75% Efficiency at 10μA Load with Fixed
Output Voltage Version
? Up to 93% Efficiency from 10mA to 300mA Load
? Operating Ambient Temperature Ranges
Temperature Grade Y: -40℃ to +85℃
Temperature Grade X: -40℃ to +125℃
? Available in Green WLCSP-1.22×0.83-6B and
TDFN-2×2-6AL Packages

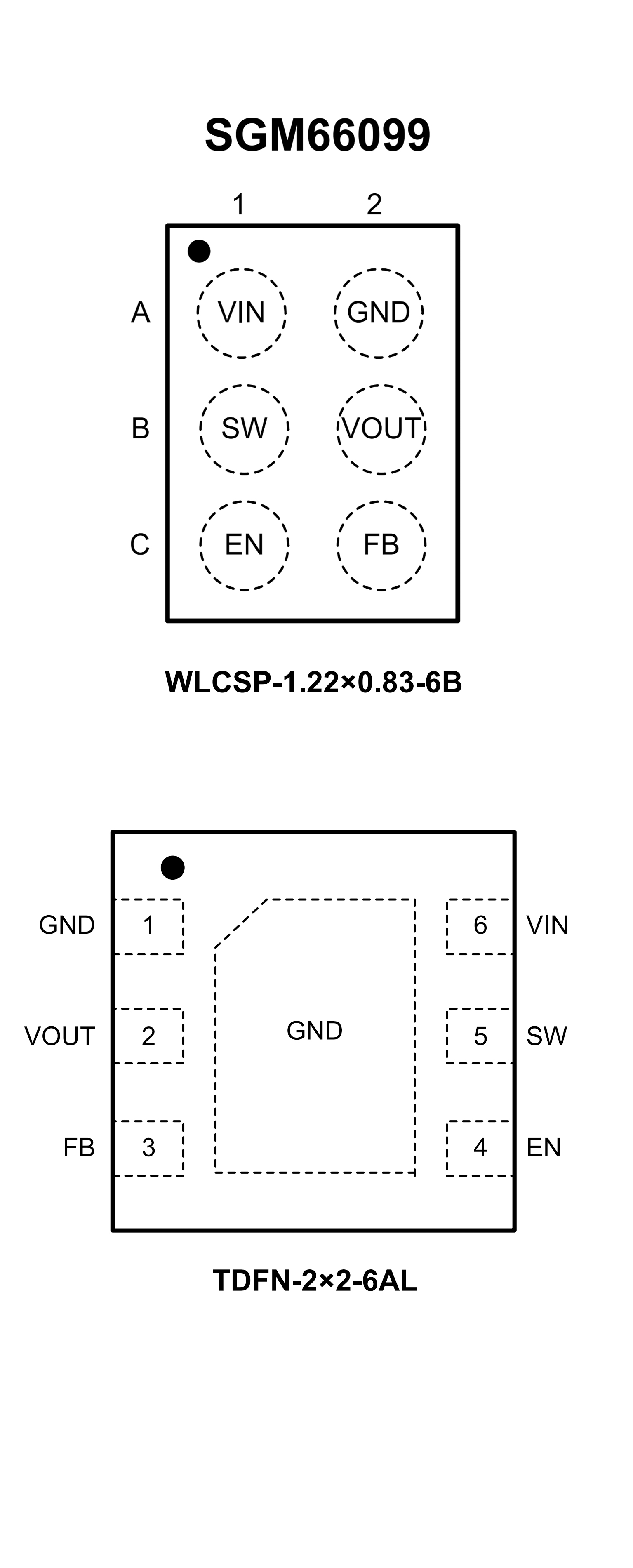

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 600 nA Ultra-Low IQ into VOUT Pin
? 400 nA Ultra-Low IQ into VIN Pin
? Operating Input Voltage from 0.7 V to 5.5 V
? Adjustable Output Voltage from 1.8 V to 5.5 V
? Fixed Output Voltage Versions Available
? Minimum 0.8 A Switch Peak Current Limit
? Regulated Output Voltage in Down Mode
? True Disconnection During Shutdown
? Up to 75% Efficiency at 10 μA Load with Fixed
Output Voltage Versions
? Up to 93% Efficiency from 10 mA to 300 mA Load
? 6-Ball 1.23 mm x 0.88 mm WCSP Package

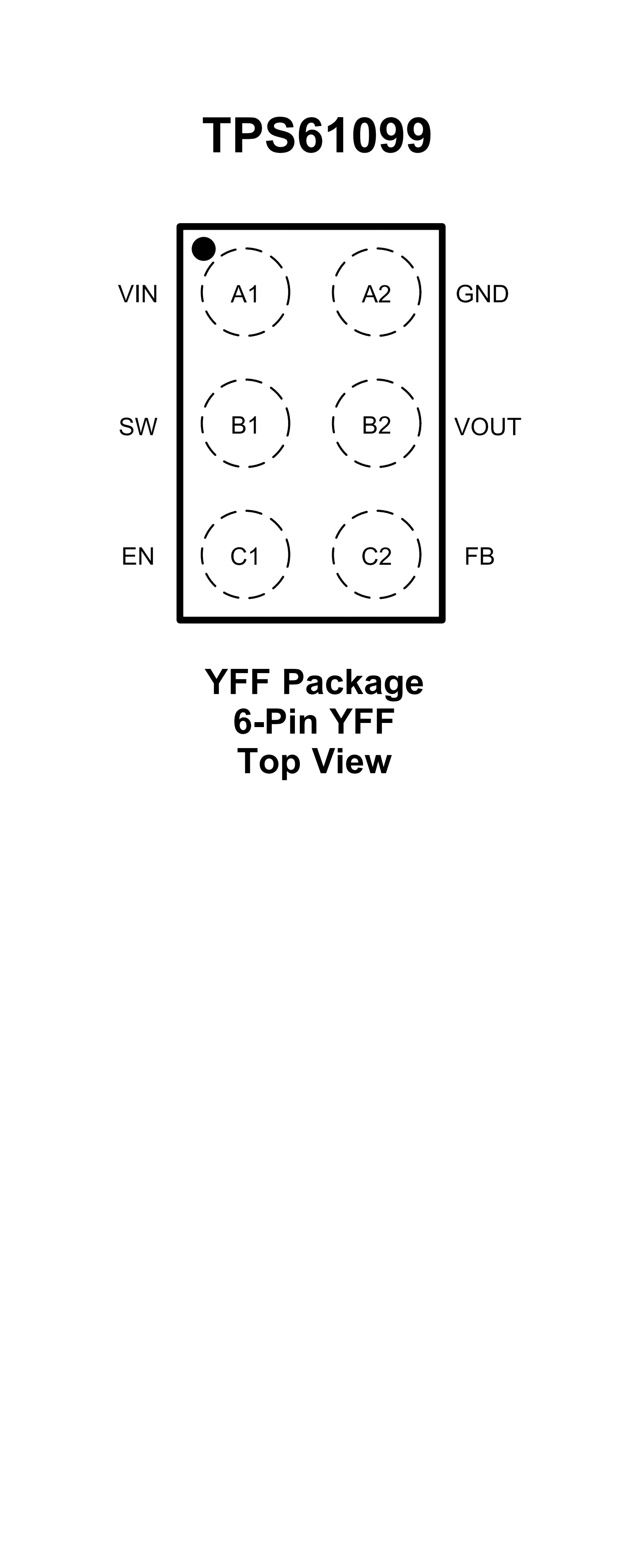

PIN CONFIGUTION
