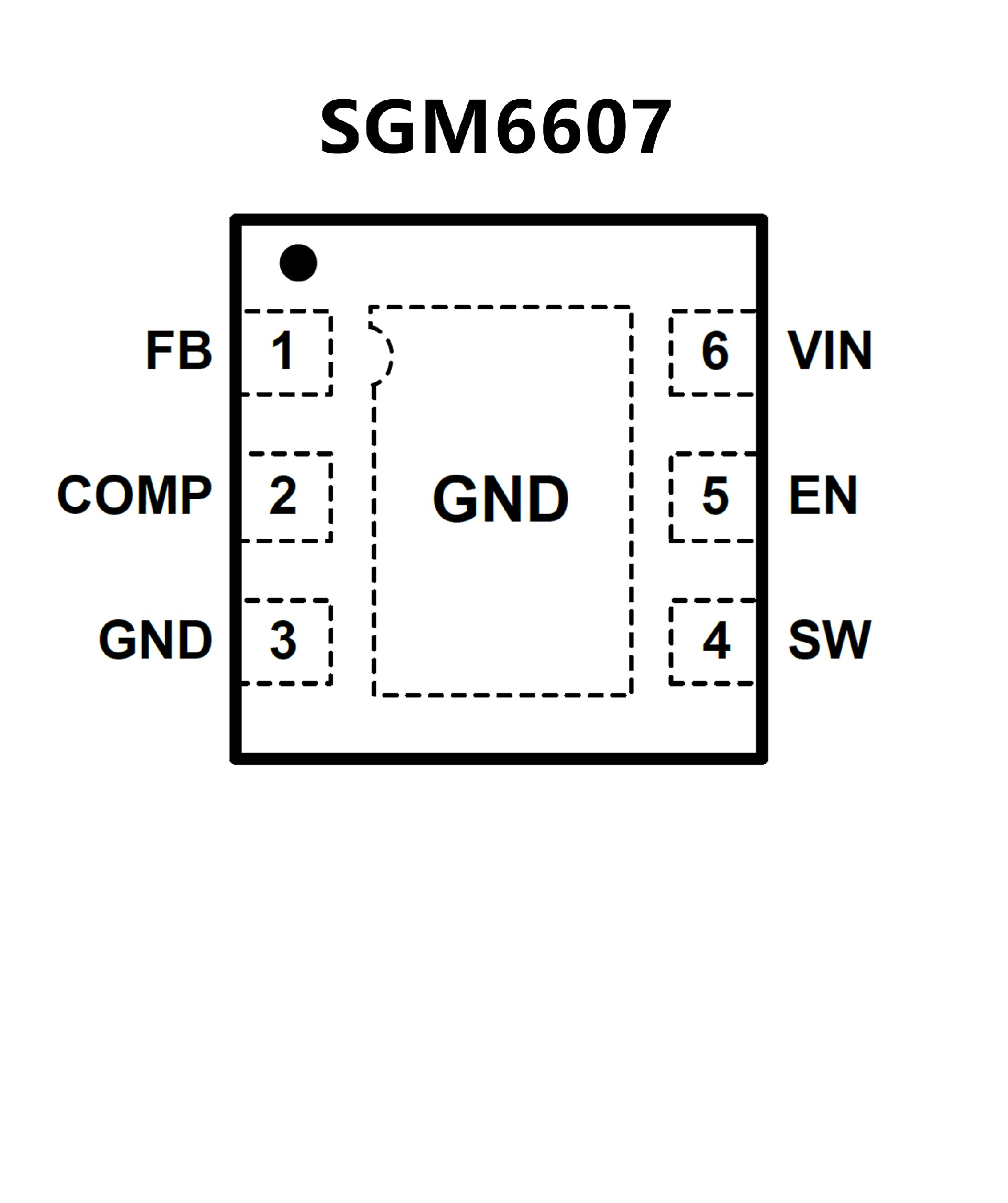

SGM6607YTDI6G.pdf? 3V to 20V Input Voltage Range
? High Output Voltage: Up to 38V
? 41V Over-Voltage Protection
? 1.1A Integrated Switch
? 1.2MHz Fixed Switching Frequency
? 12V at 300mA and 24V at 150mA from 5V Input
(TYP)
? Up to 93% Efficiency
? Skip-Switching for Light Load
? Built-In Soft-Start Function
? 500kΩ Pull-Down Resistor on EN Pin
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TDFN-2×2-6L and TSOT-23-6
Packages

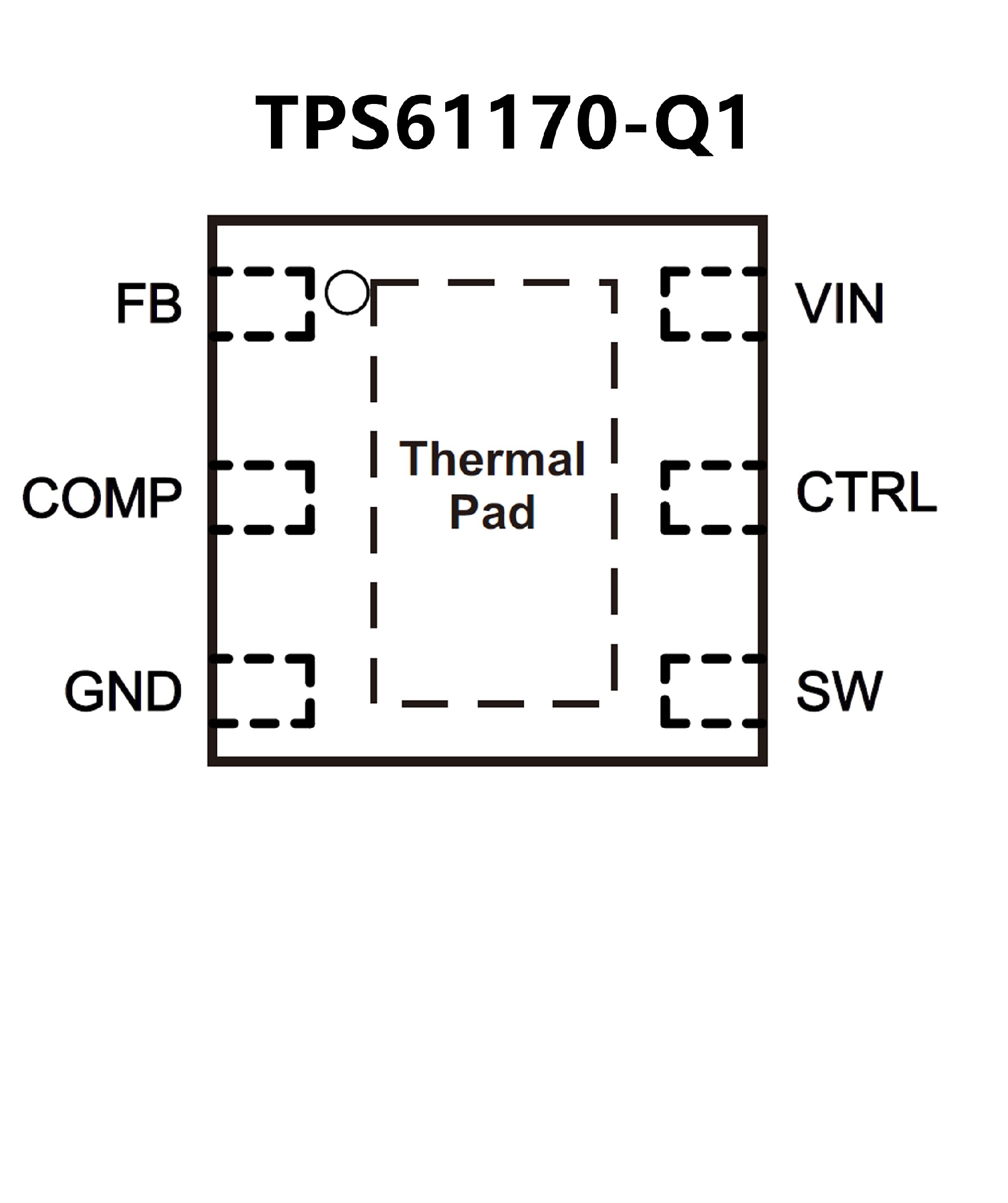

? Qualified for automotive applications
? Functional Safety-Capable
Documentation available to aid functional
safety system design
? 3-V to 18-V Input voltage range
? High output voltage: up to 38 V
? 1.2-A Integrated switch
? 1.2-MHz Fixed switching frequency
? 12 V at 300 mA and 24 V at 150 mA from 5-V
Input (typical)
? Up to 93% efficiency
? On-the-fly output voltage reprogramming
? Skip-switching cycle for output regulation at light
load
? Built-in soft start
? 6-Pin, 2-mm × 2-mm SON package
