Low-Power DC-DC Boost Converter, SGM6601 Replace LM2733.
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
? Input Voltage Range: 1.8V to 5.5V
? 38V (MAX) Adjustable Output Voltage
? 400mA Internal Switch Current
? 1MHz (MAX) Switching Frequency
? 20μA (TYP) Low Quiescent Current
? 0.1μA (TYP) Shutdown Current
? Internal Soft-Start Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSOT-23-5 and
TDFN-2×2-6L Packages

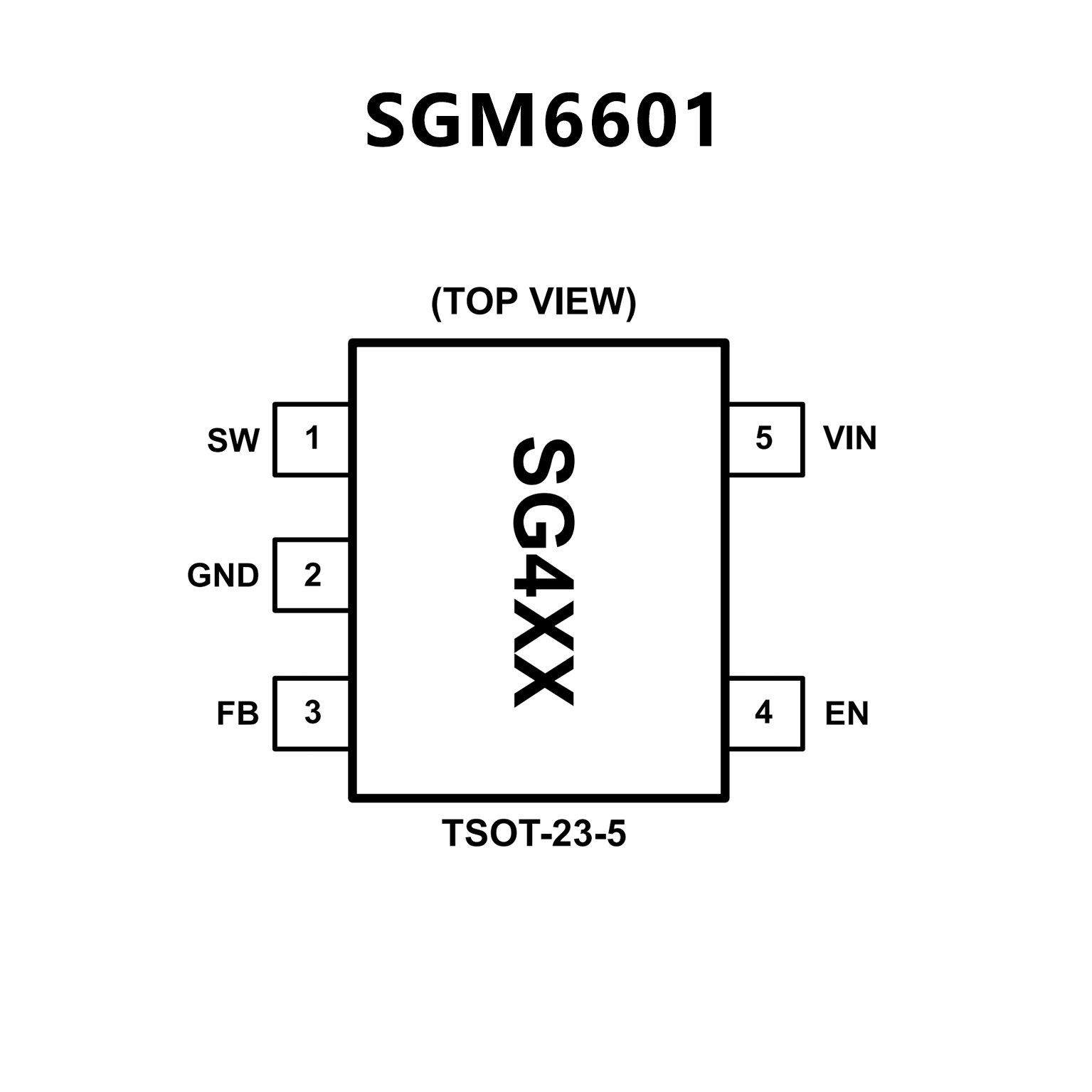

PIN CONFIGUTION
優勢替代
FEATURES
? 40-V DMOS FET switch
? 1.6-MHz (“X”), 0.6 MHz (“Y”) Switching frequency
? Low RDS(ON) DMOS FET
? Switch current up to 1 A
? Wide input voltage 2.7 V to 14 V
? Low shutdown current (< 1 μA)
? 5-Pin SOT-23 package
? Uses tiny capacitors and inductors
? Cycle-by-cycle current limiting
? Internally compensated

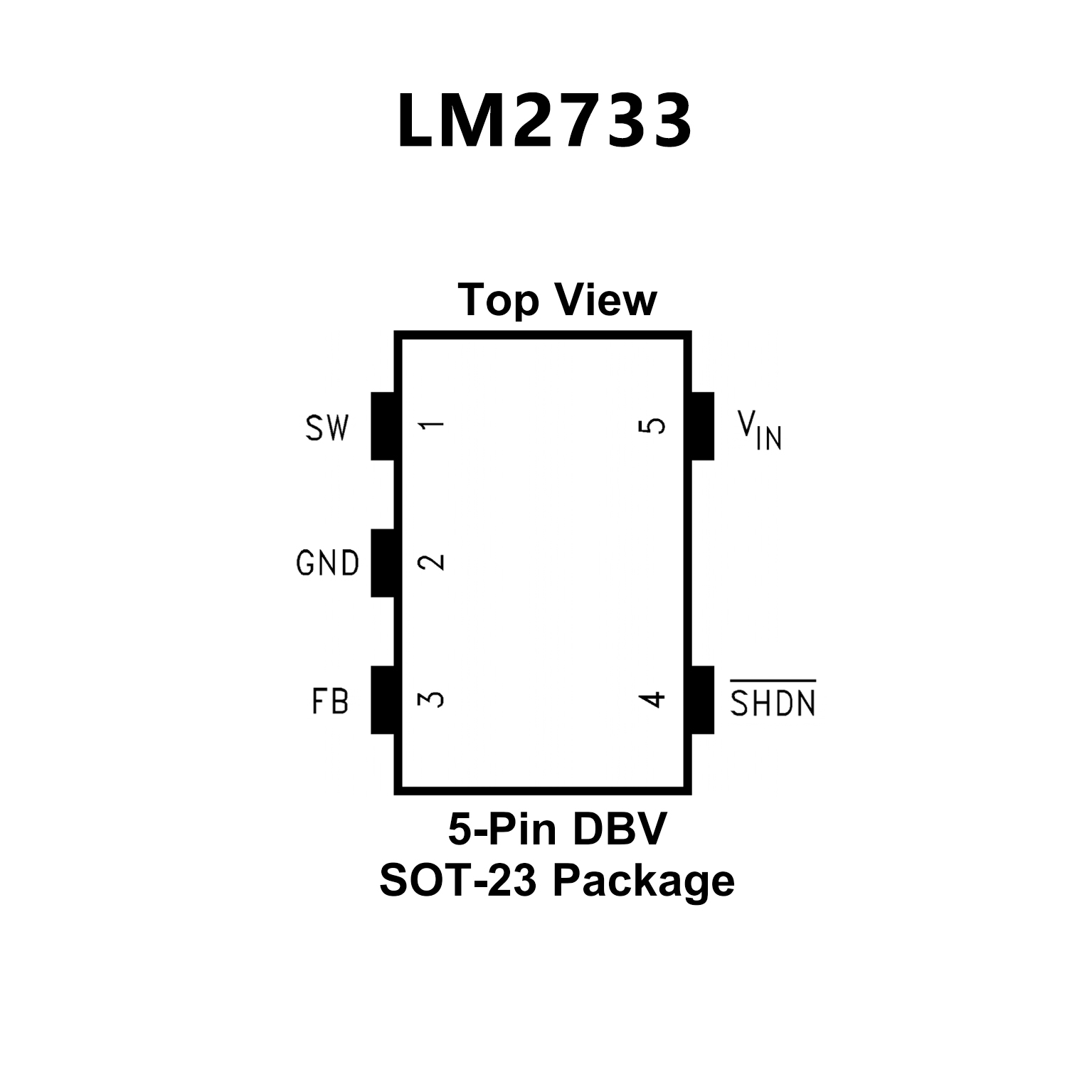

PIN CONFIGUTION
