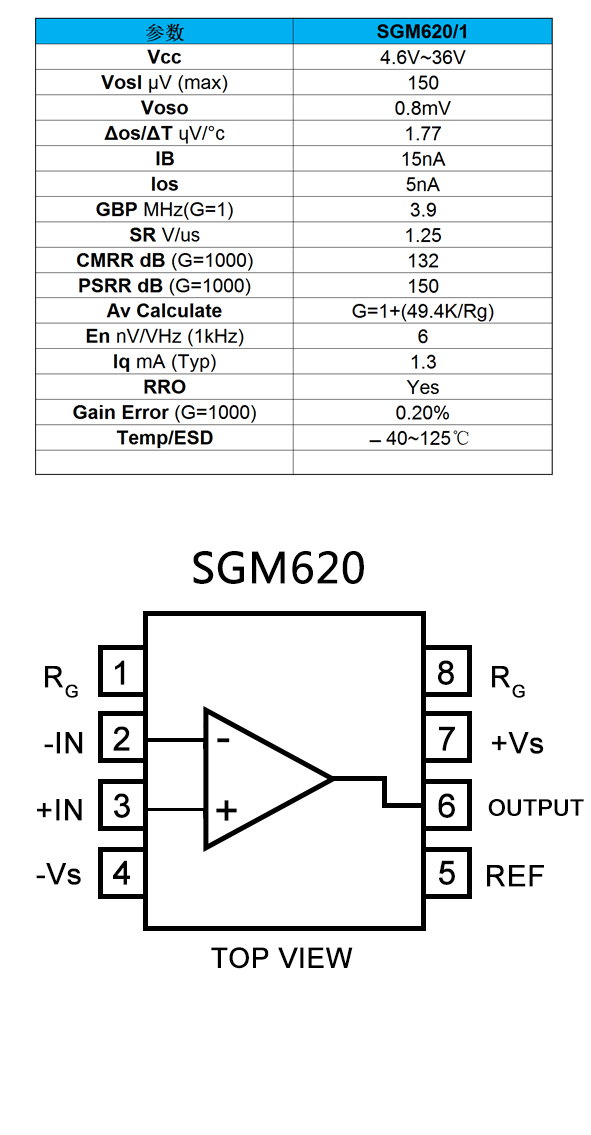

SGM620.pdf? Rail-to-Rail Output
? Supply range: +/-2.3V to +/-18V
? Low Power: lq 1.3mA TYP
? Input offset voltage: 50uV TYP
? lnput Bias current: 15nA TYP
? lnput offset voltage: 50uV TYP
? CMRR:92dB (TYP, G=10)
? 0.1-10Hz Voltage Noise: 0.4uVpp
? Bandwidth: 140kHz (G=100)
? Settling time to 0.01%: 10us(G=100)
? Gain=1+ 49.4kohm/Rg
? Operation Temp: -40-125℃
? SO-8 Package

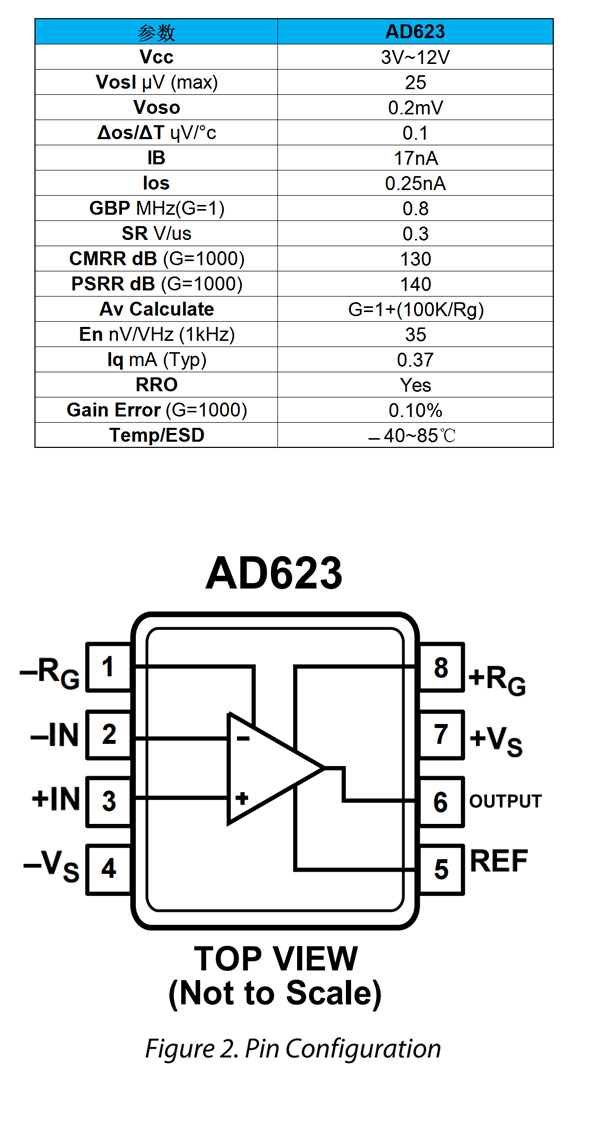

? Easy to use
? Rail-to-rail output swing
? Input voltage range extends 150 mV below
ground (single supply)
? Low power, 550 μA maximum quiescent current
? Gain set with one external resistor
Gain range: 1 to 1000
? High accuracy dc performance
0.10% gain error (G = 1)
0.35% gain error (G > 1)
? Noise: 35 nV/√Hz RTI noise at 1 kHz
? Optimal dynamic specifications
800 kHz bandwidth (G = 1)
20 μs settling time to 0.01% (G = 10)
