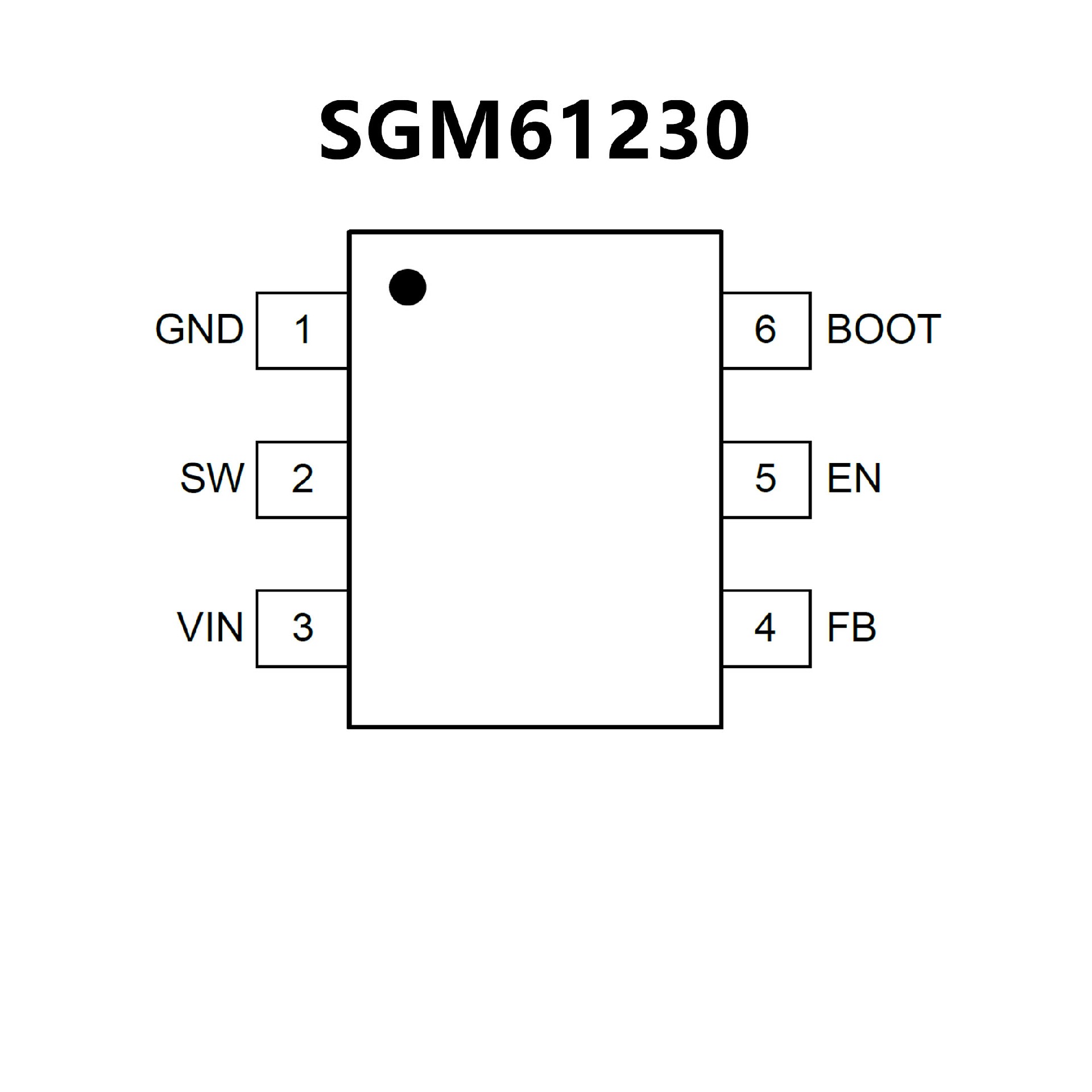

SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package
? Wide 4.7V-to-16V Operating Input Range
? 163m?/86m? Low-RDS(ON) Internal Power MOSFETs
? Proprietary Switching-Loss–Reduction Technique
? High-Efficiency Synchronous-Mode Operation
? Fixed 500kHz Switching Frequency
? Internal AAM Power-Save Mode for High
Efficiency at Light Load
? Internal Soft-Start
? Over-Current Protection and Hiccup
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in a 6-pin TSOT-23 package
