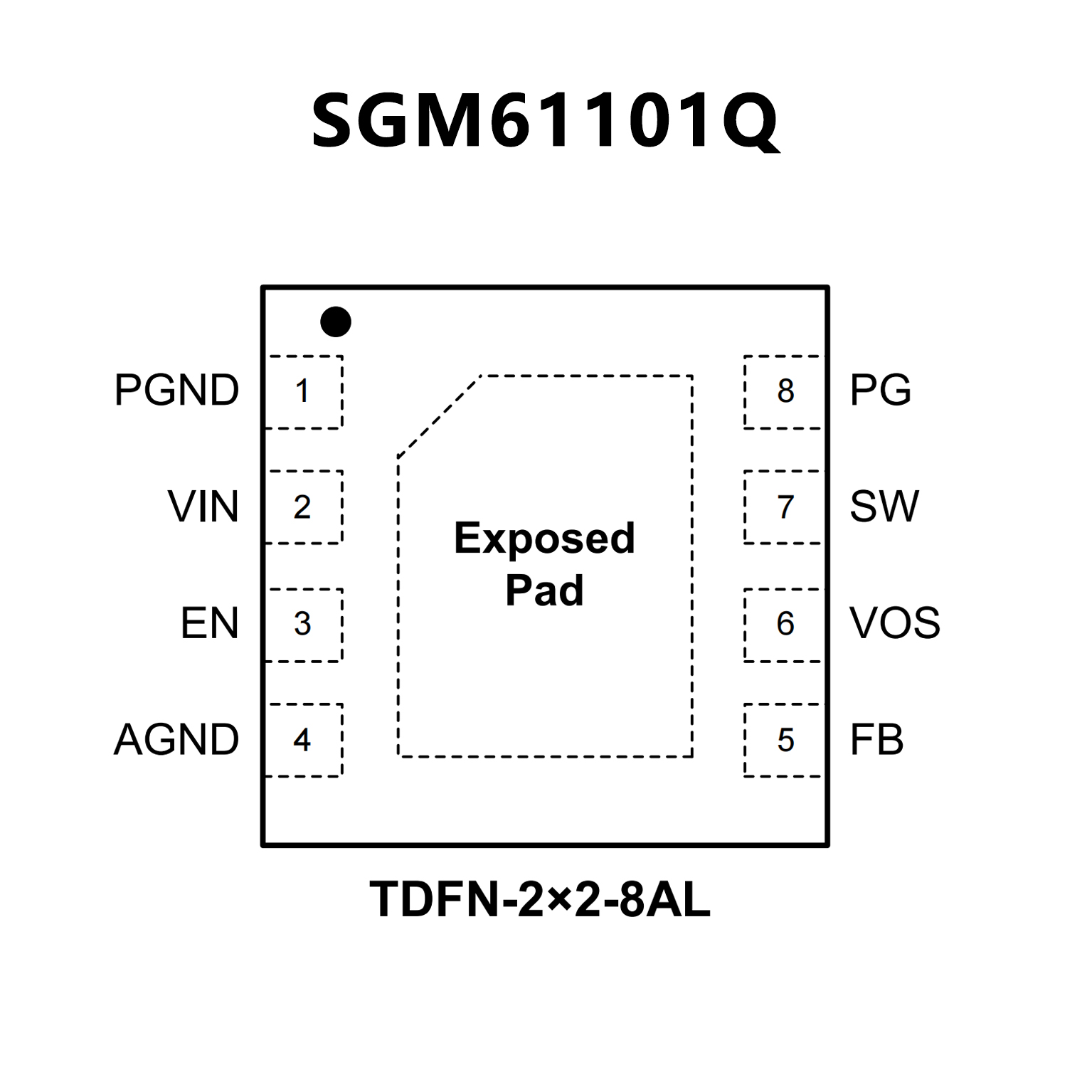

SGM61101Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? AHP-COT Control
? 3V to 17V Input Voltage Range
? Support 0.6A Output Current
? 0.9V to 5.5V Adjustable Output Voltage
? Fixed Output Voltage Version: 3.3V
? Internal Compensation
? 170μs (TYP) Soft-Start Time
? Pre-biased Function during Soft Startup
? Power-Save Mode with Seamless Transition
? 22μA (TYP) Quiescent Current
? Power-Good Output
? 100% Duty Cycle Mode
? Under-Voltage Lockout (UVLO)
? Thermal Shutdown Protection
? Short-Circuit Protection
? Over-Temperature Protection
? Available in a Green TDFN-2×2-8AL Package
? DCS-Control? topology
? Qualified for automotive applications
? AEC-Q100 qualified with the following results:
– Device temperature grade: –40°C to 125°C
operating junction temperature range
– Device HBM ESD classification level H2
– Device CDM ESD classification level C4B
? Functional Safety-Capable
– Documentation available to aid functional
safety system design
? Input voltage range: 3 V to 17 V
? Up to 500-mA output current
? Adjustable output voltage from 0.9 V to 6 V
? Fixed output voltage versions
? Seamless power save mode transition
? Typically 17-μA quiescent current
? Power-good output
? 100% Duty cycle mode
? Short circuit protection
? Overtemperature protection

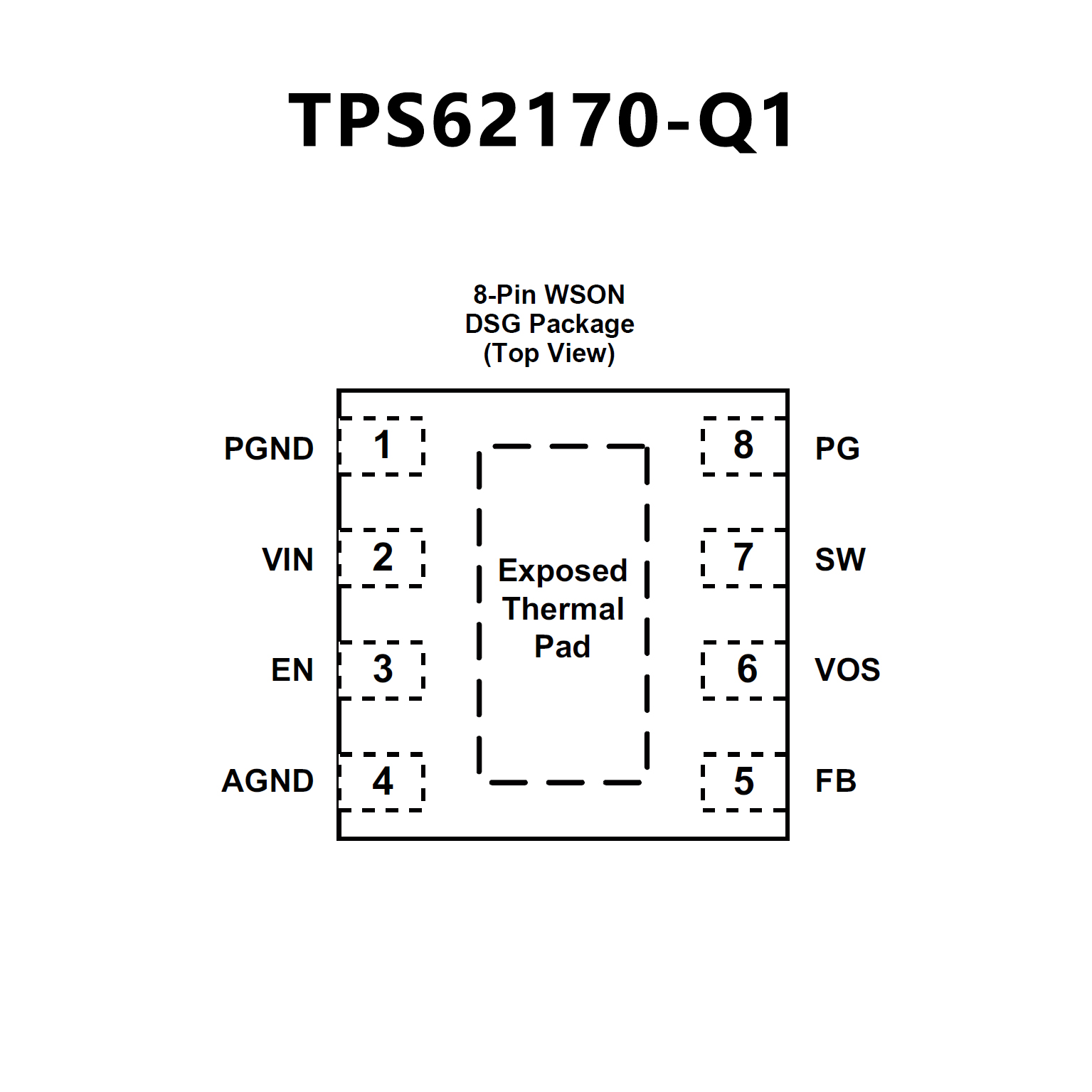

? Pin-to-pin compatible with TPS62160-Q1
? Available in a 2 × 2 mm, WSON-8 package
? Create a custom design using the TPS62170-Q1
with the WEBENCH? power designer
