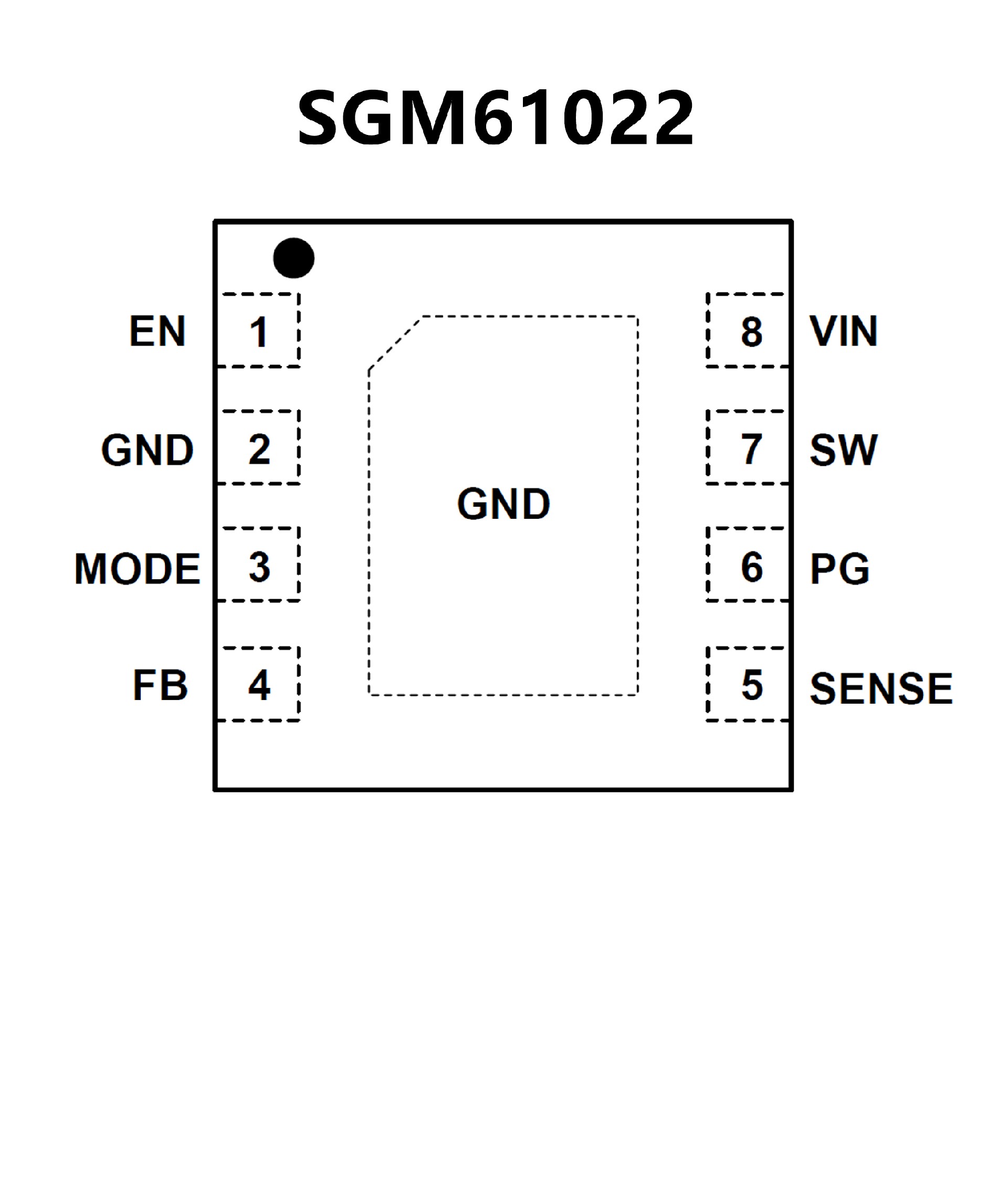

SGM61022.pdf? Input Voltage Range: 2.3V to 5.5V
? AHP-COT Architecture
? Output Current:
SGM61012: 1.2A
SGM61022: 2A
? 9μA Ultra-Low Quiescent Current
in Deep Sleep Mode
? Fast Transient Regulation
? 100% Duty Cycle Capability
? High-Efficiency Deep Sleep
Mode under Light Load
? Output Discharge
? Short-Circuit Protection
? Power Good Output
? Thermal Shutdown
? Available in a Green
TDFN-2×2-8AL Package
? DCS-Control? Architecture
for Fast Transient Regulation

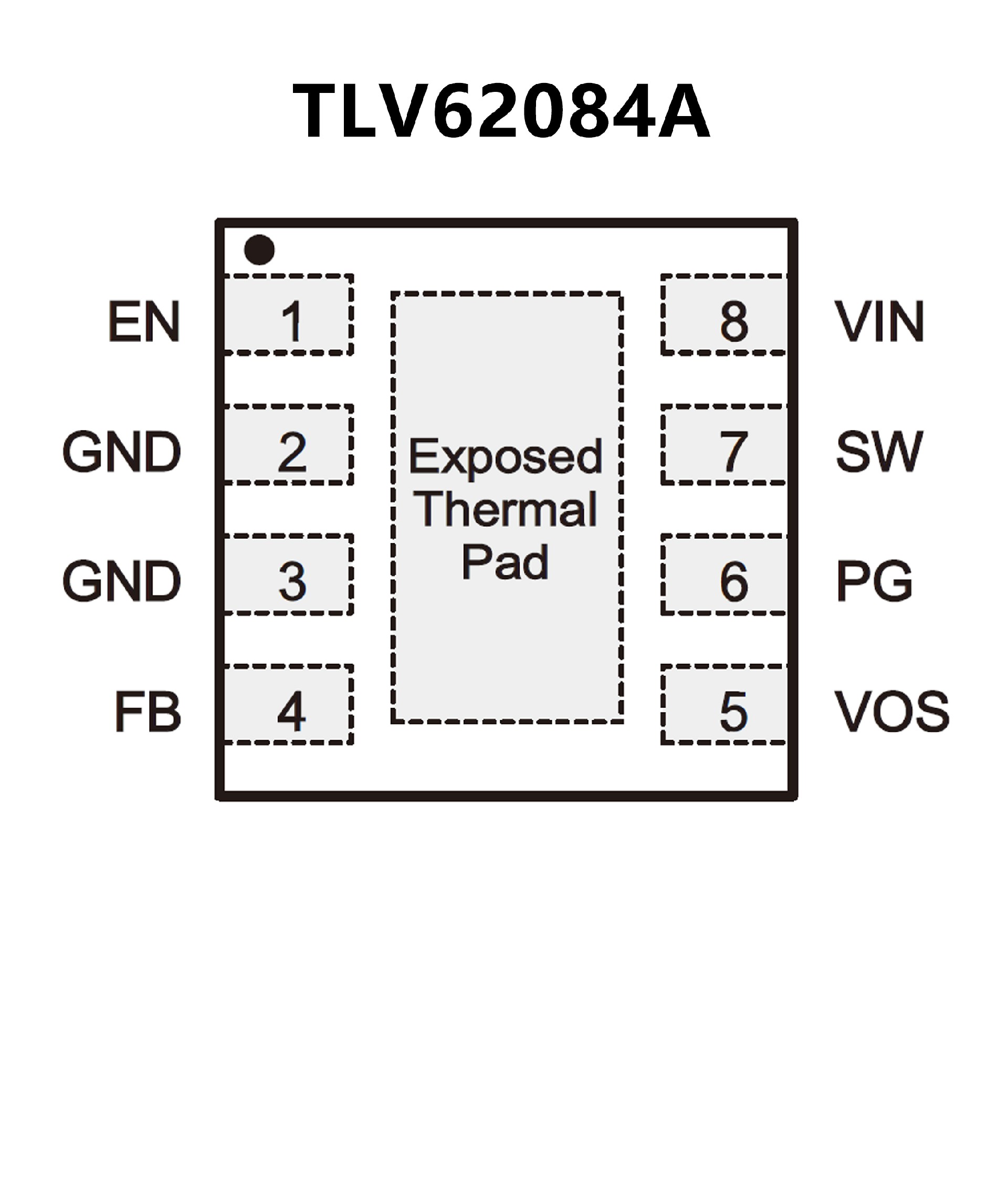

? 2.5 to 6-V Input Voltage Range (TLV62080)
? 2.7 to 6-V Input Voltage Range (TLV62084,
TLV62084A)
? 100% Duty Cycle for Lowest Dropout
? Power Save Mode for Light Load Efficiency
? Output Discharge Function
? Power Good Output
? Thermal Shutdown
? Available in 2 mm × 2 mm
8-Terminal WSON Package
? For Improved Features Set, see the TPS62080
? Create a Custom Design Using the TLV6208x
With the WEBENCH? Power Designer
