SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

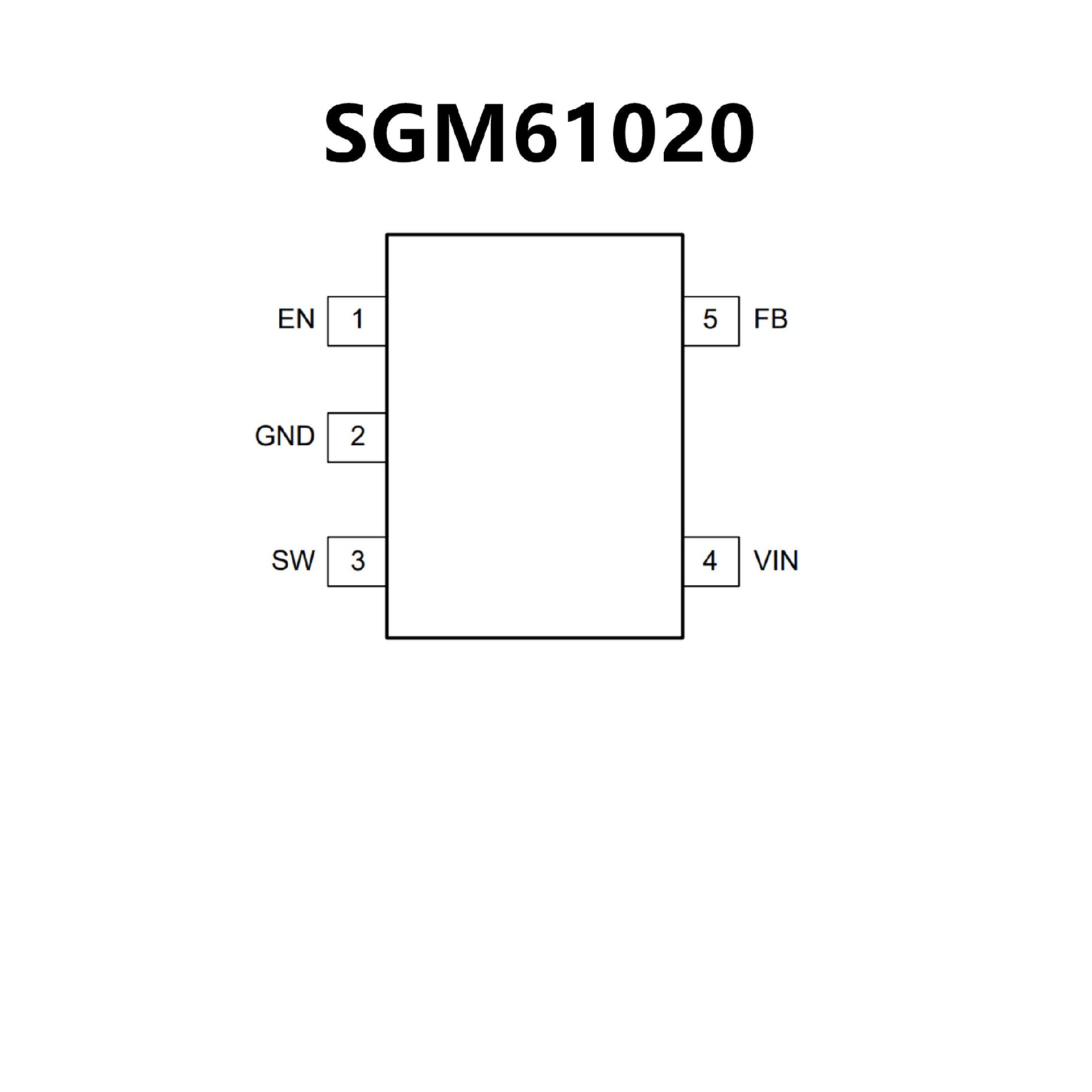

SGM61020: Available in Green SOT-23-5
and SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6
Package

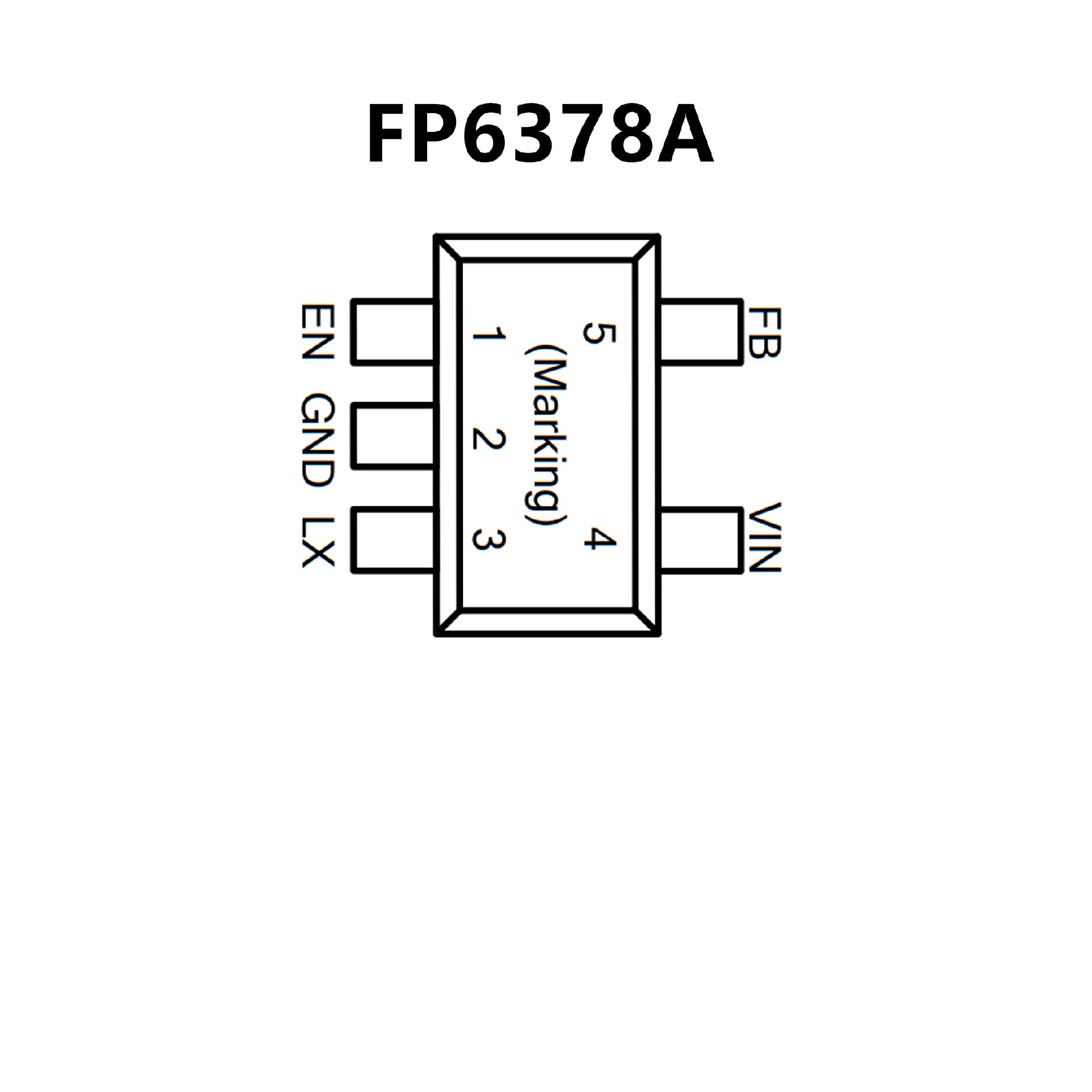

? Low RDS(ON) for Internal Switch
(Top/Bottom):180/100m?
? 2.5V~5.5V Input Voltage Range
? 2A Output Current
? 1MHz Switching Frequency Minimizes
the External Components
? Internal Soft-Start Limits the Inrush Current
? Internal Compensation Function
? 100% Dropout Operation
? Power Good Indicator Output (SOT-23-6 only)
? RoHS Compliant and Halogen Free
? SOT-23-5 and SOT-23-6 Packages
