SGM61020XN5G.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

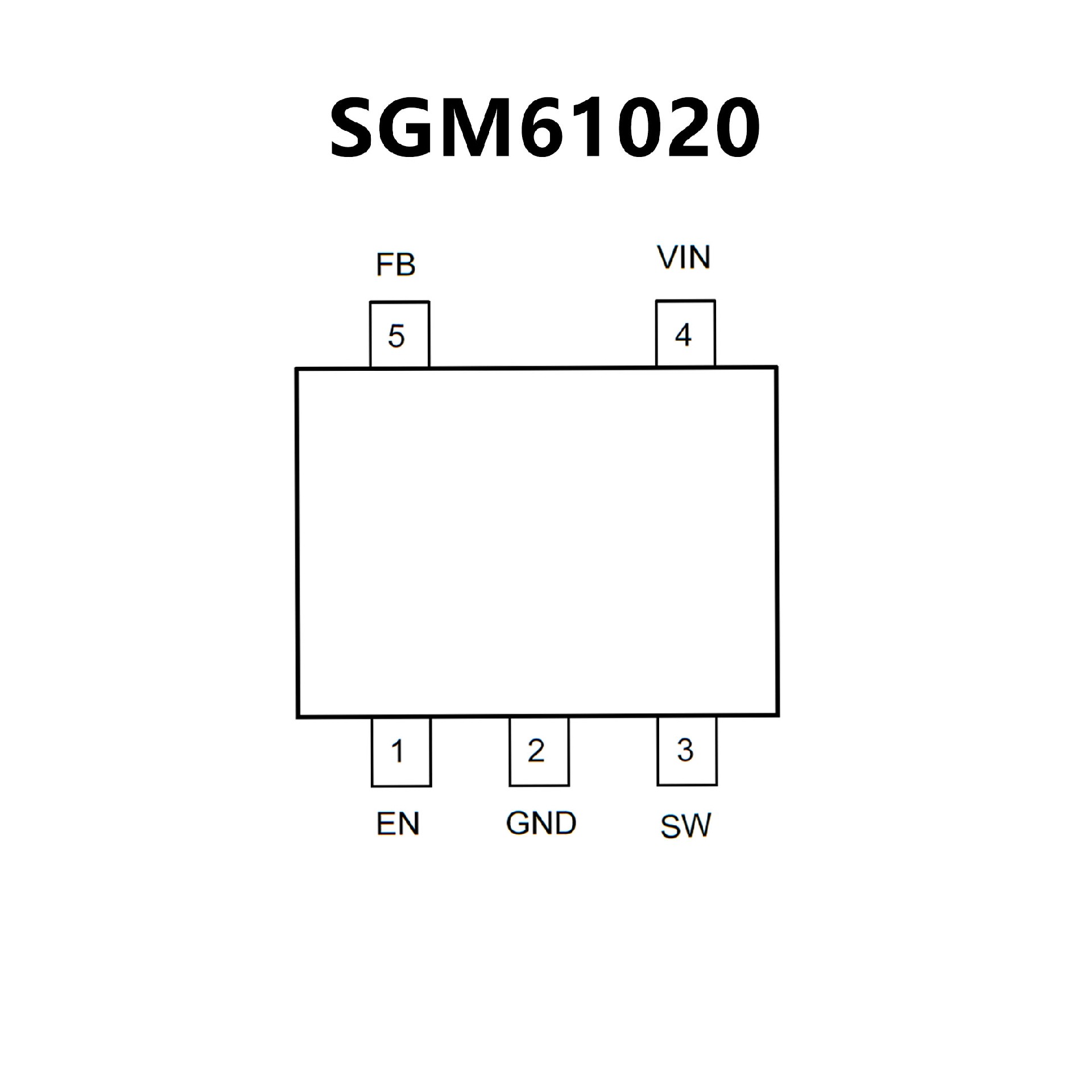

SGM61020: Available in Green SOT-23-5
andSOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6Package
? Efficiency Up to 95%
? 2A Converter With Built-In 100m?/70m? Low
RDS(ON) Power FETs
? Input Supply Voltage Range : 2.7V to 6V
? Output Voltage Range : 0.6V to 3.4V
? Current Mode Constant On-Time (CMCOT)
Control
? Ultrafast Transient Response
? No Needs For External Compensations
? Optimized for Low-ESR Ceramic Output
Capacitors
? 0.6V ?1.2% High-Accuracy Feedback Reference
Voltage
? LS FETs Protection for Robust Over-Current
Protection
? Power Saving in Light Load
? Fixed Switching Frequency : 1MHz (typ.)
? Internally Soft-Start Function
? Monotonic Start-Up for Pre-Biased Output
? Input Under-Voltage Lockout (UVLO)
? Output Under-Voltage Protection (UVP) with
Hiccup Mode
? Power Good Indication in SOT-23-6 Package
? Enable Control

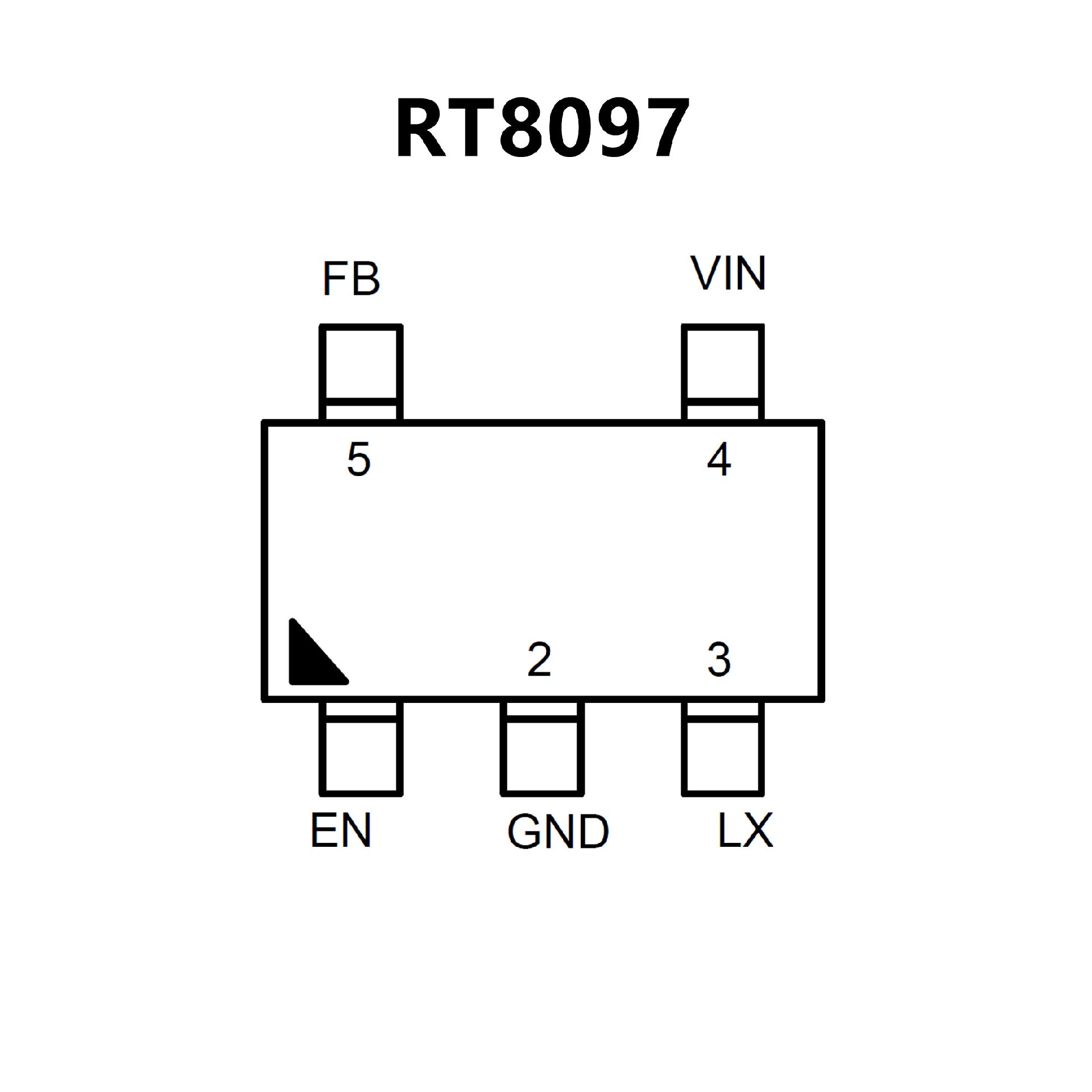

? Available In SOT-23-5 and SOT-23-6 Packages
