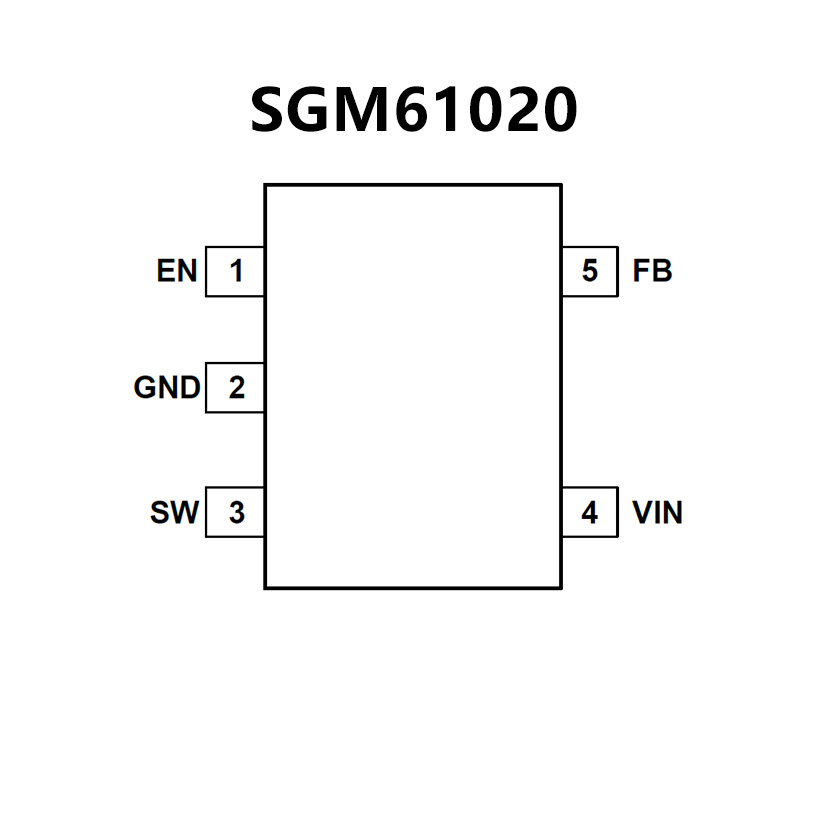

SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM61020: Available in Green SOT-23-5 and
SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6
Package

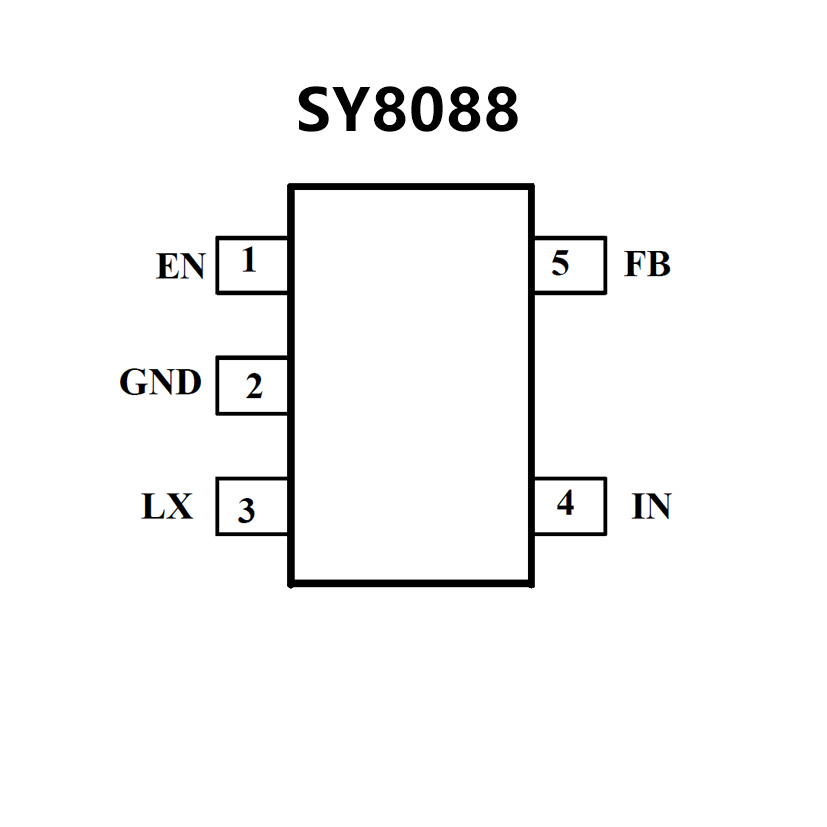

? Low RDS(ON) for internal switches (top/bottom)
260m /170m
? 2.5~5.5V input voltage range
? 40 A typical quiescent current
? High light load efficiency
? High switching frequency 1.5MHz minimizes the
external components
? Internal soft-start limits the inrush current
? 100% dropout operation
? RoHS Compliant and Halogen Free
? Compact package: SOT23-5
