Dual Low-Noise Operational Amplifier, SGM5532 Replace NE5532.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
? Equivalent Input Noise Voltage:
5nV/ Hz (TYP) at 1kHz
? Unity-Gain Bandwidth: 8.5MHz (TYP)
? Common Mode Rejection Ratio: 140dB (TYP)
? High DC Voltage Gain: 140dB (TYP)
? High Slew Rate: 18V/μs (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

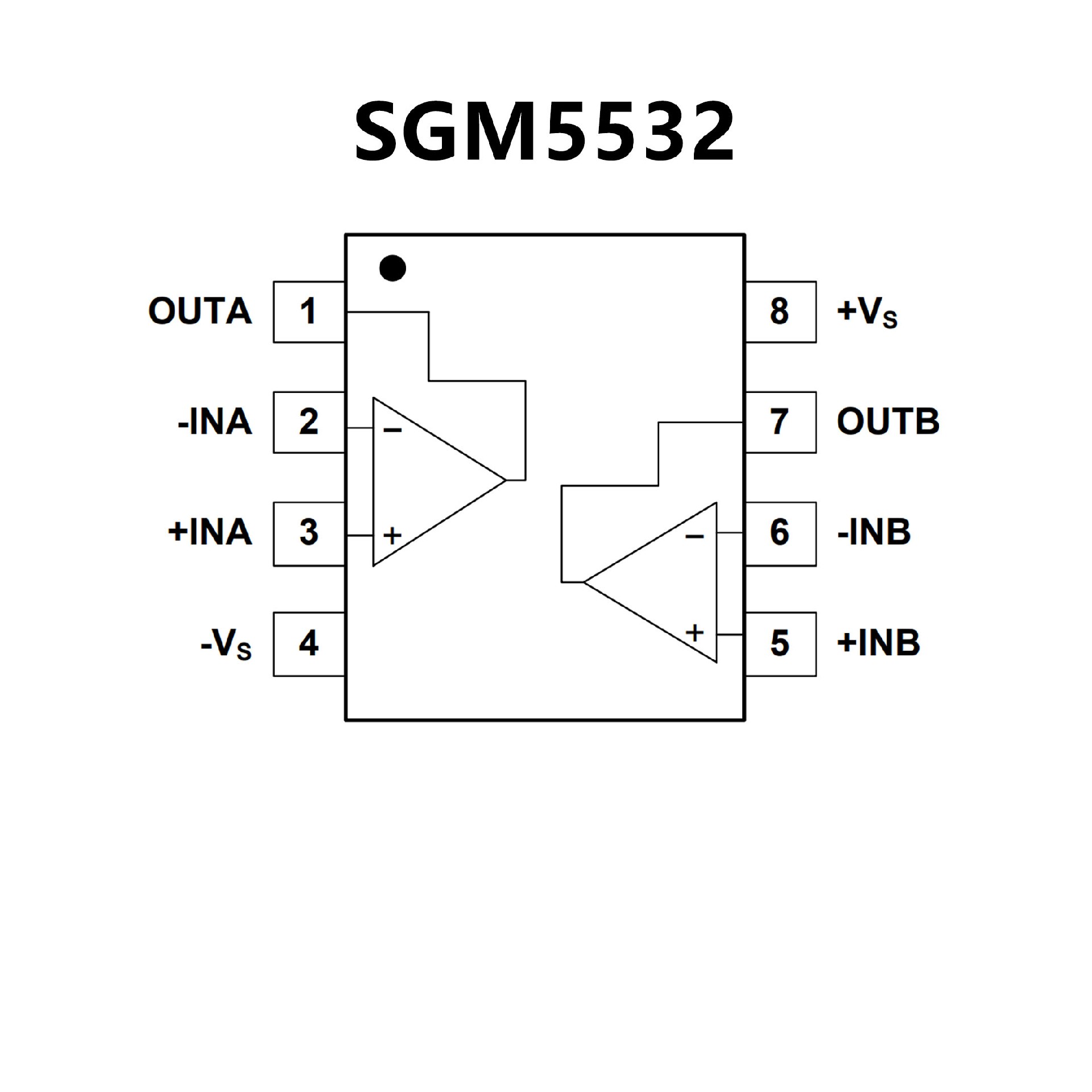

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Small-Signal Bandwidth: 10 MHz
? Output Drive Capability: 600Ω, 10 VRMS
? Input Noise Voltage: 5.0 nV Hz (Typical)
? DC Voltage Gain: 50000
? AC Voltage Gain: 2200 at 10 kHz
? Power Bandwidth: 140 kHz
? Slew Rate: 9.0 V/μs
? Large Supply Voltage Range:±3.0 to±20 V
? Compensated for Unity Gain
? Pb?Free Packages are Available

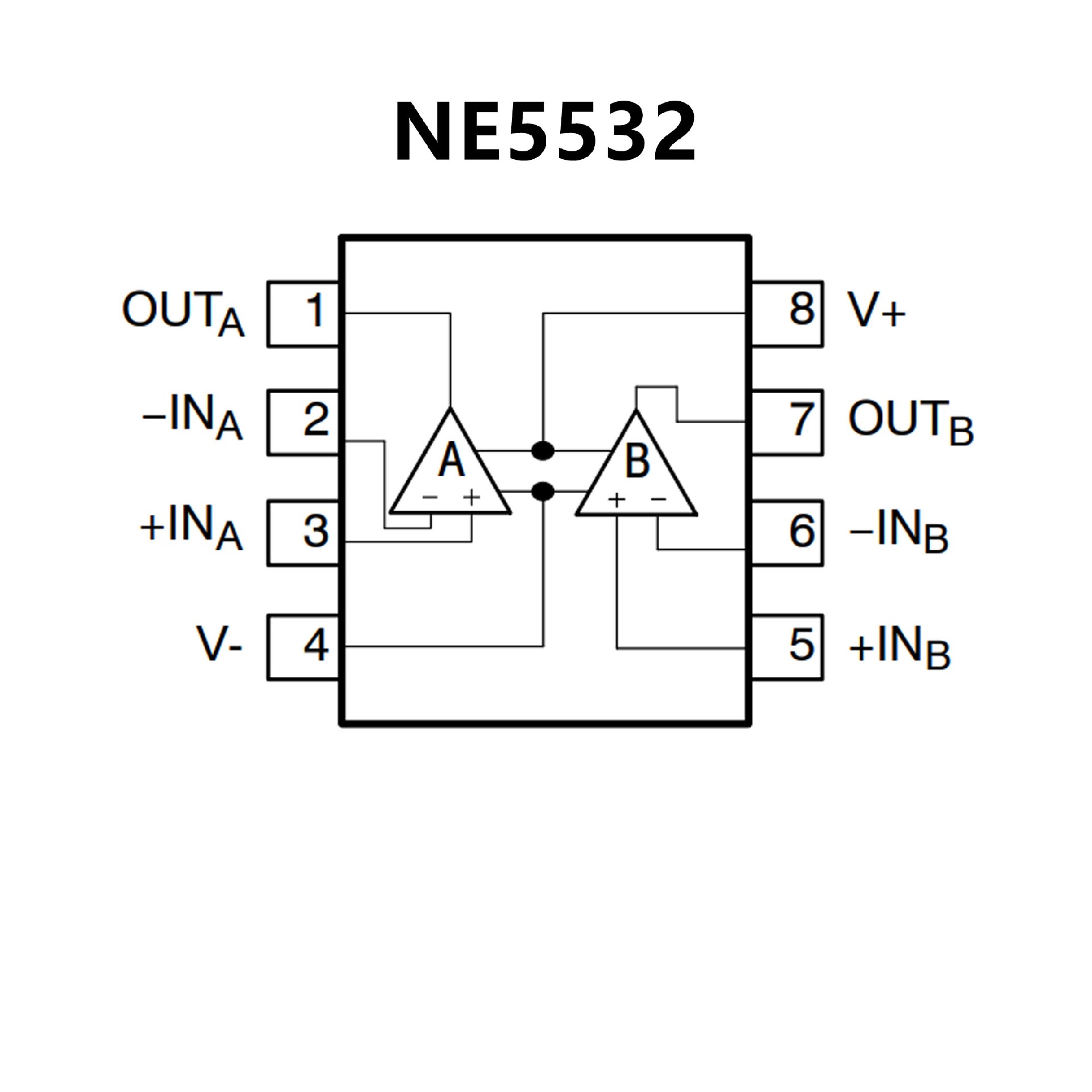

PIN CONFIGUTION
