16-Bit, Serial Input, Voltage-Output Digital-to-Analog Converter, SGM5353 Replace AD5541.
SGM5353-16
SGM5353-16.pdf
SGM5353-16.pdfFEATURES
? 16-Bit DAC, Monotonicity Guaranteed by Design
? Single-Supply Operation: 3V and 5V
? Settling Time: 1.5μs (TYP)
? Support Unbuffered Voltage-Output Capability
? Power-On Reset to Zero-Scale
? Low Power Consumption: 0.39mW (TYP)
? Low Glitch Impulse: 1.2nV-s
? SPI-Compatible Serial Interface
? Available in a Green SOIC-8 Package

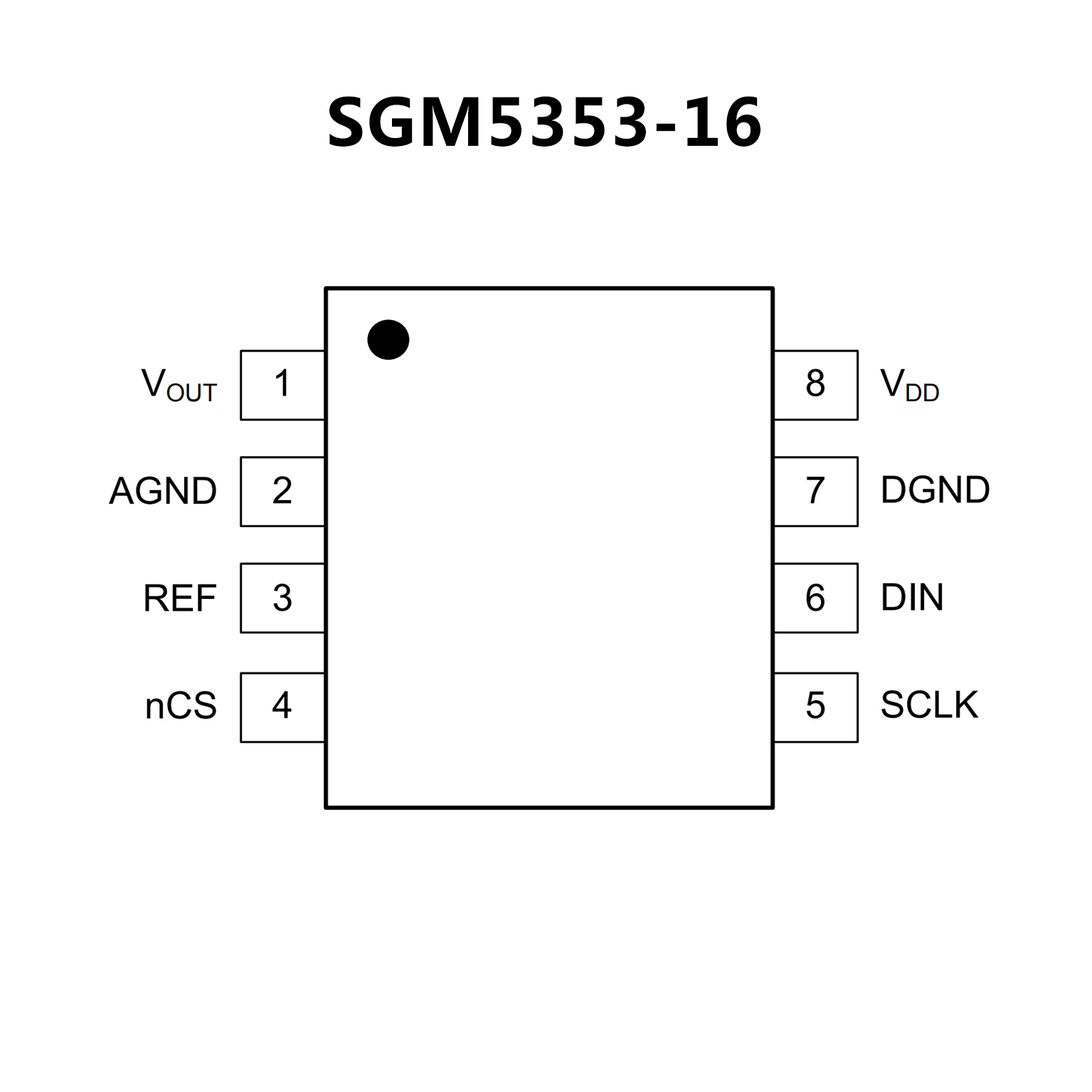

PIN CONFIGUTION
優勢替代
FEATURES
? Full 16-bit performance
? 3V and 5 V single-supply operation
? Low 0.625 mW power dissipation
? 1μs settling time
? Unbuffered voltage output capable of driving 60 k?
? loads directly
? SPI-/QSPI-/MICROWIRE-compatible interface standards
? Power-on reset clears DAC output to 0 V (unipolar mode)
? 5 kV HBM ESD classification
? Low glitch: 1.1 nV-sec

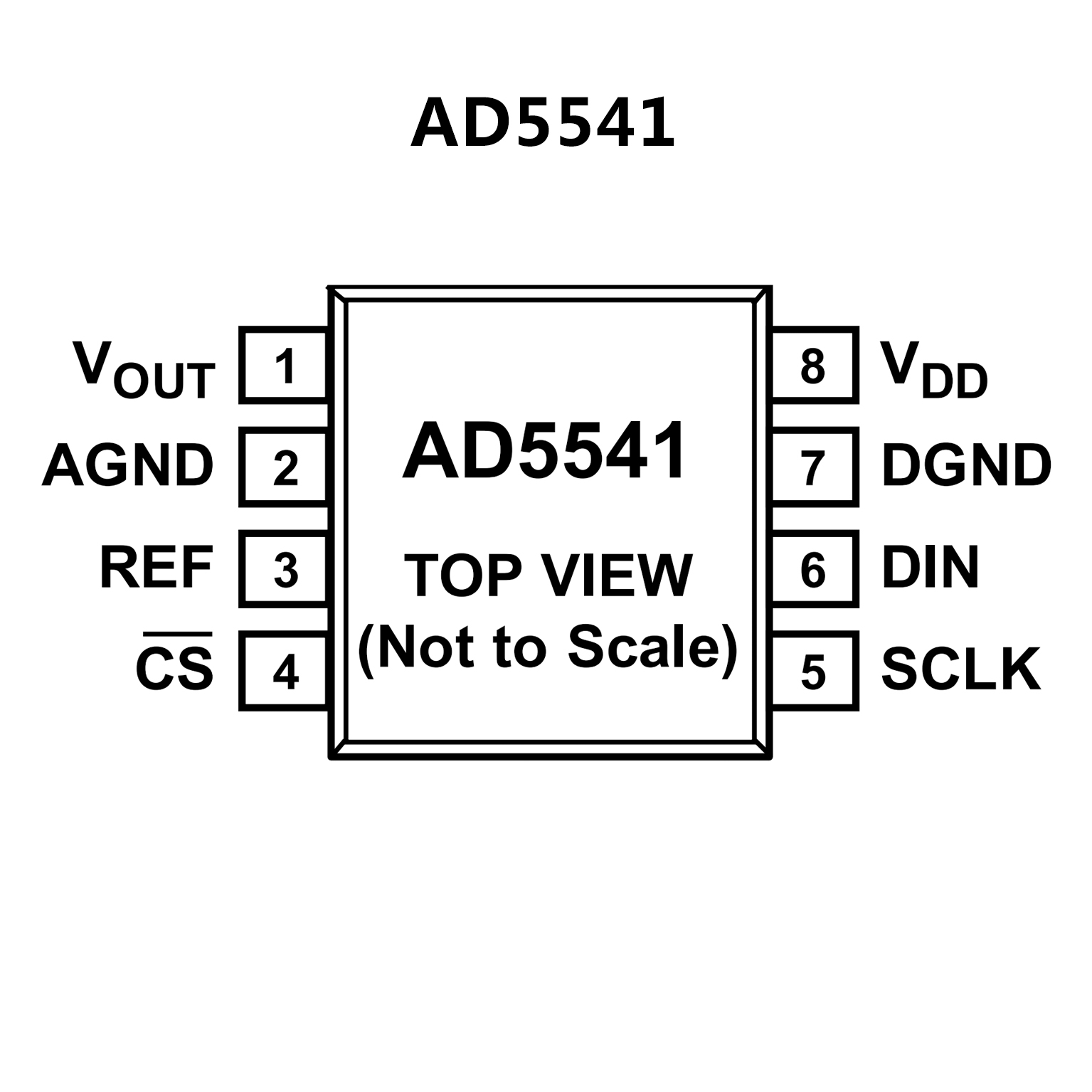

PIN CONFIGUTION
