SGM5348-12.pdf? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 12-Bit DAC
? Built-in Rail-to-Rail Output Amplifier:
Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
0.6μA (TYP) ICC for Power-Down Mode
? 0.1% (TYP) Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: Up to 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.8V to 5.5V
? Dual Reference Voltages with Range of 0.5V to VCC
? -40℃ to +125℃ Operating Temperature Range

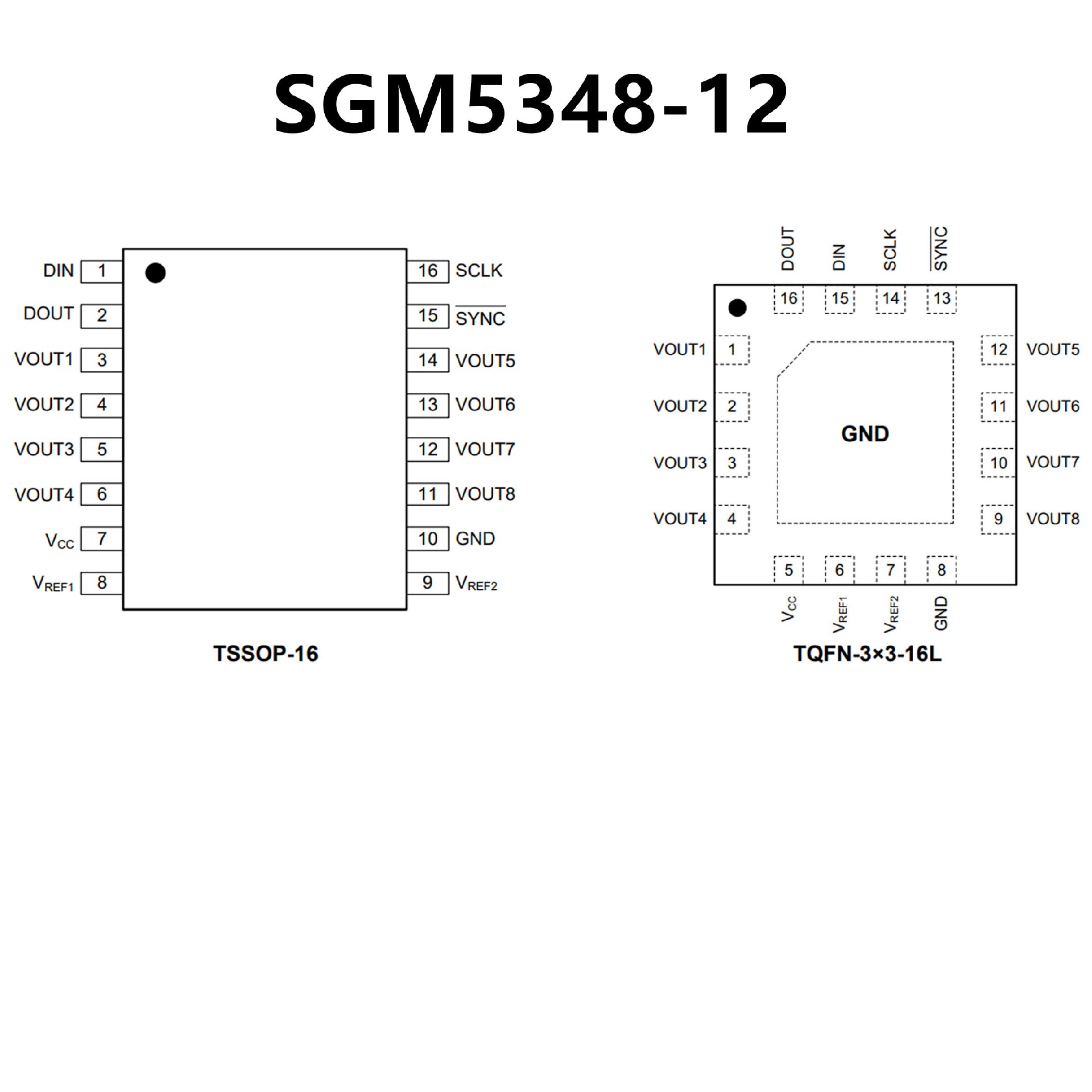

? Available in Green TSSOP-16 and TQFN-3×3-16L
Packages

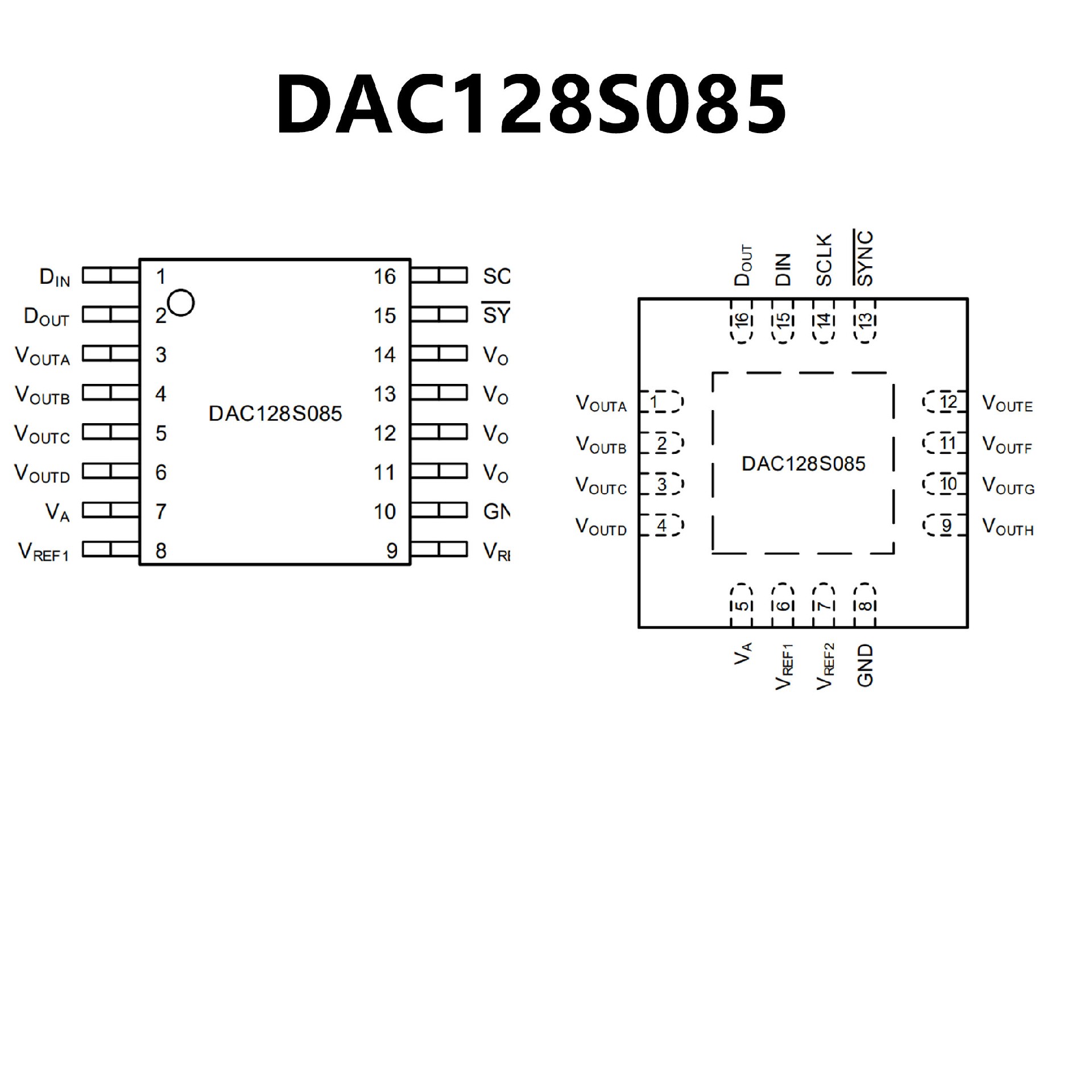

? Ensured Monotonicity
? Low Power Operation
? Rail-to-Rail Voltage Output
? Daisy-Chain Capability
? Power-on Reset to 0 V
? Simultaneous Output Updating
? Individual Channel Power-Down Capability
? Wide Power Supply Range (2.7 V to 5.5 V)
? Dual Reference Voltages With Range of 0.5 V to VA
? Operating Temperature Range of ?40°C to 125°C
? Smallest Package in the Industry
? Resolution 12 Bits
? INL ±8 LSB (Maximum)
? DNL 0.75 / ?0.4 LSB (Maximum)
? Settling Time 8.5 μs (Maximum)
? Zero Code Error 15 mV (Maximum)
? Full-Scale Error ?0.75 %FSR (Maximum)
? Supply Power
1.95 mW (3 V) / 4.85 mW (5 V) Typical
Power Down 0.3 μW (3 V) / 1 μW (5 V) Typical
