SGM5200Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? 12-Bit Resolution
? 16 Channels
? Sampling Rate: Up to 1MHz
? Supply Voltage Ranges:
Analog Supply: 2.7V to 5.25V
Digital Supply: 1.7V to 5.25V
? Two Software Selectable Unipolar Input Ranges:
Range 1: 0V to VREF
Range 2: 0V to 2 × VREF
? Support Auto and Manual Channel Selections
? Individually Configurable GPIOs Function: Four GPIOs
? 20MHz SPI-Compatible Serial Interface
? Power-Down Current: 1.4μA (TYP)
? Input Bandwidth: 45MHz (TYP) at -3dB
? Typical Power Consumption:
24mW at 1MSPS (VA = 5V, VBD = 3V)
? Available in a Green TSSOP-38 Package
? Qualified for Automotive Applications
? Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
? Device HBM ESD Classification Level H2
? Device CDM ESD Classification Level C4B

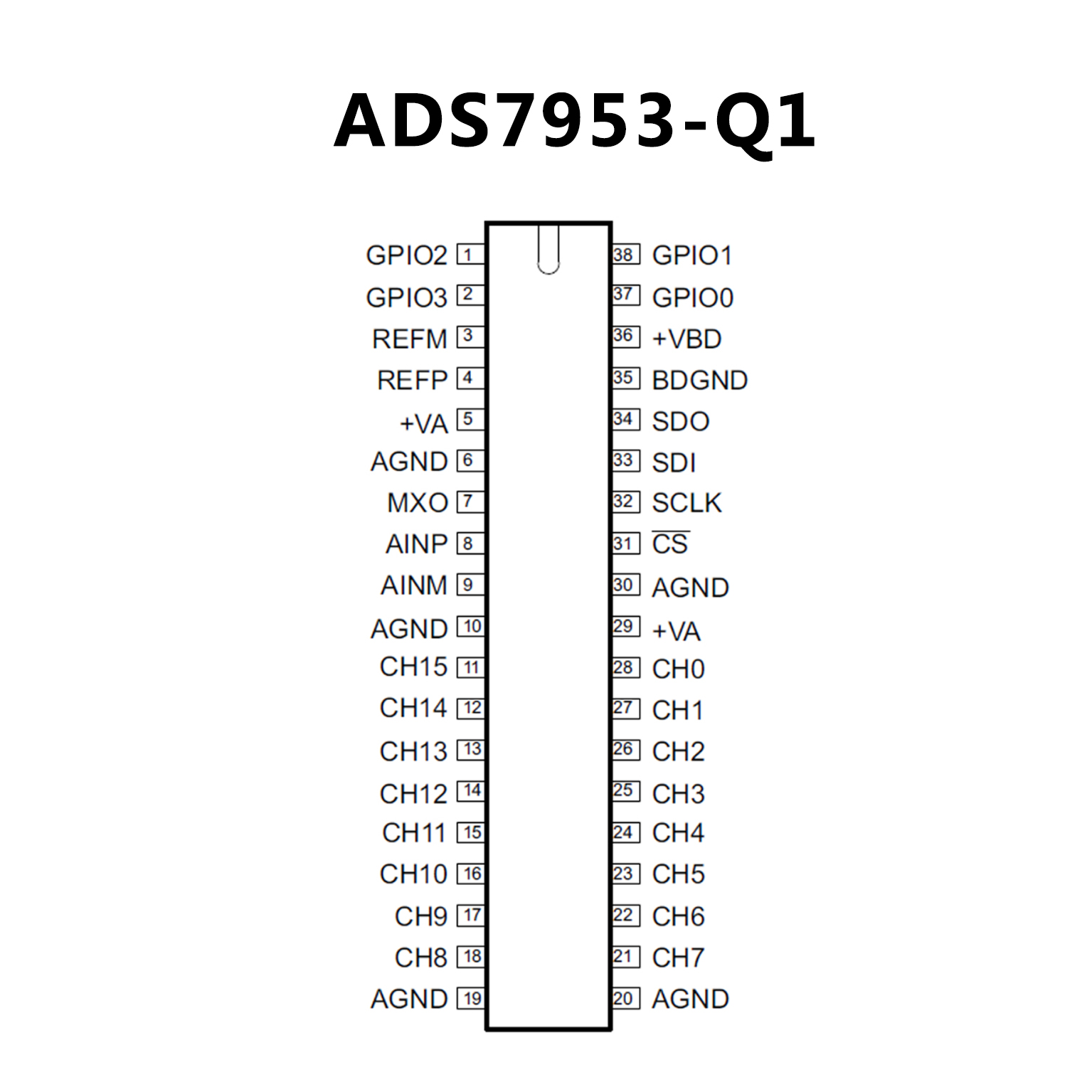

? 8-, 10-, and 12-Bit Resolution
? 4-, 8-, 12-Channel Devices Share 16-Channel
? 1-MHz Sample-Rate Serial Devices
? Analog Supply Range: 2.7 V to 5.25 V
? I/O Supply Range: 1.7 V to 5.25 V
? Two SW-Selectable Unipolar, Input Ranges:
? (0 V to 2.5 V) or (0 V to 5 V)
? Auto and Manual Modes for Channel Selection
? Two Programmable Alarm Levels per Channel
? Four Individually Configurable GPIOs
? Typical Power Dissipation: 14.5 mW
(V(+VA) = 5 V, V(+VBD) = 3 V) at 1 MSPS
? Power-Down Current (1 μA)
? 30-Pin and 38-Pin TSSOP Package
