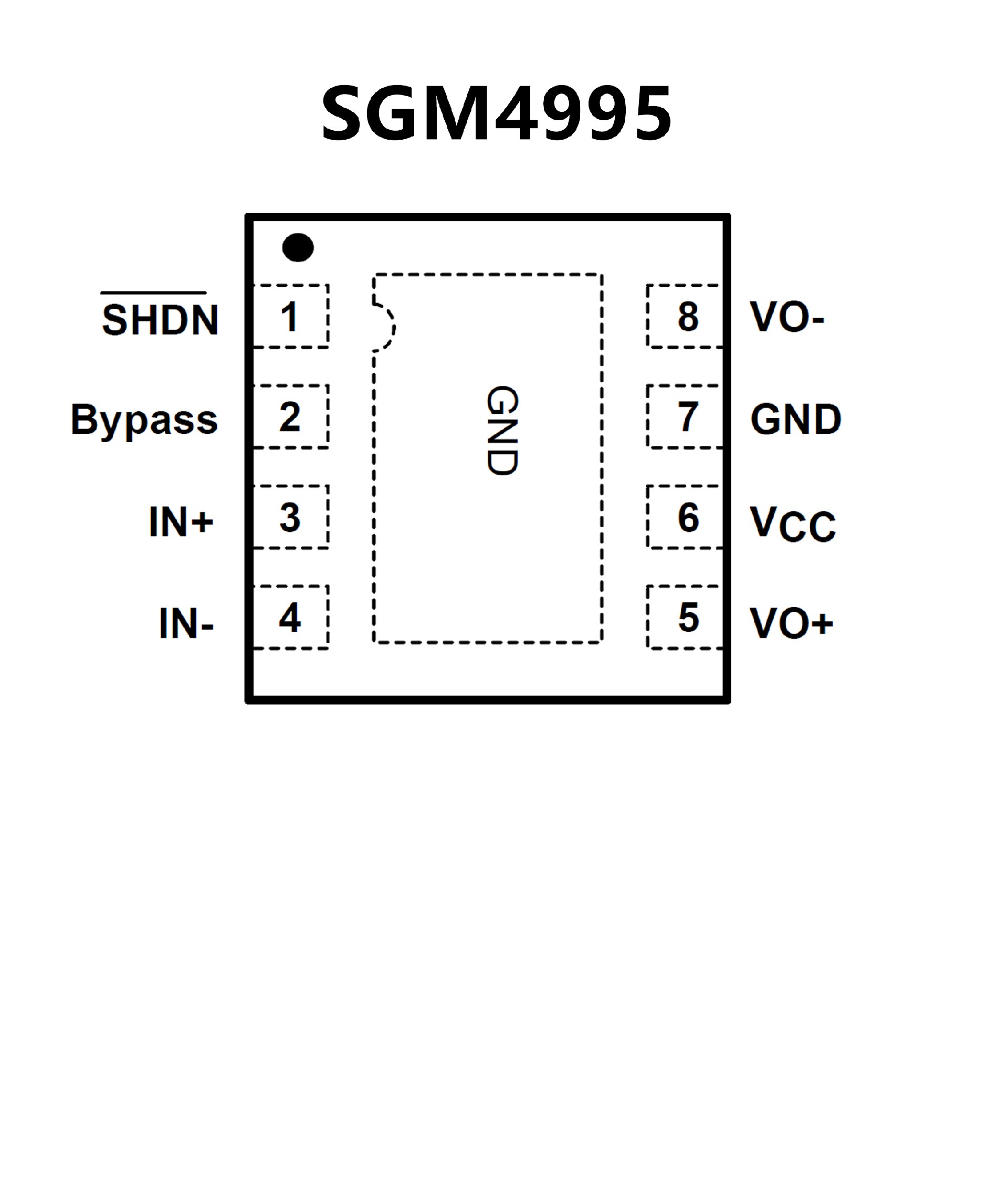

SGM4995YDE8G.pdf? Fully Differential Amplifier
? Excellent PSRR: Direct Connection to Battery
? 1.3W into 8Ω Load from 5V Supply at
THD+N = 1% (TYP)
? 2.5V to 5.5V Operation
? Low Shutdown Current
? Improved Pop/Click Circuitry
? Support Single-Ended or Differential Input
? Thermal Overload Protection Circuitry
? No Output Coupling Capacitors, Bootstrap
Capacitors Required
? External Gain Configuration Capability
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TDFN-2×2-8L Package
? Designed for Wireless or Cellular Handsets and
PDAs
? 1.7 W Into 8 Ω From a 5-V Supply at THD = 10%
(Typical)
? Low Supply Current: 4 mA Typical at 5 V
? Shutdown Current: 0.01 μA Typical
? Fast Start-Up With Minimal Pop
? Only Three External Components
Improved PSRR (?80 dB) and Wide Supply
Voltage (2.5 V to 5.5 V) for Direct Battery
Operation
Fully Differential Design Reduces RF
Rectification
?63-dB CMRR Eliminates Two Input Coupling
Capacitors

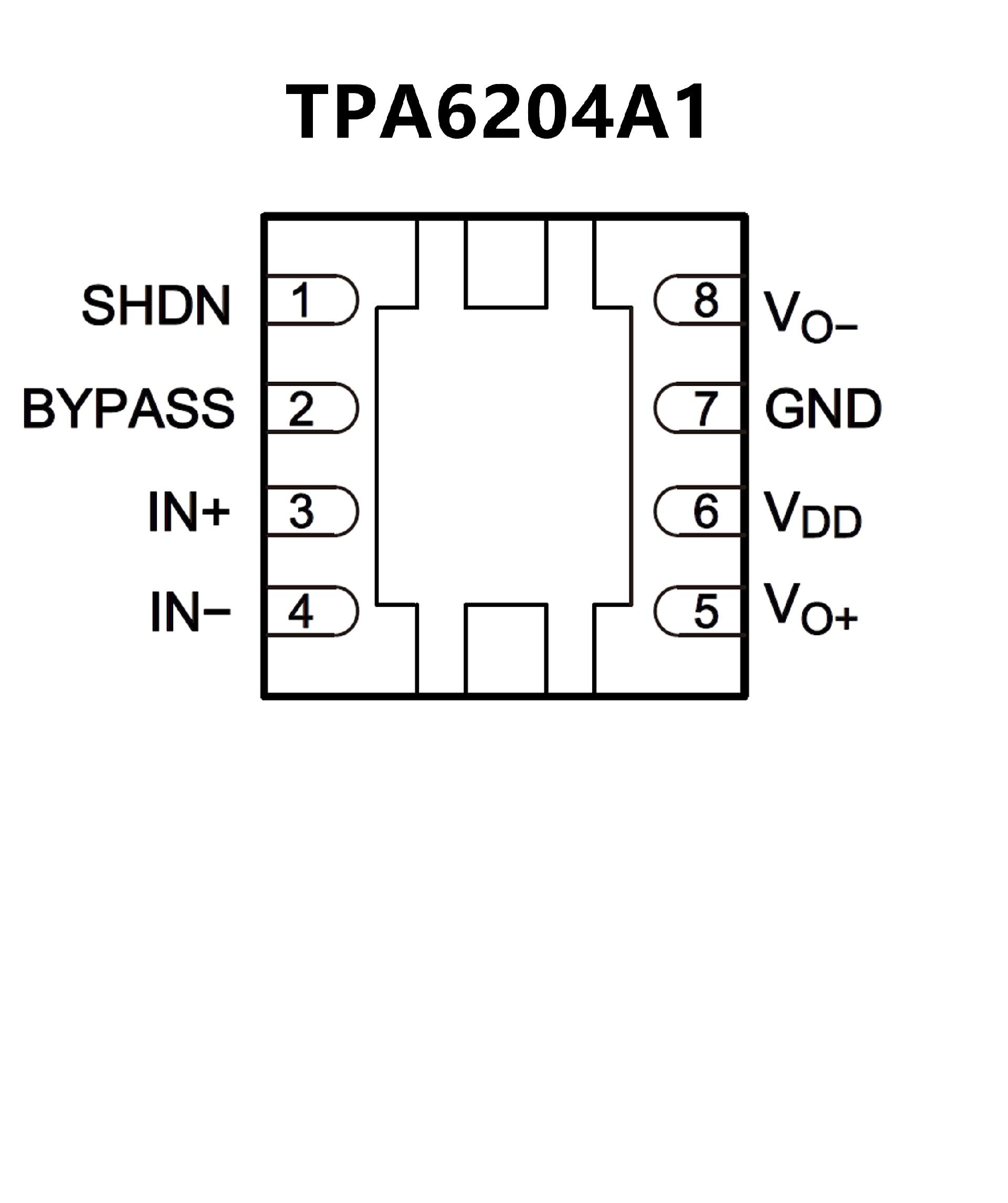

? Pin-to-Pin Compatible With TPA2005D1 and
TPA6211A1 in SON Package
? Available in 3 mm × 3 mm SON Package (DRB)
