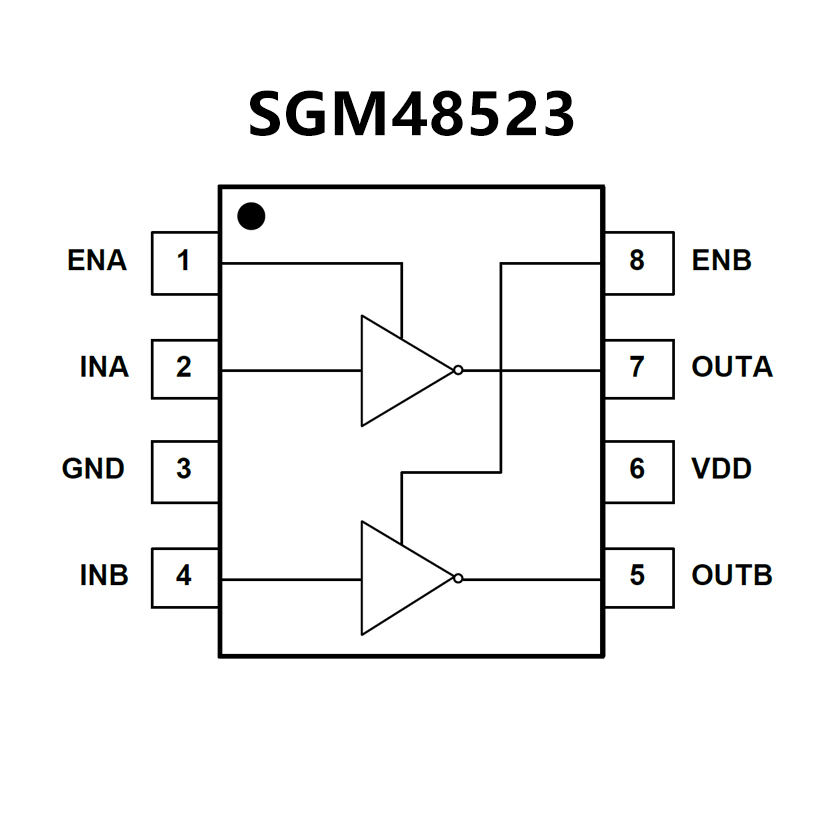

SGM48523XS8G.pdf? Two Independent Gate Drive Channels
? 4.5V to 18V Single Supply Range (VDD)
? 5A Peak Source/Sink Pulse Current Drive
? Independent Enable Pin for Each Channel
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs are Logic Low when Inputs are Floating
? Negative Voltage Handling Capability:
-8V DC at Inputs
-2V, 200ns Pulse for Outputs (OUTx)
? Glitch-Free Operation at Power-Up and Power-
Down: Outputs Pulled Low during Supply UVLO
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 8ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Delay Matching between Two Channels: 1ns (TYP)
? Channels can be Paralleled for Higher Drive Current
? -40℃ to +140℃ Operating Temperature Range
? Packaging:
SGM48523/4A/5 Available in Green SOIC-8,
MSOP-8 (Exposed Pad) and TDFN-3×3-8L
Packages
? SGM48526 Available in a Green TDFN-3×3-8L
Package
? Industry-Standard Pin-Out

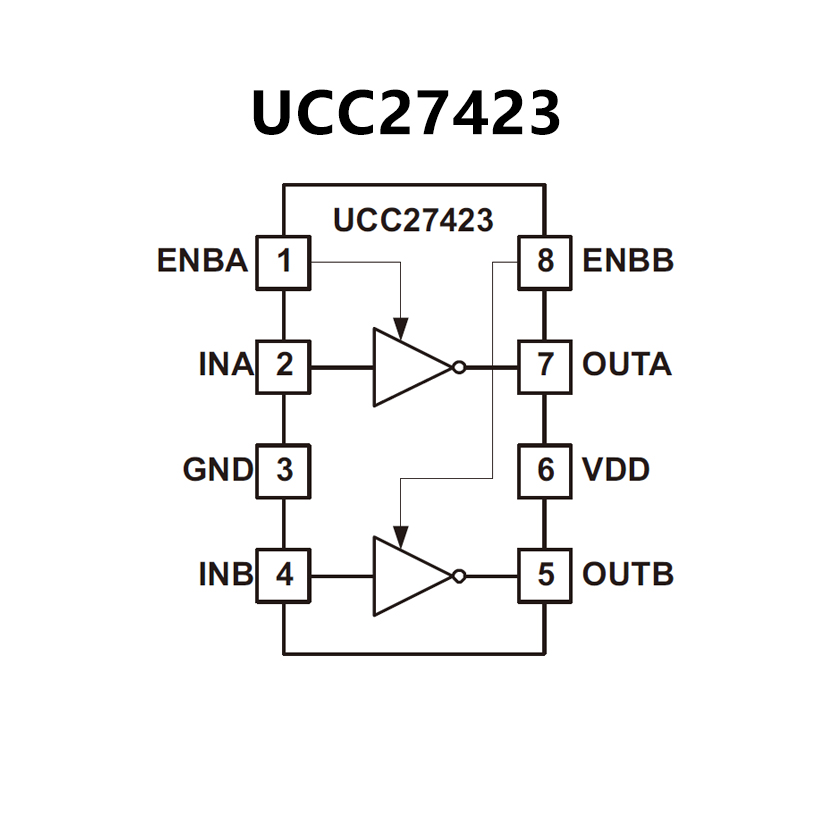

? Enable Functions for Each Driver
? High Current Drive Capability of ±4 A
? Unique BiPolar and CMOS True Drive
Output Stage Provides High Current at
MOSFET Miller Thresholds
? TTL/CMOS Compatible Inputs
Independent of Supply Voltage
? 20-ns Typical Rise and 15-ns Typical
Fall Times with 1.8-nF Load
? Typical Propagation Delay Times
of 25 ns with Input Falling and
35 ns with Input Rising
? 4-V to 15-V Supply Voltage
? Dual Outputs Can Be Paralleled
for Higher Drive Current
? Available in Thermally Enhanced
MSOP PowerPAD? Package
? Rated From –40°C to 125°C
