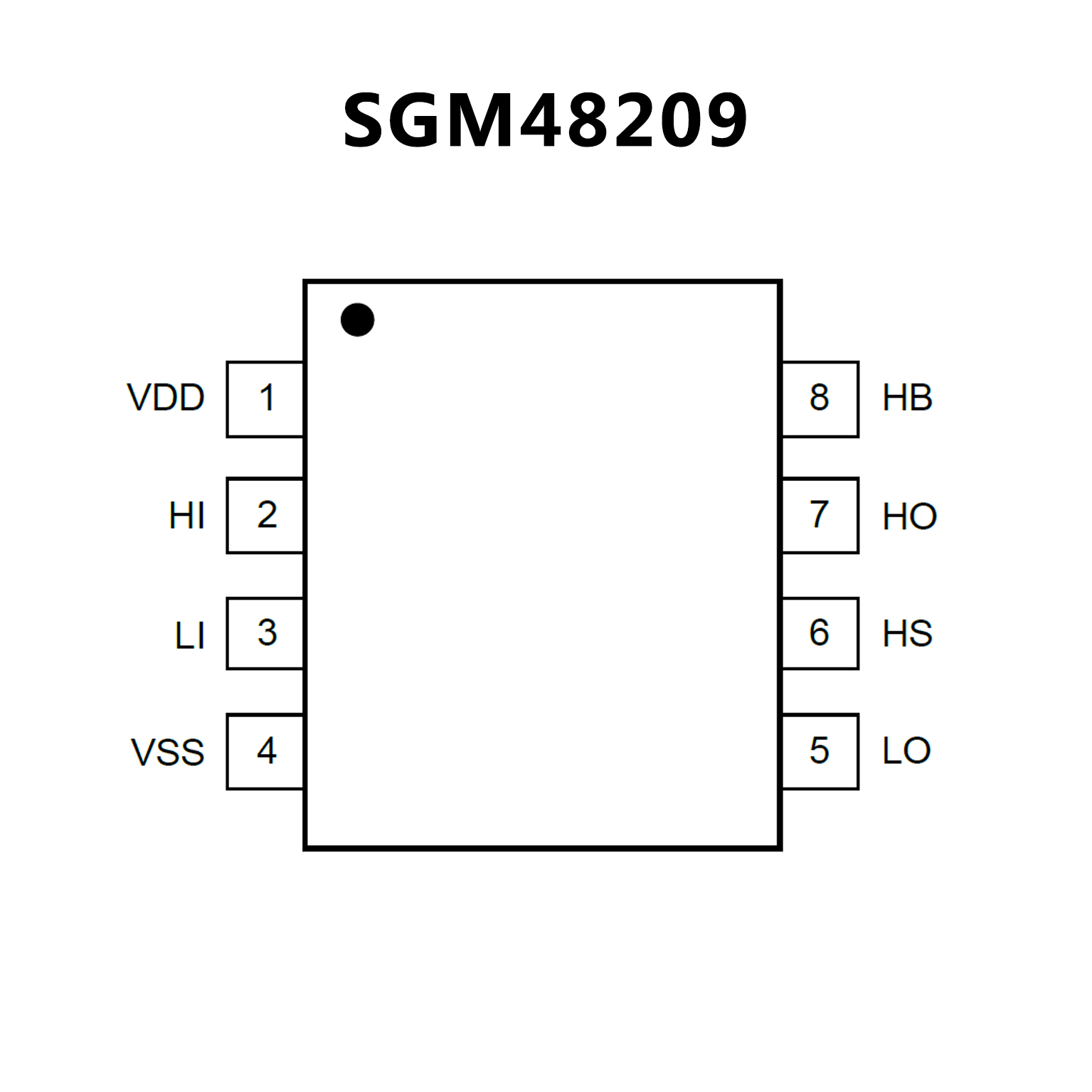

SGM48209.pdf? Wide Operating Range: 8V to 17V
? Drive Two N-MOSFETs Configured in Half Bridge
? Maximum Blocking Voltage: 120V DC
? Integrated Internal Bootstrap Diode for Cost Saving
? 4A Peak Sink and Source Currents
? -10V to 20V Tolerance of Input Pins
? COMS/TTL Compatible Inputs
? 6.5ns (TYP) Rise Time and 4.5ns (TYP) Fall Time with 1000pF Load
? Propagation Delay Time: 31ns (TYP)
? Delay Matching: 3ns (TYP)
? UVLO Functions for Both High-side and Low-side Drivers
? -40℃ to +140℃ Operating Junction Temperature Range
? Available in a Green SOIC-8 Package
? Drives Both a High-Side and Low-Side N-Channel
MOSFET
? 1A peak Output Current (1.0A Sink / 1.0A Source)
? Independent TTL Compatible Inputs
? Bootstrap Supply Voltage to 108V DC
? Fast Propagation Times (30 ns Typical)
? Drives 1000 pF Load with 15ns Rise and Fall Times
? Excellent Propagation Delay Matching (2 ns Typical)
? Supply Rail Under-Voltage Lockout
? Low Power Consumption
? Pin Compatible with ISL6700
? Industry Standard SOIC-8 and Thermally Enhanced
WSON-8 Package
