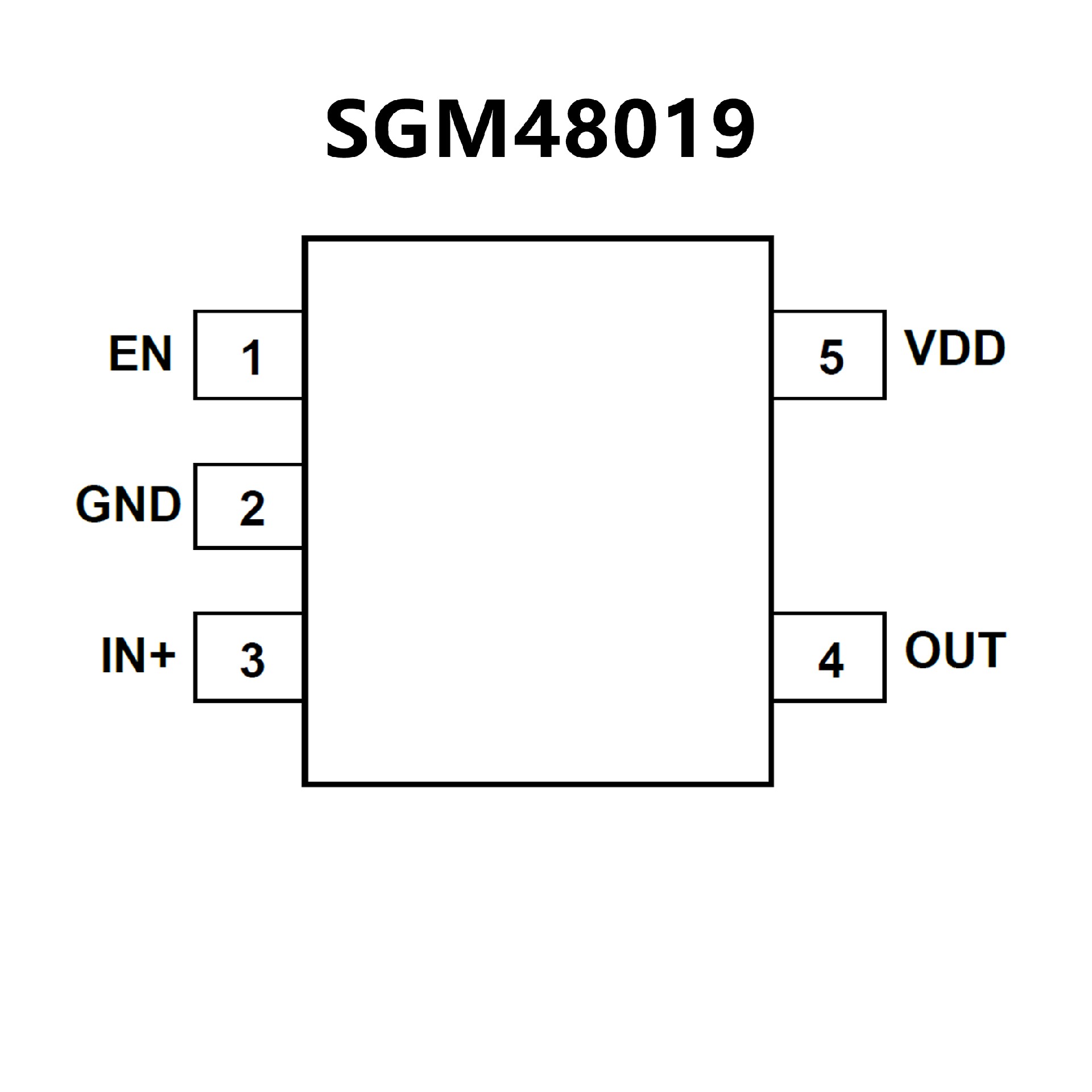

SGM48019.pdf? Simple and Reliable
? 8A Source and 13A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 20V
? Fast Propagation Delay: 30ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pin:
-10V when (VDD - VINx) ≤ 22V
? Negative Voltage Capability on EN Pin:
-10V when (VDD - VEN) ≤ 22V
? Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package
? BiCMOS/DMOS Construction
? Latch-Up Proof: Fully Isolated Process is Inherently
Immune to Any Latch-up.

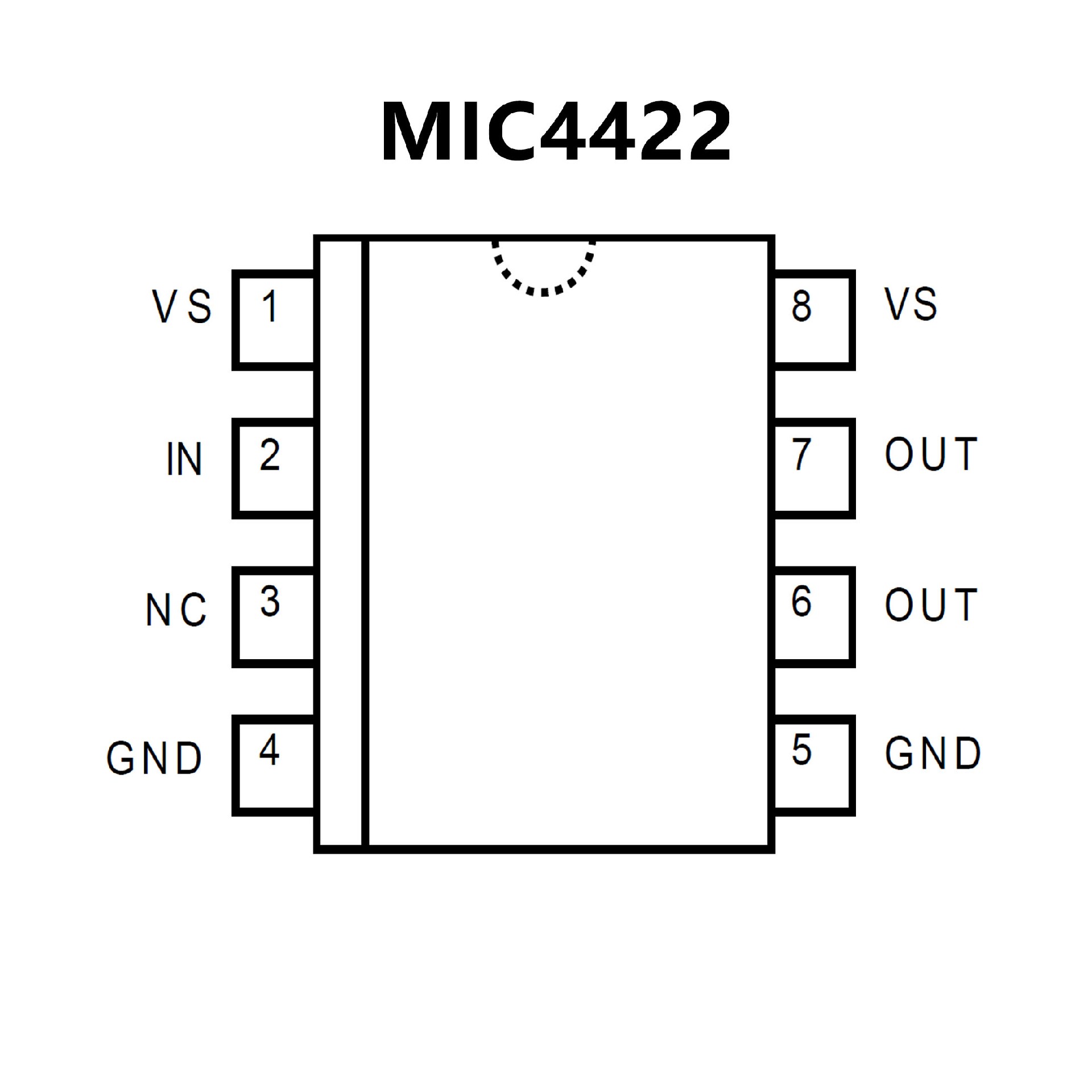

? Input Will Withstand Negative Swing of Up to 5V
? Matched Rise and Fall Times25ns
? High Peak Output Current9A Peak
? Wide Operating Range4.5V to 18V
? High Capacitive Load Drive47,000pF
? Low Delay Time30ns Typ.
? Logic High Input for Any Voltage from 2.4V to VS
? Low Equivalent Input Capacitance (typ) 7pF
? Low Supply Current 450μA With Logic 1 Input
? Low Output Impedance 1.5Ω
? Output Voltage Swing to Within 25mV of GND or VS
