Power MOSFET and IGBT Gate Driver with Comprehensive Protections,SGM48013XN5G Replace TS44273.
SGM48013XN5G
SGM48013XN5G.pdf
SGM48013XN5G.pdfFEATURES
? Simple and Reliable
? 8A Source and 13A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 20V
? Fast Propagation Delay: 30ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on IN Pin:
-10V when (VDD - VIN) ≤ 22V
? Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

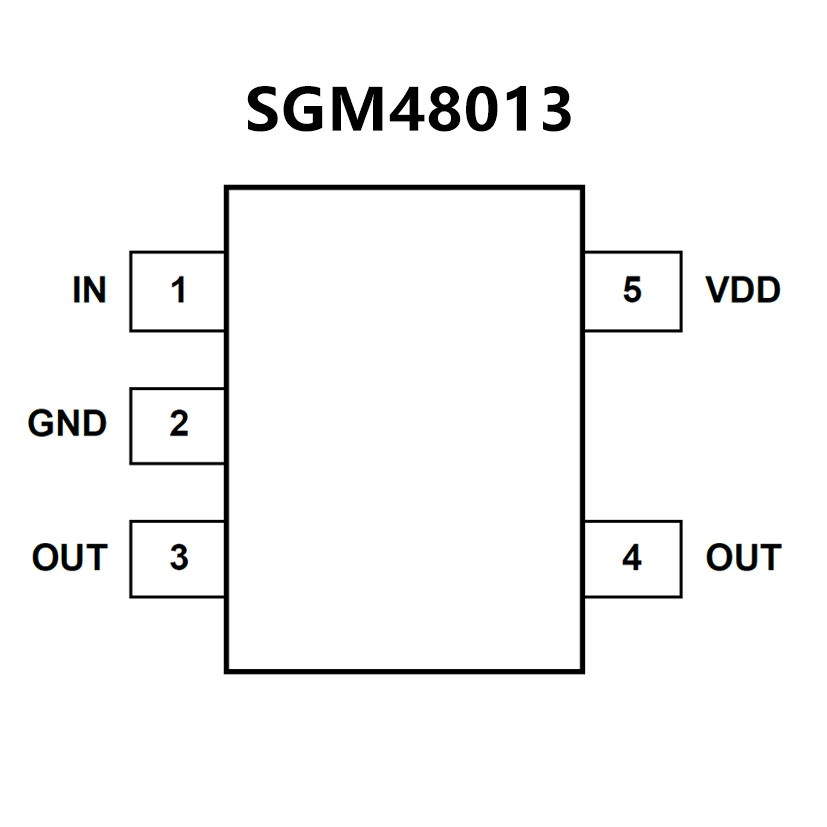

PIN CONFIGUTION
