Low Supply voltage,12bit? Digital? Temperature Sensor,SGM458BTG/TR-Replace-TMP103BYFF.
SGM458BTG/TR
SGM458BTG/TR.pdf
SGM458BTG/TR.pdfFEATURES
? 1.6V to 5.5V Supply Voltage Range
? Two-Wire Interface Supports 1.8V, 2.8V, 3.3V and 5.0V Logic
? Temperature Accuracy:
55℃ to +125℃: ±1℃ (TYP)
? Resolution: 12 Bits or 8 Bits
? Support Multiple Devices in One Serial Bus
? Serial Control Bus is Compatible with I2C and SMBus Interface
? Low Quiescent Current (IQ): 2.9μA at 0.25Hz
? Shutdown Mode Current: 0.7μA (TYP)
? Available in a Green WLCSP-0.85×0.85-4B Package

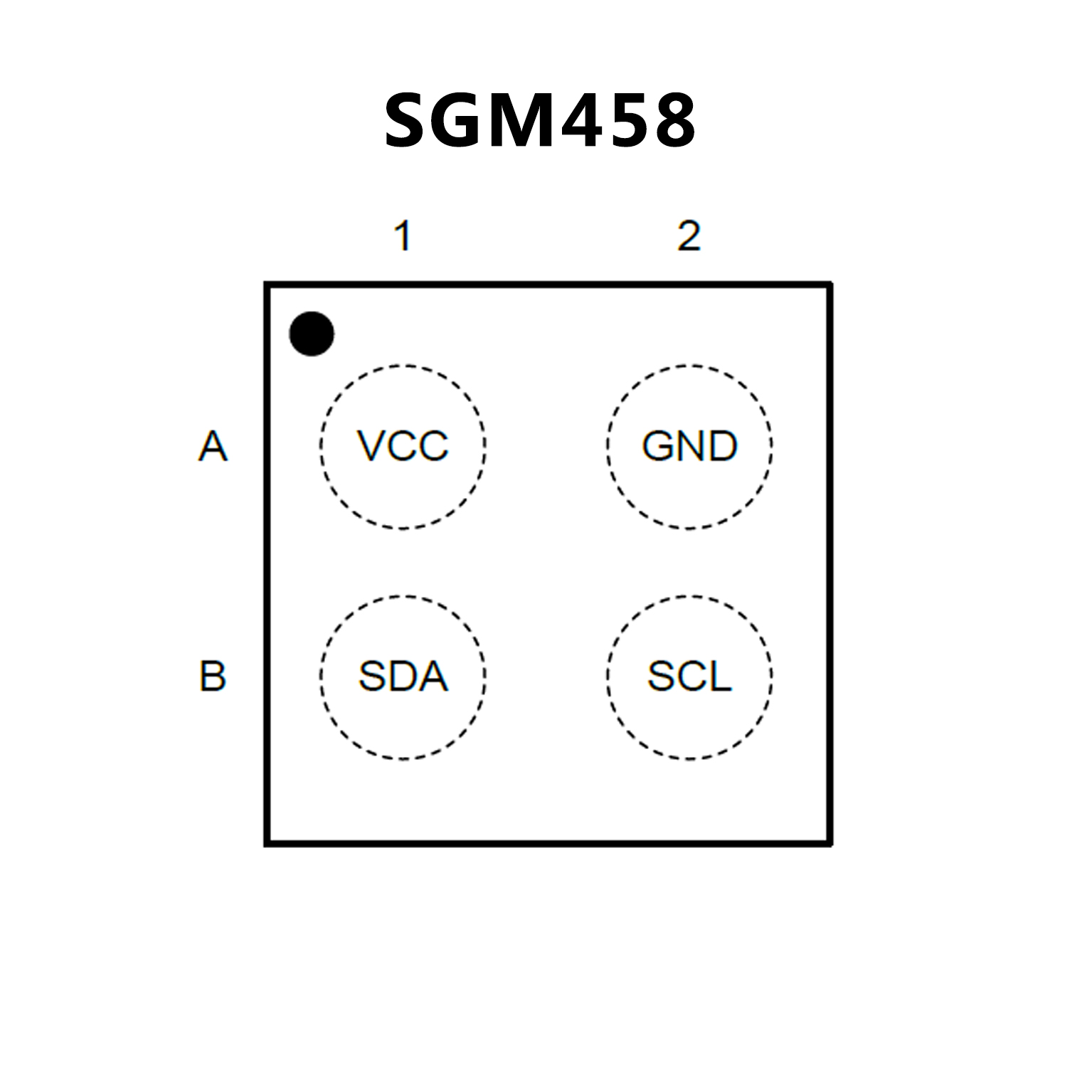

PIN CONFIGUTION
優勢替代
FEATURES
? Multiple Device Access (MDA):
Global Read/Write Operations
? I2C? and SMBus?-Compatible Interface
? Resolution: 8 Bits
? Accuracy: ±1°C Typical (–10°C to 100°C)
? Low Quiescent Current:
– 3-μA Active IQ at 0.25 Hz
– 1-μA Shutdown
? Supply Range: 1.4 V to 3.6 V
? Digital Output
? 4-Ball WCSP (DSBGA) Package

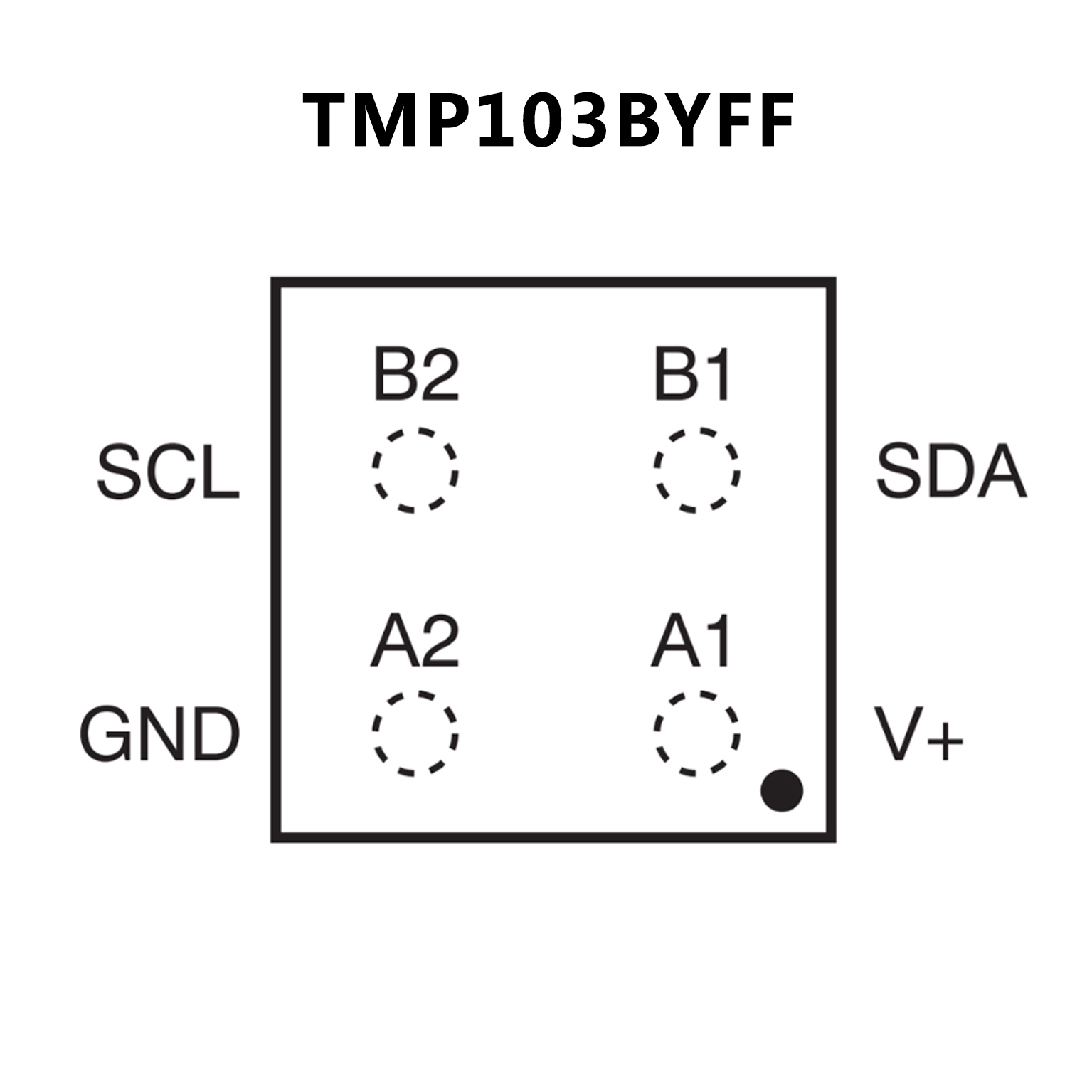

PIN CONFIGUTION
