8-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Applications.
SGM4578YTS20G
SGM4578YTS20G.pdf
SGM4578YTS20G.pdfFEATURES
? No Direction-Control Signal Needed
? Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
? 1.65V to 5.5V on A Ports and 2.3V to 5.5V on B
Ports (VCCA ≤ VCCB)
? VCC Isolation: If Either VCC is at GND,
Both Ports are in the High-Impedance State
? No Power-Supply Sequencing Required:
Either VCCA or VCCB can be Ramped First
? IOFF: Supports Partial-Power-Down Mode Operation
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSSOP-20 and TQFN-3×3-20L
Packages

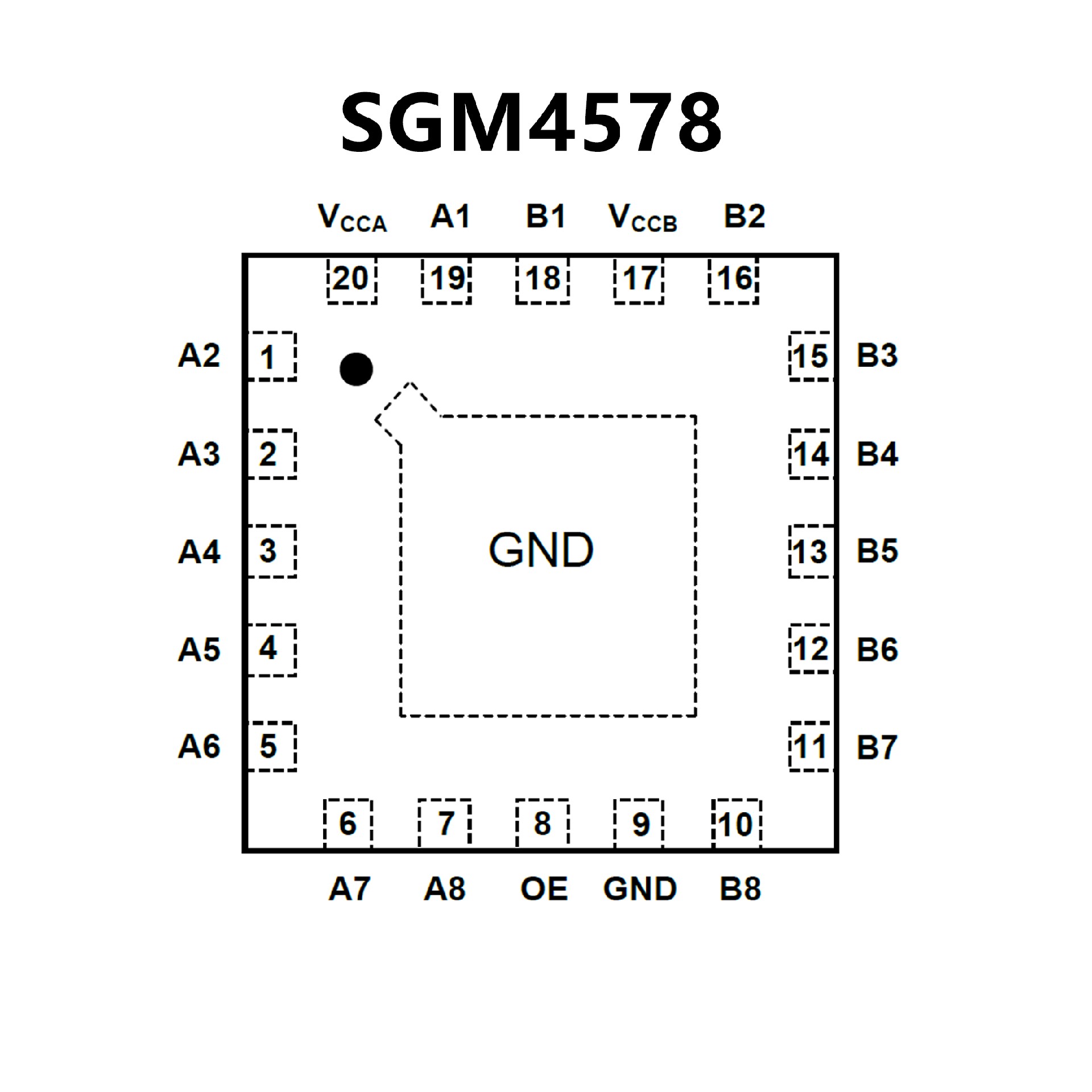

PIN CONFIGUTION
