Dual-Bit Fixed Direction Voltage-Level Translator with Schmitt-Trigger Inputs and 3-State Outputs, SGM4572-11 P2P TXU0202DTMR.
SGM4572-11.pdf優(yōu)勢替代
FEATURES
? Fully configurable dual-rail design allows each port
to operate from 1.1 V to 5.5 V
? Up to 200 Mbps support for 3.3 V to 5.0 V
? Schmitt-trigger inputs allows for slow and noisy inputs
? Inputs with integrated static pull-down resistors
prevent channels from floating
? High drive strength (up to 12 mA at 5 V)
? Low power consumption
– 2.5 μA maximum (25°C)
– 6 μA maximum (–40°C to 125°C)
? VCC isolation and VCC disconnect (Ioff-float) feature
– If either VCC input is <100 mV or disconnected,
all outputs are disabled and become high impedance
? Ioff supports partial-power-down mode operation
? Control logic (OE) with VCC(MIN) circuitry allows for
control from either A or B port
? Pinout compatible with TXB family level shifters
? Available in another variant that supports common
applications: TXU0102
? Operating temperature from –40°C to +125°C
? Latch-up performance exceeds 100 mA per JESD 78, class II
? ESD protection exceeds JESD 22
– 2500-V human-body model
– 1500-V charged-device model

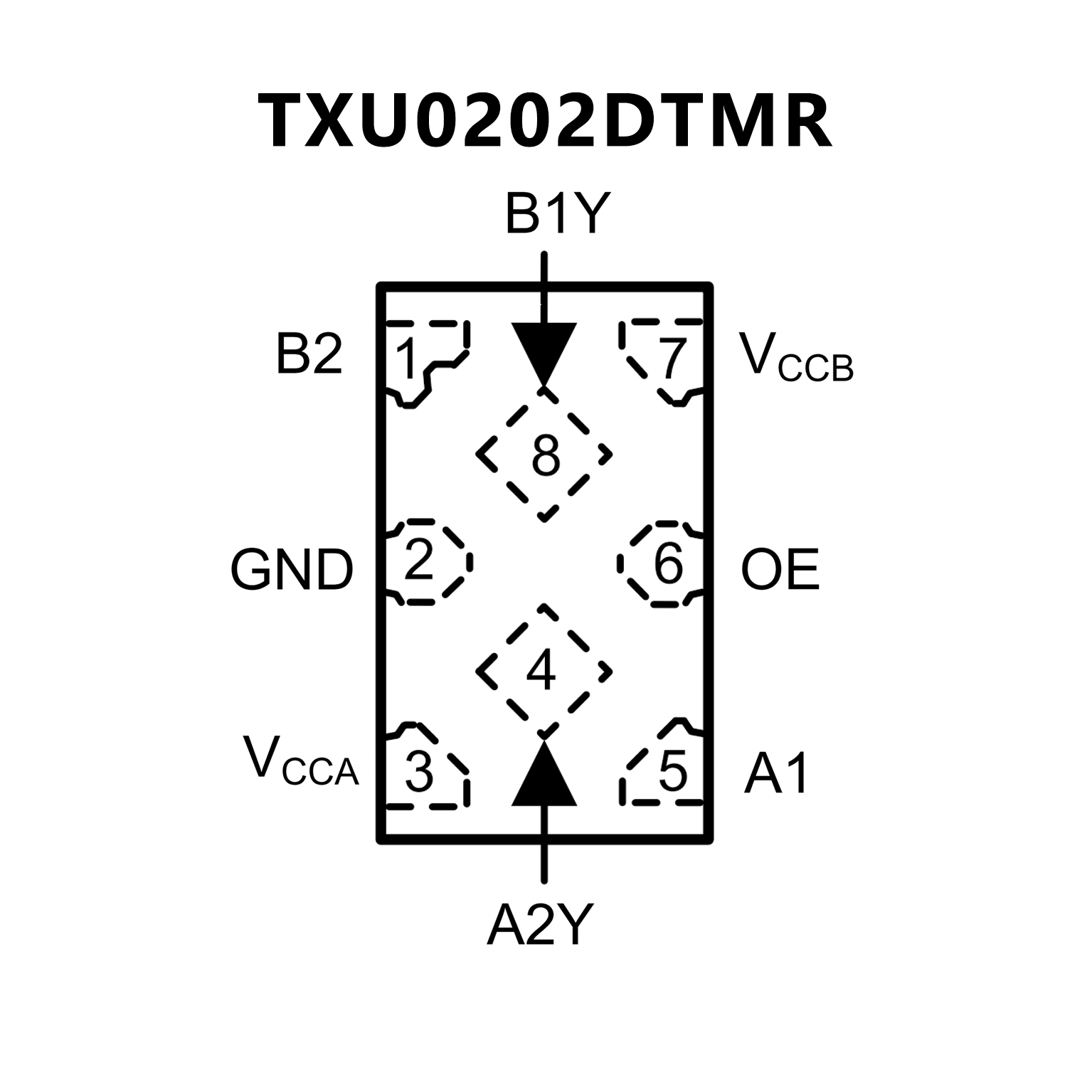

PIN CONFIGUTION
