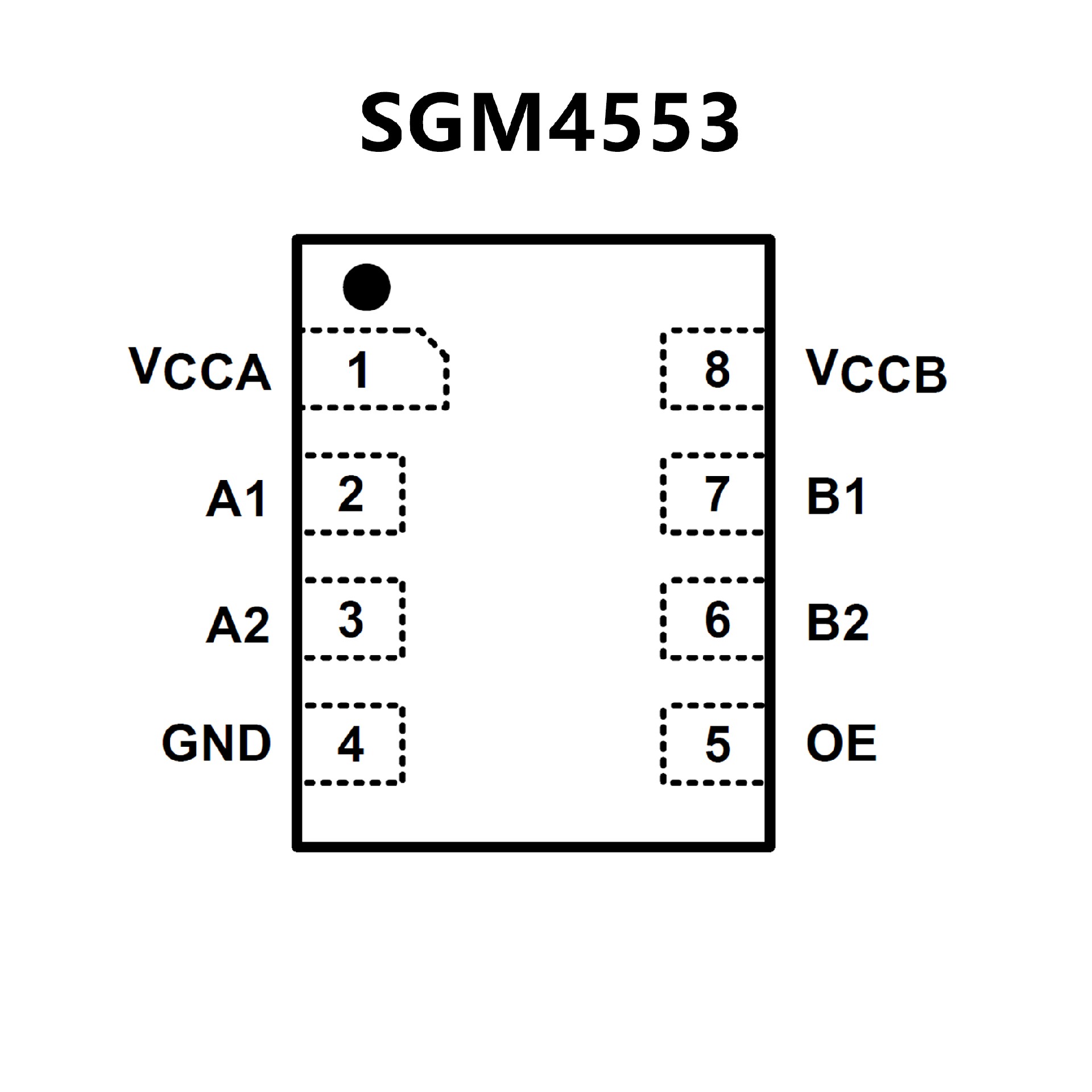

SGM4553.pdf? No Direction-Control Signal Needed
? Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
? 1.65V to 5.5V on A Ports and 2.3V to 5.5V on B Ports
(VCCA ≤ VCCB)
? VCC Isolation: If Either VCC is at GND,
Both Ports are in the High-Impedance State
? No Power-Supply Sequencing Required:
Either VCCA or VCCB can be Ramped First
? IOFF: Supports Partial-Power-Down Mode Operation
Available in Green SOT-23-8 and XTDFN-1.4×1-8L
Packages
? No Direction-Control Signal Needed
? Maximum Data Rates
24 Mbps (Push Pull)
2 Mbps (Open Drain)

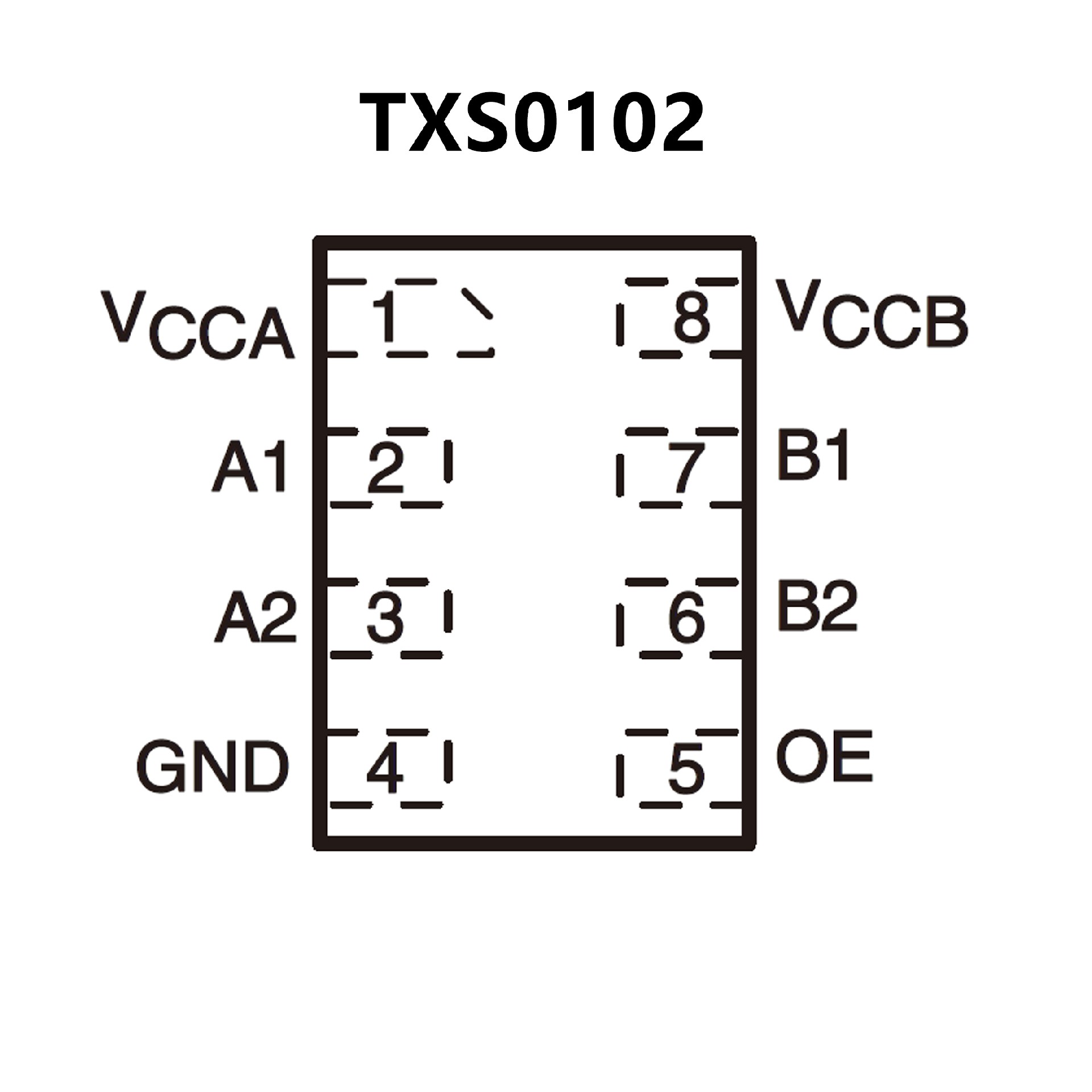

? Available in the Texas Instruments NanoStar?
Package
? 1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on B
Port (VCCA ≤ VCCB)
? VCC Isolation Feature: If Either VCC Input Is at
GND, Both Ports Are in the High-Impedance State
? No Power-Supply Sequencing Required: Either
VCCA or VCCB Can Be Ramped First
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
A Port:
2500-V Human-Body Model (A114-B)
250-V Machine Model (A115-A)
1500-V Charged-Device Model (C101)
B Port:
8-kV Human-Body Model (A114-B)
250-V Machine Model (A115-A)
1500-V Charged-Device Model (C101)
