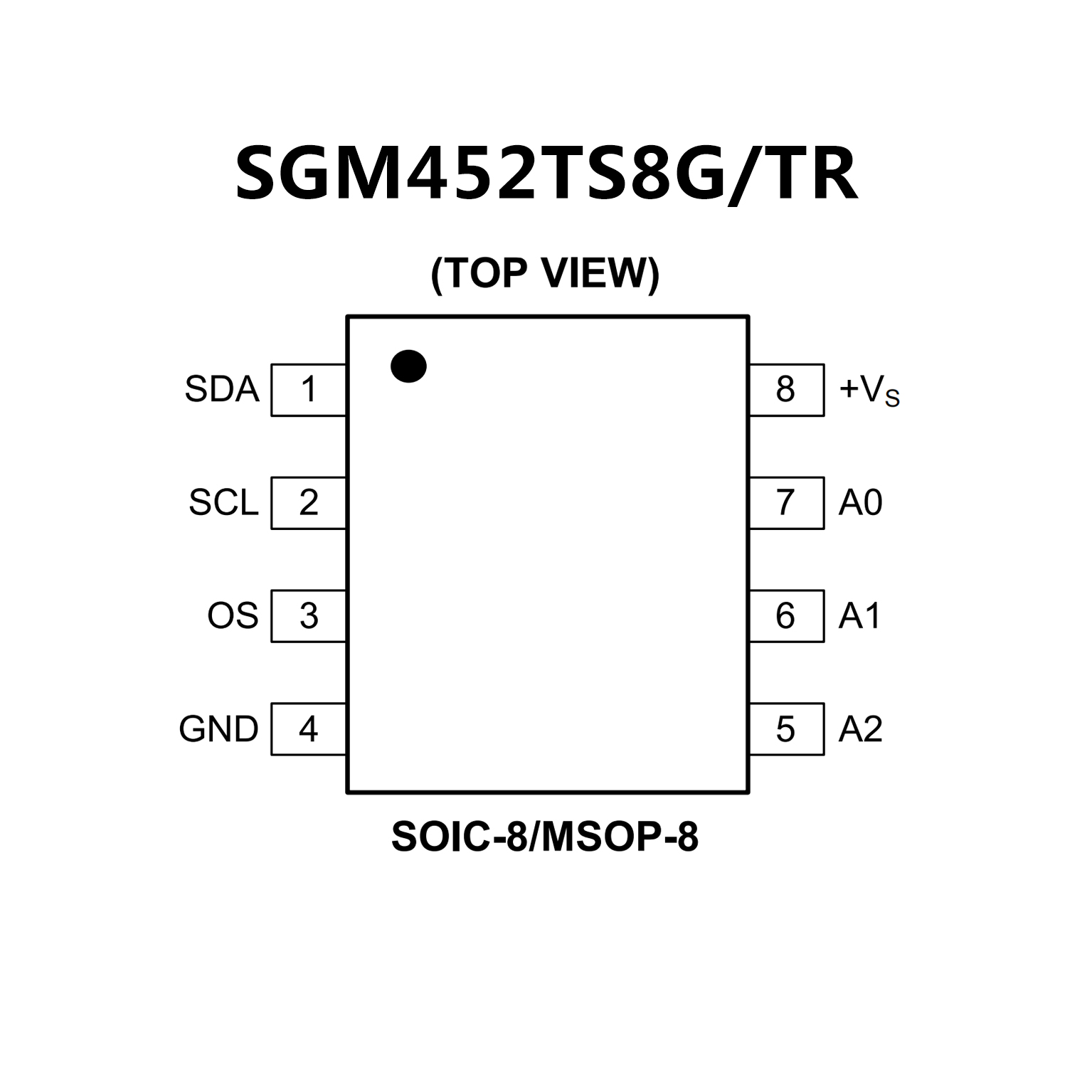

SGM452.pdf? No External Components Required
? Shutdown Mode to Minimize Power Consumption
? Up to Eight SGM452 Devices can be Connected
to a Single Bus
? Power-Up Defaults Permit Stand-Alone Operation
as Thermostat
? Power Supply Voltage Range: 2.7V to 5.5V
? Support 1.8V I2C Bus Voltage at 3.3V Power Supply
? Low Quiescent Current: 49μA (TYP)
? Shutdown Mode Current: 0.4μA (TYP)
? Temperature Accuracy:-55℃ to +125℃: ±1.2℃ (MAX)
? Operating Temperature Range: -55℃ to +125℃
? Available in Green SOIC-8 and MSOP-8 Packages

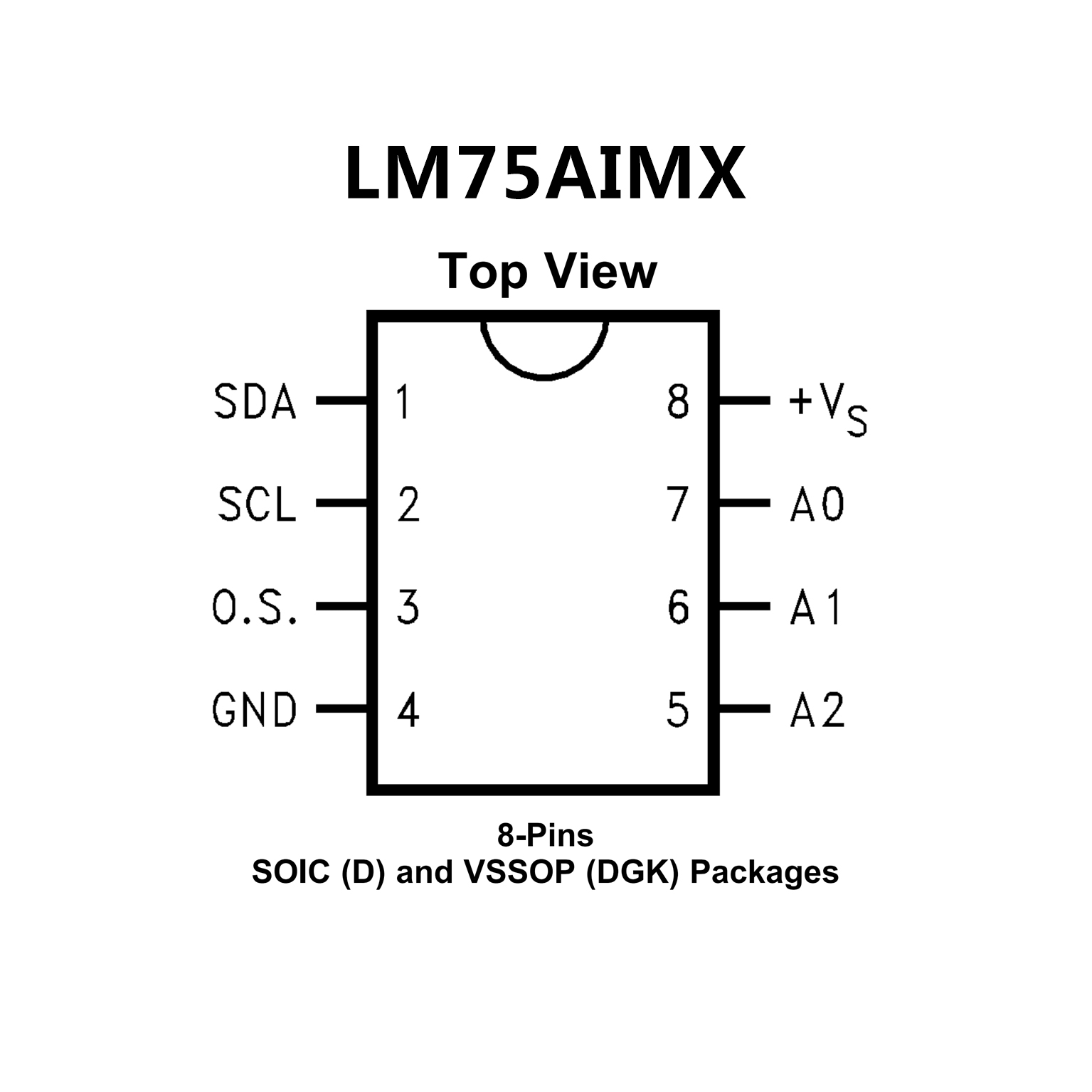

? No External Components Required
? Shutdown Mode to Minimize Power Consumption
? Up to Eight LM75As can be Connected to a Single Bus
? Power up Defaults Permit Stand-Alone Operation
as Thermostat
? Key Specifications:
Supply Voltage
LM75A: 2.7 V to 5.5 V
Supply Current
Operating: 280 μA (Typical)
Shutdown: 4 μA (Typical)
Temperature Accuracy
25°C to 100°C: ±2°C (Max)
55°C to 125°C: ±3°C (Max)
