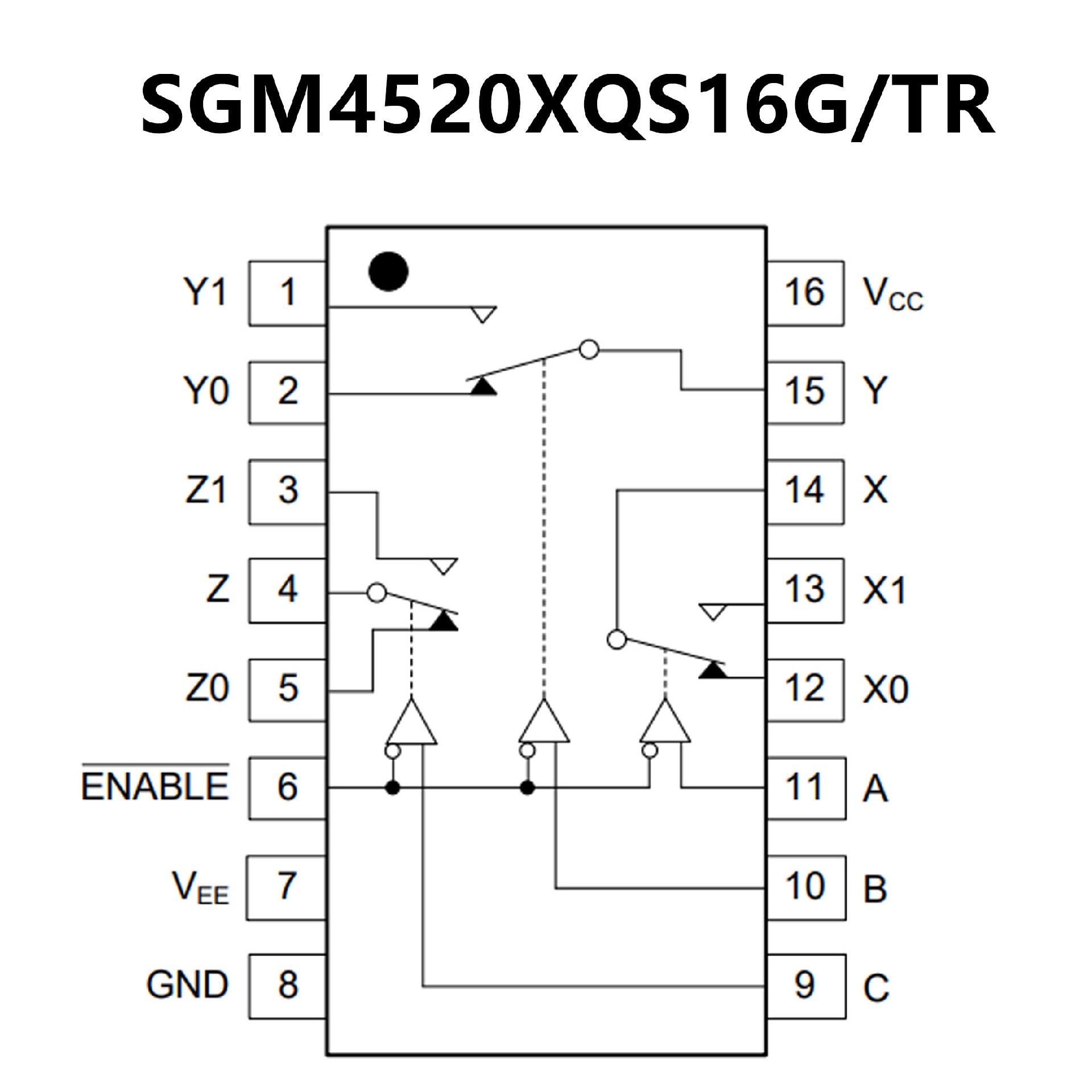

SGM4520XQS16G.pdf? On-Resistance: 22Ω with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation
or +3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP)
(RL = 600Ω, f = 1kHz)
? High Off-Isolation: -82dB (TYP)
(RL = 50Ω, f = 1MHz)
? Low Crosstalk: -88dB (TYP)
(RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages
? 1 TTL-Hoad output drive capability.
? 2 output-disable controls
? 3-state outputs
? Pin compatible with industry types MM80C97,
MC14503 and 340097
? 5V, 10V, and 15V parametric ratings
? Maximum input current of 1uA at 18 V over full
package-temperature range; 100nA at 18V and 25"C
? Meets all requirements of JEDEC
Tentative Standard No. 13B,“Standard
Specifications for Descrlption of 'B'
Series CMOS Dovlces"
