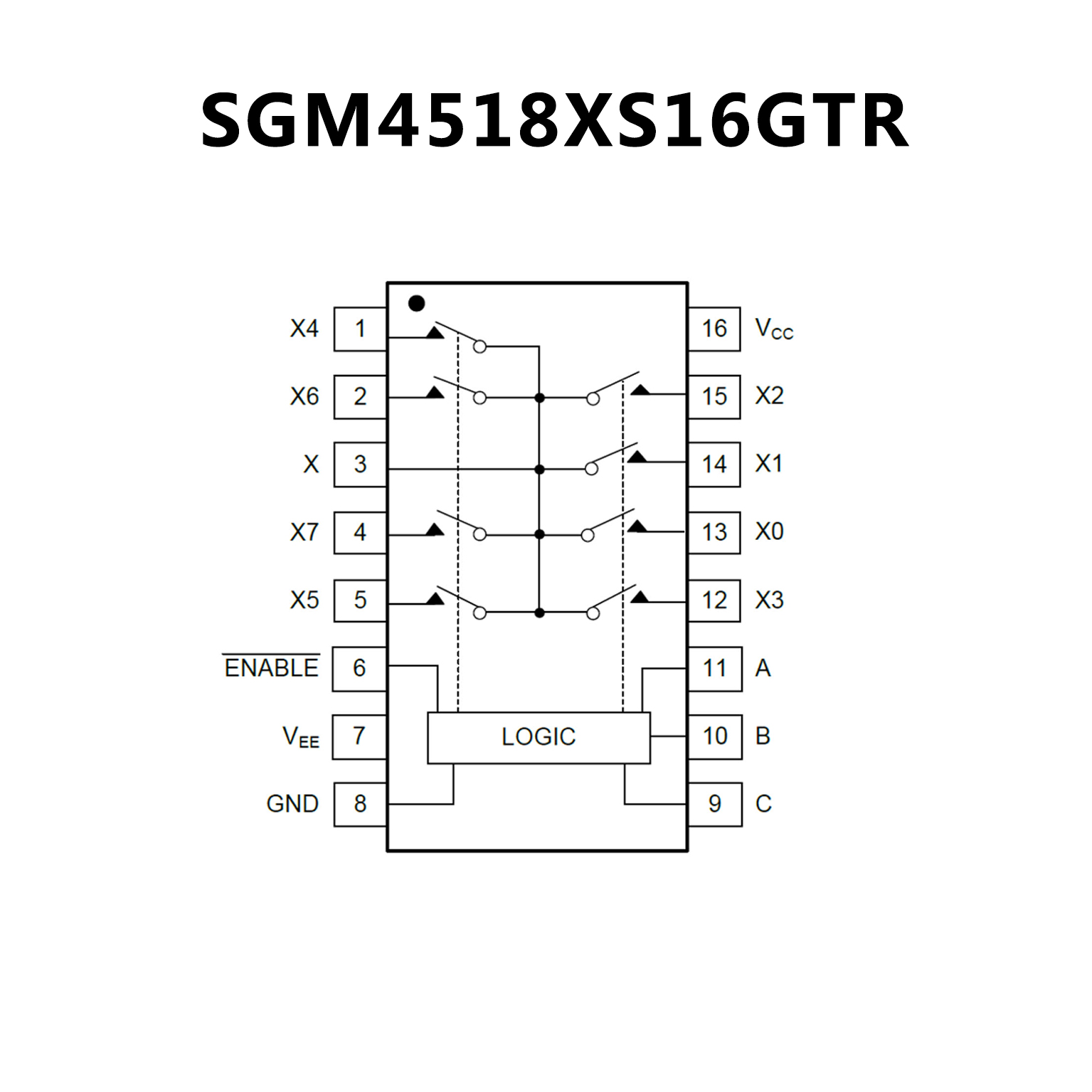

SGM4518.pdf? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
? High Off-Isolation: -85dB (TYP) (RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages

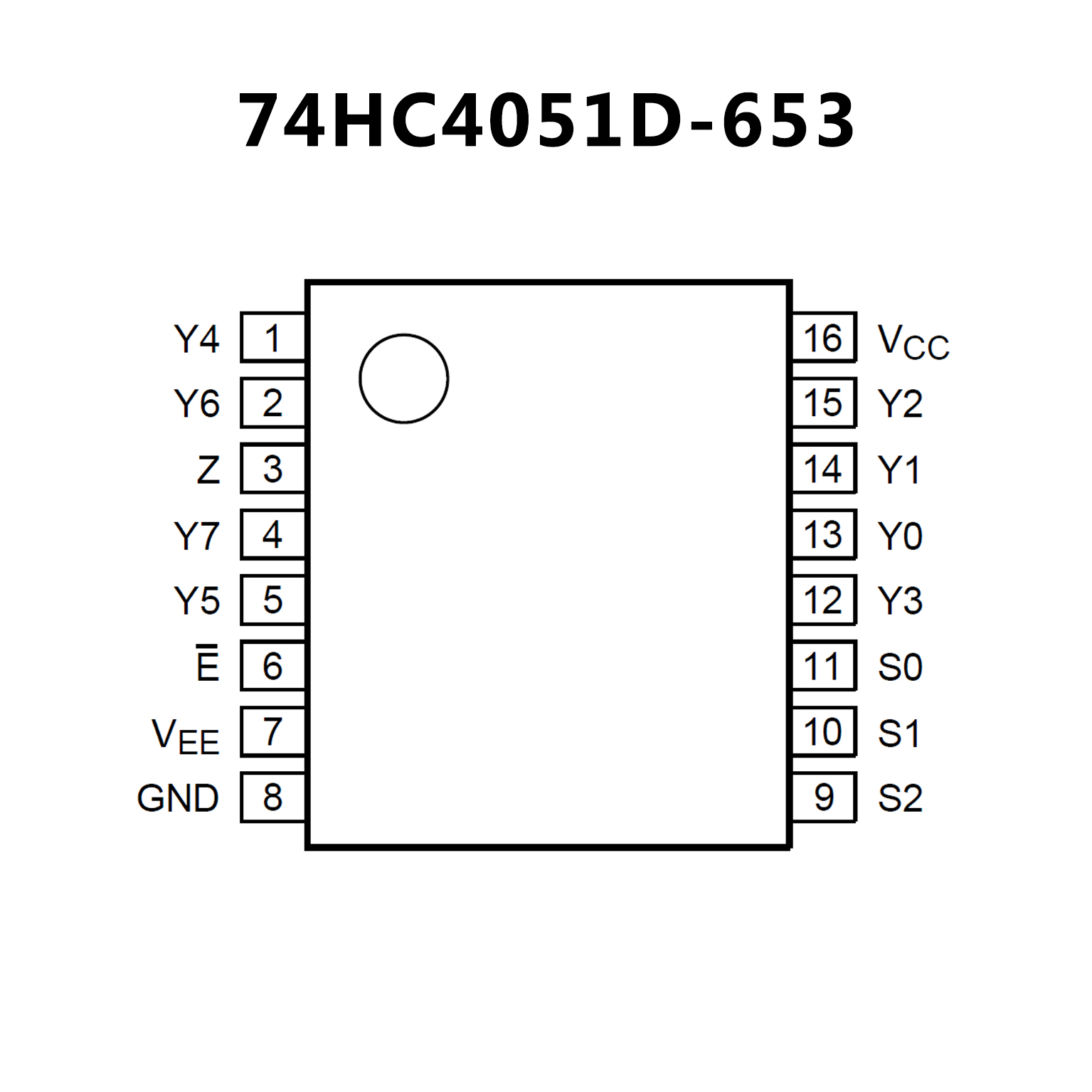

? Wide analog input voltage range from -5 V to +5 V
? CMOS low power dissipation
? High noise immunity
? Complies with JEDEC standards
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
? Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
? Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at VCC - VEE = 6.0 V
60 Ω (typical) at VCC - VEE = 9.0 V
? Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
? Typical ‘break before make’ built-in
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
