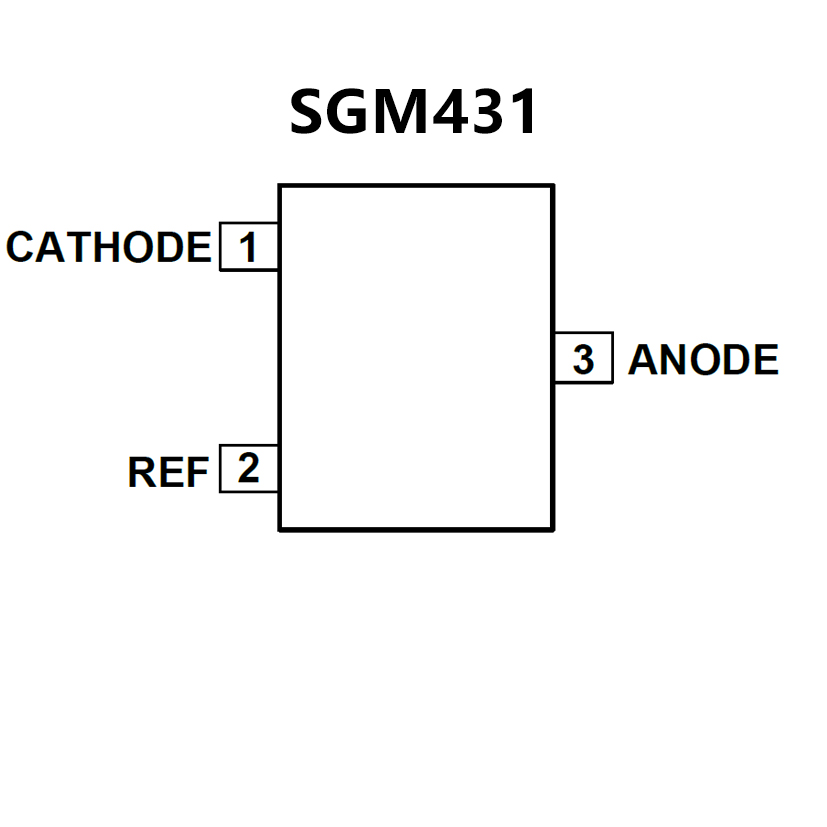

SGM431.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages

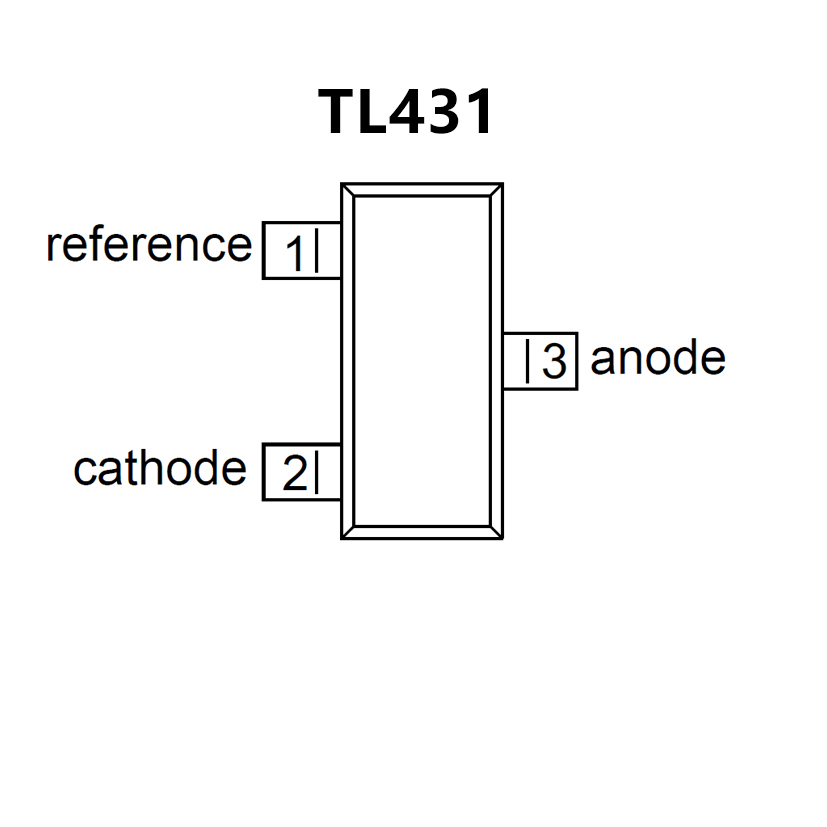

? Programmable output voltage up to 36 V
? Three different reference voltage tolerances:
? Standard grade: 2 %
? A-Grade: 1 %
? B-Grade: 0.5 %
? Typical temperature drift: 9 mV (in a
range of 0 °C up to 70 °C)
? Low output noise
? Typical output impedance: 0.2 Ω
? Sink current capability: 1 mA to 100 mA
? AEC-Q100 qualified (grade 1)
