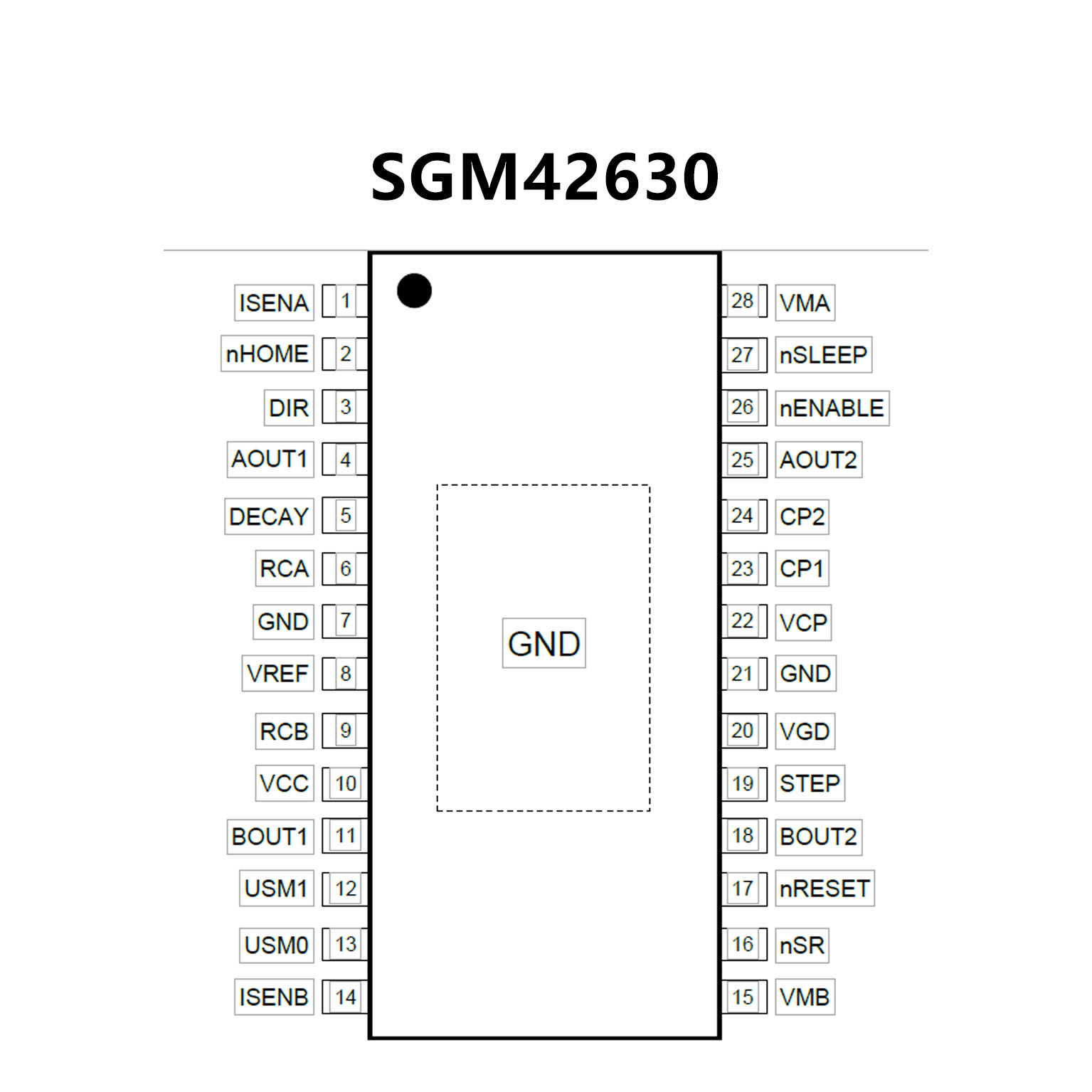

SGM42630.pdf? 8V to 35V Motor Power Supply Voltage Range
? PWM with Up to 2.6A Current per Winding
? Low On-Resistance (0.29Ω for HS + LS, @ +25℃)
? Microstepping Indexer: 1, 1/2, 1/4 and 1/8
? Step and Direction Interface
? Programmable Decay, Blanking and Off-Time
? Auto-Decay Mode
? UVLO for VM, VCC, VCP, VGD Voltages
? Over-Current Protection (OCP)
? Thermal Shutdown (TSD)
? Available in a Green TSSOP-28 (Exposed Pad)
Package

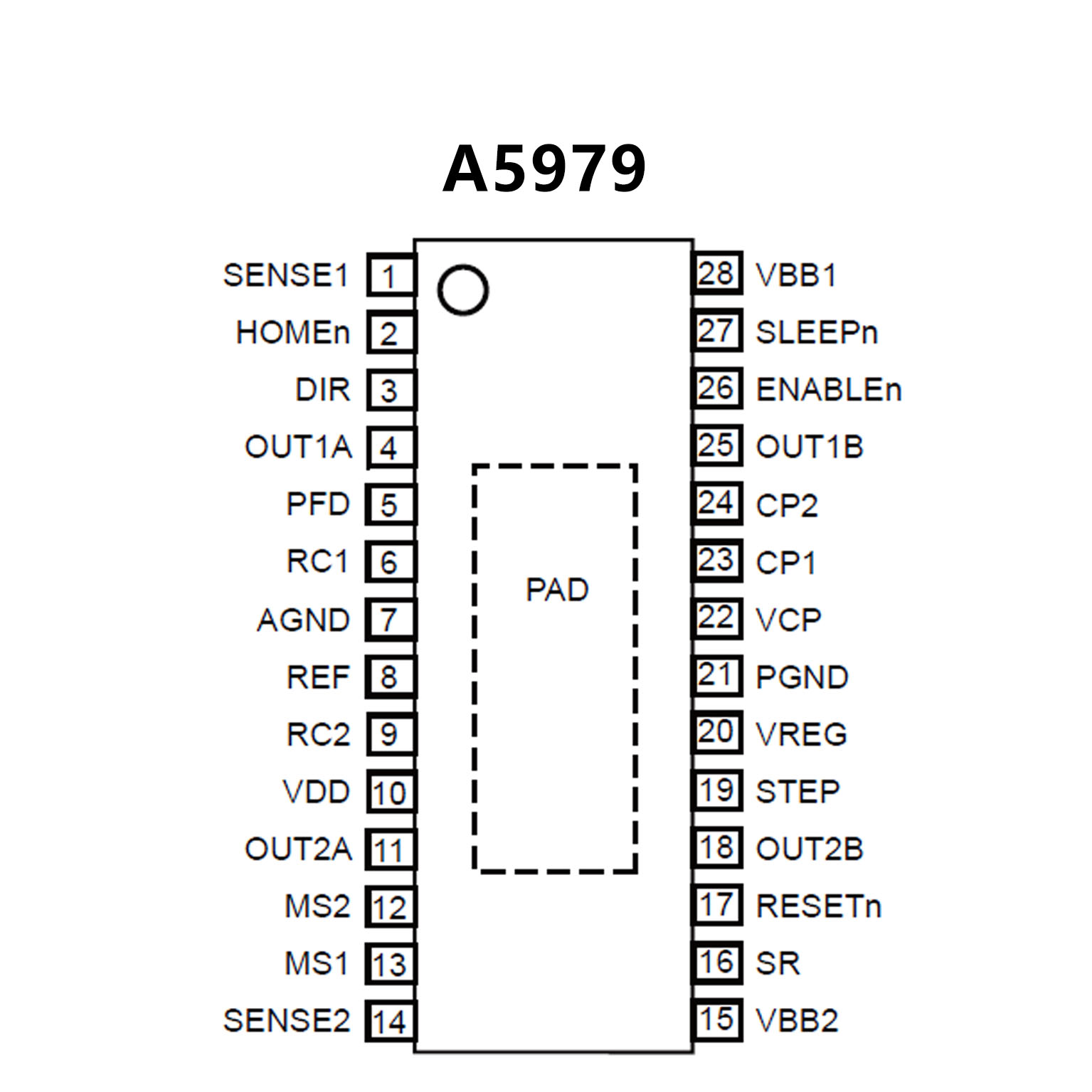

? ±2.8 A, 40 V output rating
? Low RDS(on) outputs, 0.22 ? source,
0.15 ? sink typical
? Automatic current decay mode detection/selection
? 3 to 5.5 V logic supply voltage range
? Mixed, fast, and slow current decay modes
? Home output
? Synchronous rectification for low power dissipation
? Internal UVLO and thermal shutdown circuitry
? Crossover-current protection
? Short-to-ground protection
? Short-to-VBB protection
? Shorted load protection
