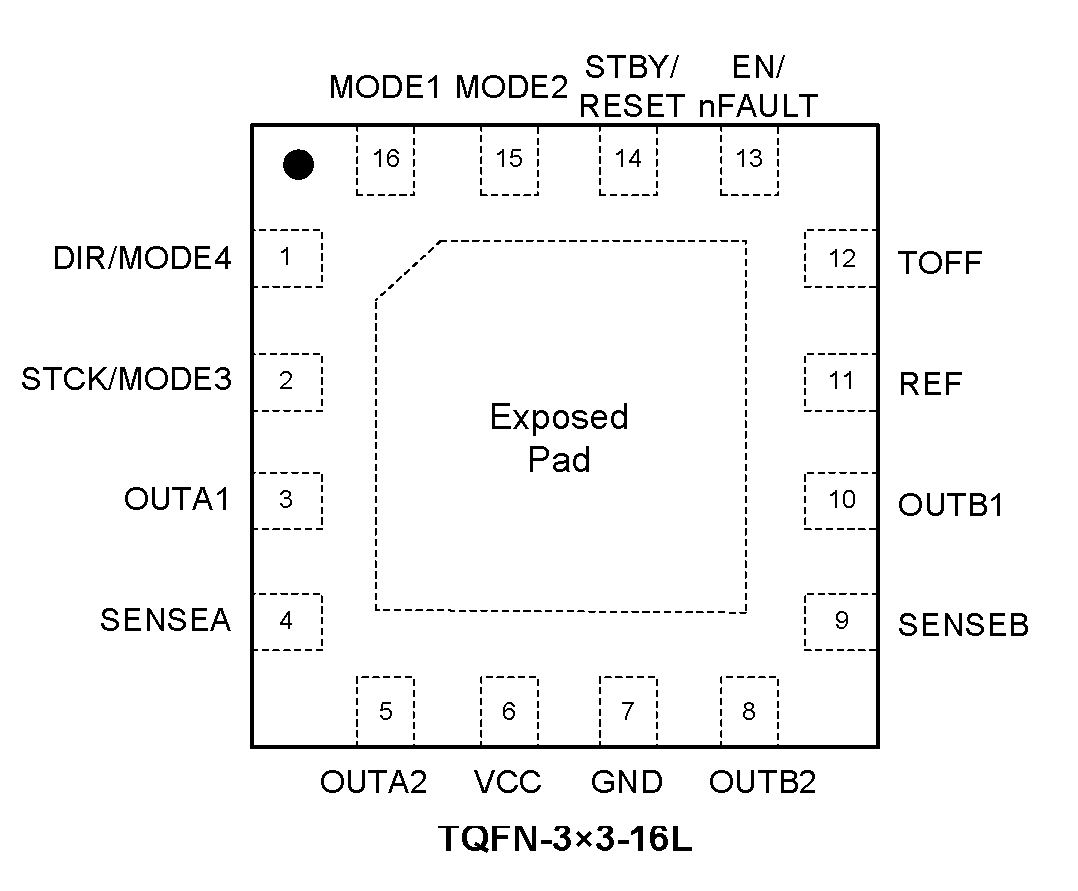

SGM42622.pdf? Motor Power Supply Voltage Range: 1.8V to 10V
? 1.3A Maximum RMS Output Current
? Low RDS(ON): 0.5Ω (HS + LS) at +25℃
? Up to 1/256 Microstepping Resolution
? Adaptive Mixed Current Decay Modes
? Current Control with Programmable Off-Time
? Full Set of Protections
Lossless Over-Current Protection
Short-Circuit Protection
Thermal Shutdown
? Less than 80nA Standby Current for Long Battery Life

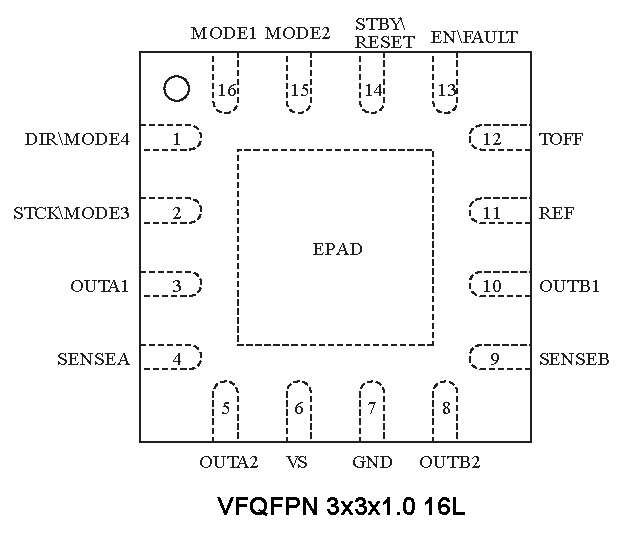

? Operating voltage: from 1.8 to 10 V
? Maximum output current: 1.3 Arms
? RDS(ON) HS + LS = 0.4 Ω typ.
? Microstepping up to 1/256th of a step
? Current control with programmable off-time
? Full protection set
– Non-dissipative overcurrent protection
– Short-circuit protection
– Thermal shutdown
? Energy saving and long battery life with standby
consumption less than 80 nA
