Dual H-Bridge Motor Controller IC, SGM42613 Replace DRV8812.
SGM42613
SGM42613.pdf
SGM42613.pdfFEATURES
? 8.2V to 36V Operating Voltage Range
? Up to 2.5A Drive Current at VM = 24V, TJ = +25℃
? Dual H-Bridge Current Controlled Motor Driver
? Drives a Bipolar Stepper Motor
? Four Current Scaling Control
? Selectable Slow, Fast or Mixed Decay Modes
? Industry Standard Parallel Digital Interface
? Low Current Sleep Mode
? 3.3V Reference Output
? Full Set of Protections
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
VM Under-Voltage Lockout (UVLO)
Active Low Fault Indication Pin (nFAULT)
? Available in a Green TSSOP-28 (Exposed Pad) Package

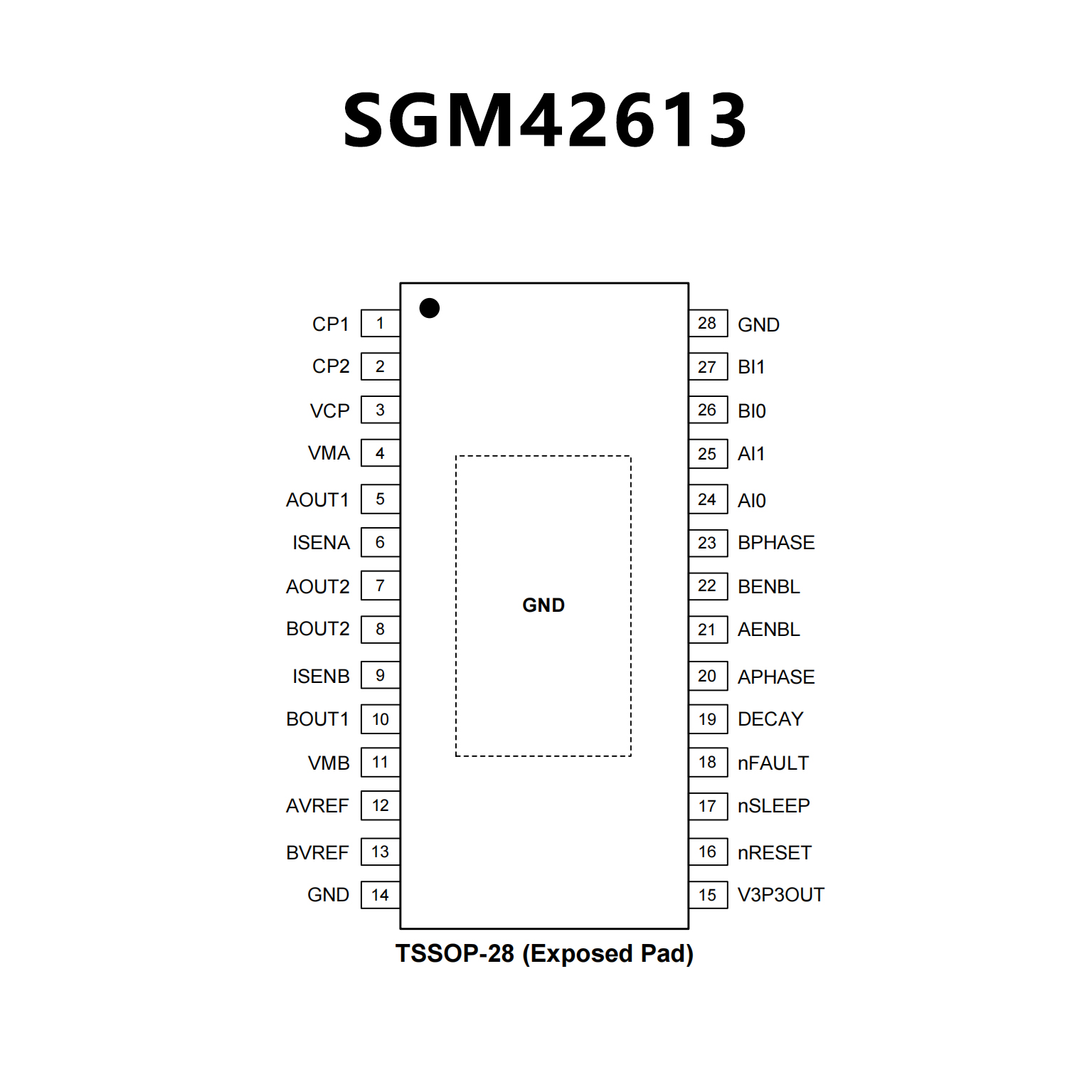

PIN CONFIGUTION
優勢替代
FEATURES
? 8.2-V to 45-V Operating Supply Voltage Range
? 1.6-A Maximum Drive Current at 24 V and TA = 25°C
? Dual H-Bridge Current Control Motor Driver
? Drive a Bipolar Stepper or Two DC Motors
? Four Level Winding Current Control
? Multiple Decay Modes
? Mixed Decay
? Slow Decay
? Fast Decay
? Industry Standard Parallel Digital Control
Interface
? Low Current Sleep Mode
? Built In 3.3-V Reference Output Small Package
and Footprint
? Protection Features
? Overcurrent Protection (OCP)
? Thermal Shutdown (TSD)
? VM Undervoltage Lockout (UVLO)
? Fault Condition Indication Pin (nFAULT)

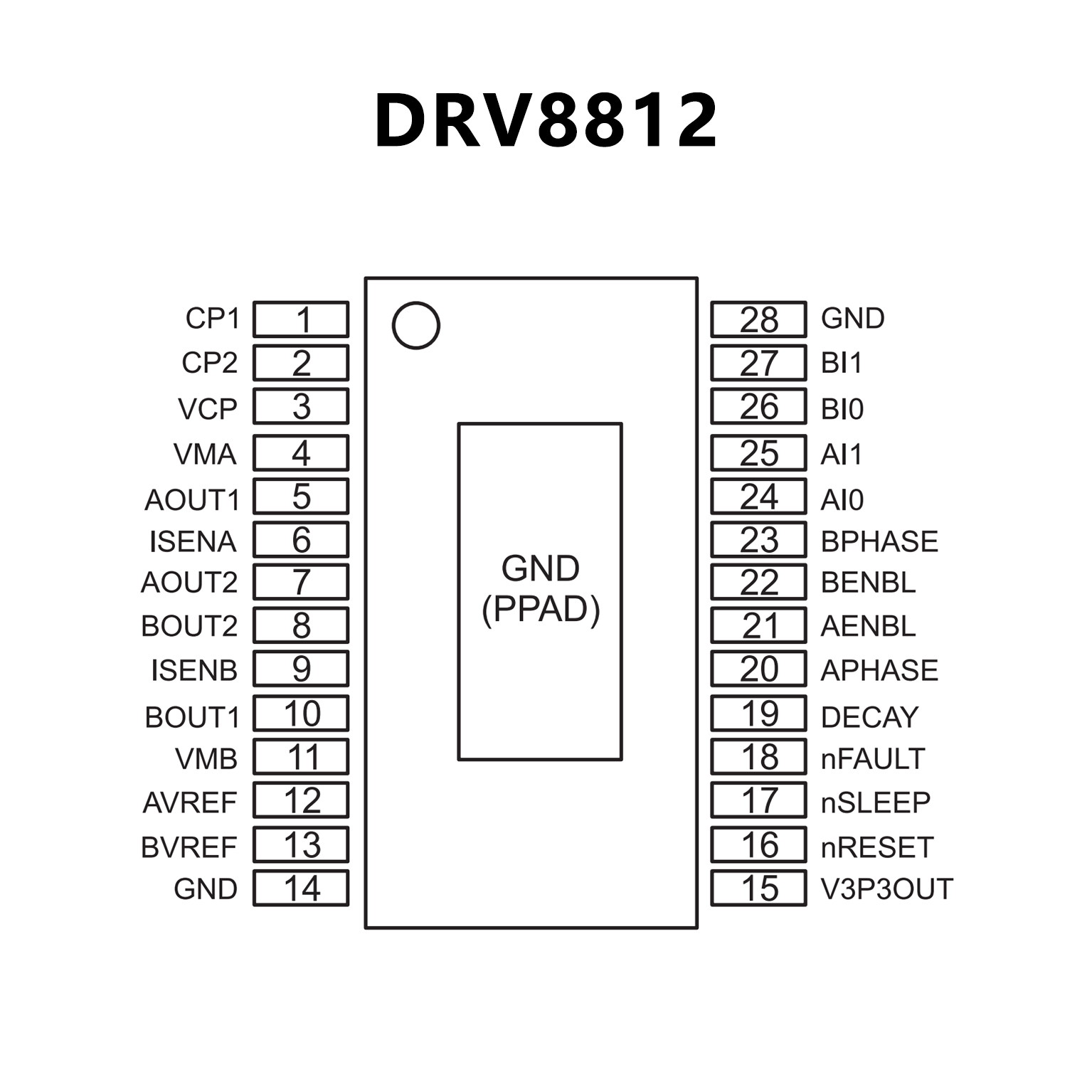

PIN CONFIGUTION
