SGM42501.pdf? H-Bridge Motor Driver
? Operating Voltage Range: 6.5V to 40V
? Low On-Resistance: 0.43Ω (HS + LS) at +25℃
? Peak Current: 3.6A
? Interface
SGM42500: IN1/IN2
SGM42501: PH/EN
? Adjustable PWM Current Limit in Real-Time
? Low Power Standby Mode
? Integrated Protection Features
Over-Current Protection (OCP)
Under-Voltage Lockout (UVLO)
Thermal Shutdown (TSD)
Auto-Retry
? Available in a Green SOIC-8 (Exposed Pad) Package
? H-Bridge Motor Driver
Drives One DC Motor, One Winding of a
Stepper Motor， or Other Loads
? Wide 6.5-V to 45-V Operating Voltage
? 565-mΩ Typical RDS(on) (HS + LS)
? 3.6-A Peak Current Drive
? PWM Control Interface
? Integrated Current Regulation
? Low-Power Sleep Mode
? Small Package and Footprint

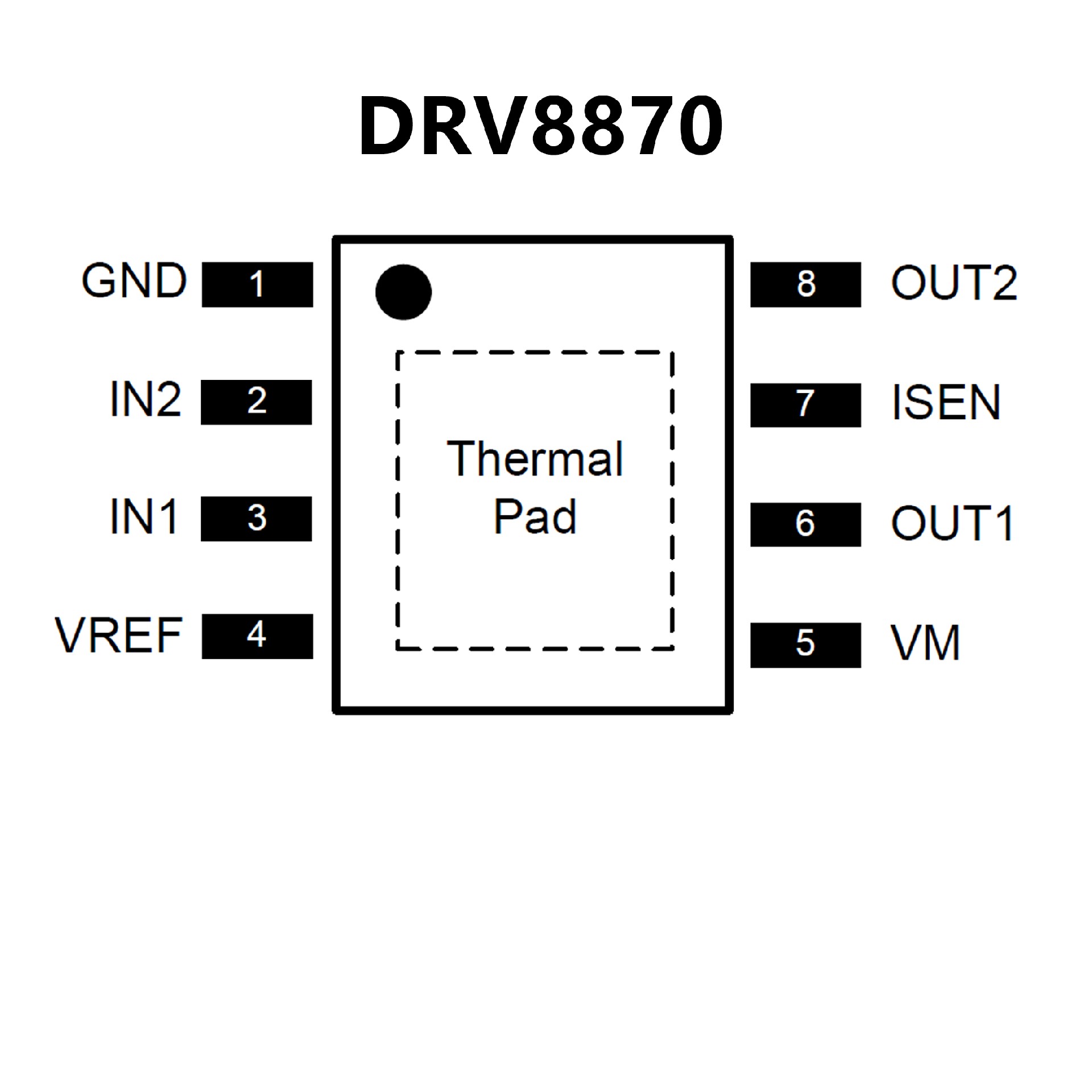

8-Pin HSOP With PowerPAD?
4.9 × 6.0 mm
? Integrated Protection Features
VM Undervoltage Lockout (UVLO)
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
Automatic Fault Recovery
