Full Bridge DMOS PWM Motor Driver, SGM42500Q Replace A4950
SGM42500Q.pdf優(yōu)勢替代
FEATURES
? Low RDS(on) outputs
? Overcurrent protection (OCP)
? Motor short protection
? Motor lead short to ground protection
? Motor lead short to battery protection
? Low Power Standby mode
? Adjustable PWM current limit
? Synchronous rectification
? Internal undervoltage lockout (UVLO)
? Crossover-current protection
? A4950K is AEC-Q100 Grade 1 qualified
? Commercial temperature grade (A4950E: –40°C to 85°C )
? Automotive temperature grade (A4950K: –40°C to 125°C)

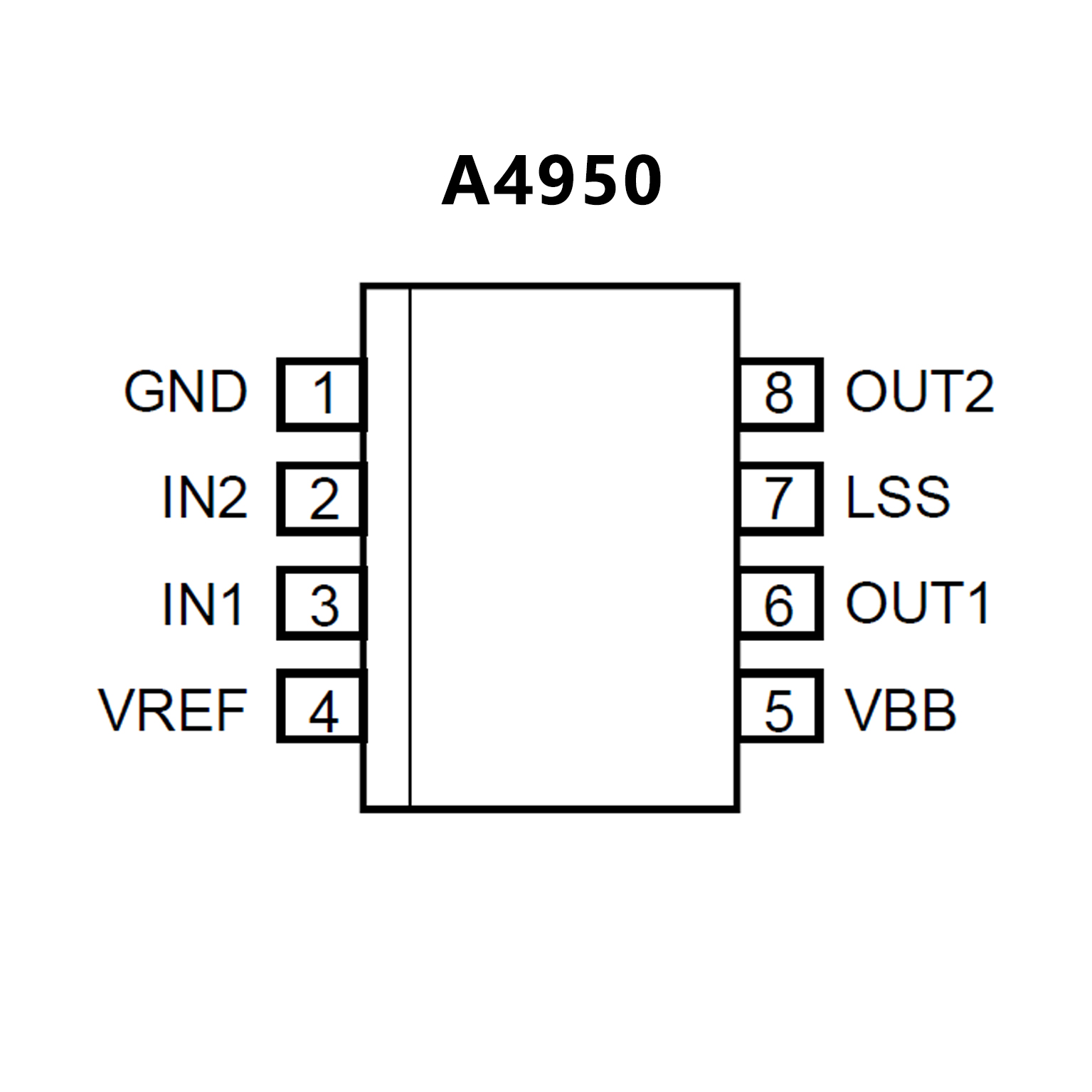

PIN CONFIGUTION
