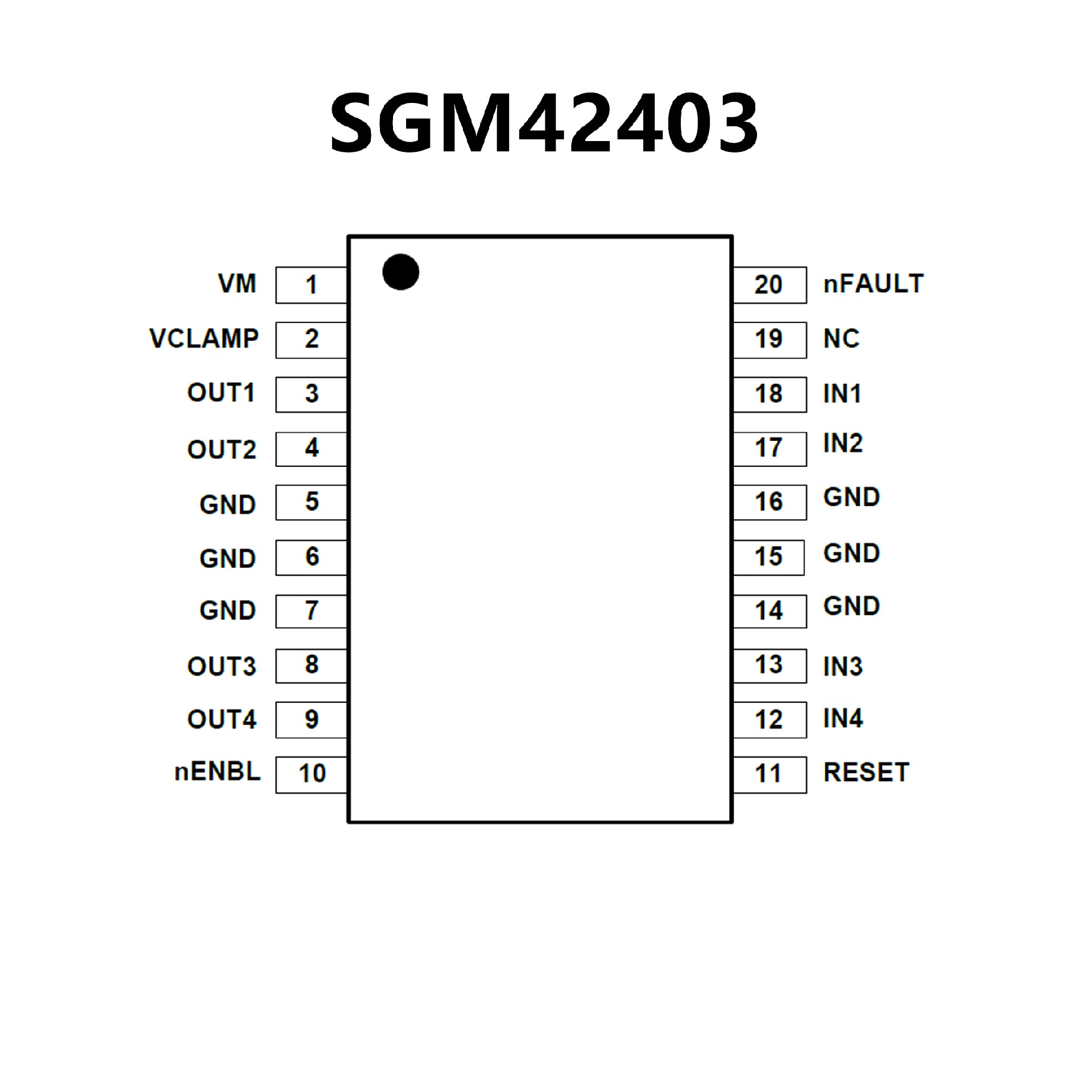

SGM42403.pdf? Power Supply Voltage Range: 8.2V to 60V
? Quad Low-side Driver
Parallel Interface
Four N-MOSFETs with Over-Current Protection
Integrated Inductive Clamp Diodes
? Continuous Output Current
SOIC-20 Package:
1.5A (1-Channel On)
800mA/CH (4-Channel On)
? TSSOP-16 (Exposed Pad) Package:
2A (1-Channel On)
1A/CH (4-Channel On)
? Full Set of Protections
Internal Inductive Energy Clamp at 60V
Thermal Shutdown with Auto-Retry
Overload Protection
Short-Circuit Protection
Under-Voltage Lockout

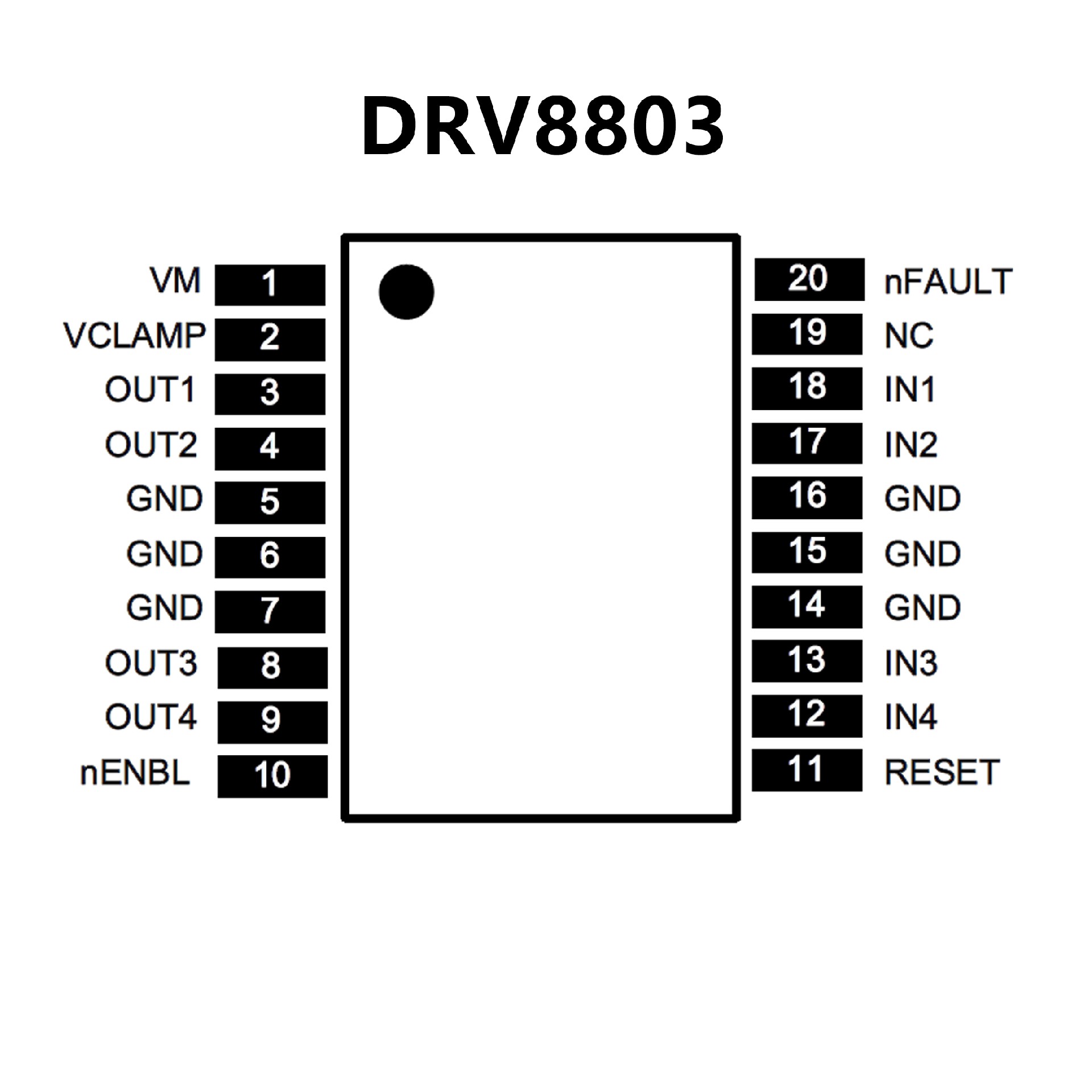

? 4-Channel Protected Low-Side Driver
Four NMOS FETs With Overcurrent Protection
Integrated Inductive Clamp Diodes
Parallel Interface
? DW Package: 1.5-A (Single Channel On) /
800-mA (Four Channels On) Maximum Drive
Current per Channel (at 25°C)
? PWP Package: 2-A (Single Channel On) /
1-A (Four Channels On) Maximum Drive Current per
Channel (at 25°C, With Proper PCB Heatsinking)
? 8.2-V to 60-V Operating Supply Voltage Range
? Thermally Enhanced Surface Mount Package
