40V, 160mΩ Quad Channel Smart High Side Switch, SGM42214Q Replace TPS4H160-Q1.
SGM42214Q.pdf優勢替代
FEATURES
? Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to asd
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H3A
Device CDM ESD Classification Level C4B
? Functional safety capable
? Quad-Channel 160-mΩ Smart High-Side
Switch With Full Diagnostics
? Wide Operating Voltage 3.4 V to 40 V
? Ultralow Standby Current, < 500 nA
? High-Accuracy Current Sense: ±15% Under >25-mA Load
? Adjustable Current Limit With External
Resistor,±15% Under >500 mA Load
? Protection
Short-to-GND Protection by Current Limit
(Internal or External)
Thermal Shutdown With Latch Off Option and
Thermal Swing
Inductive Load Negative Voltage Clamp With
Optimized Slew Rate

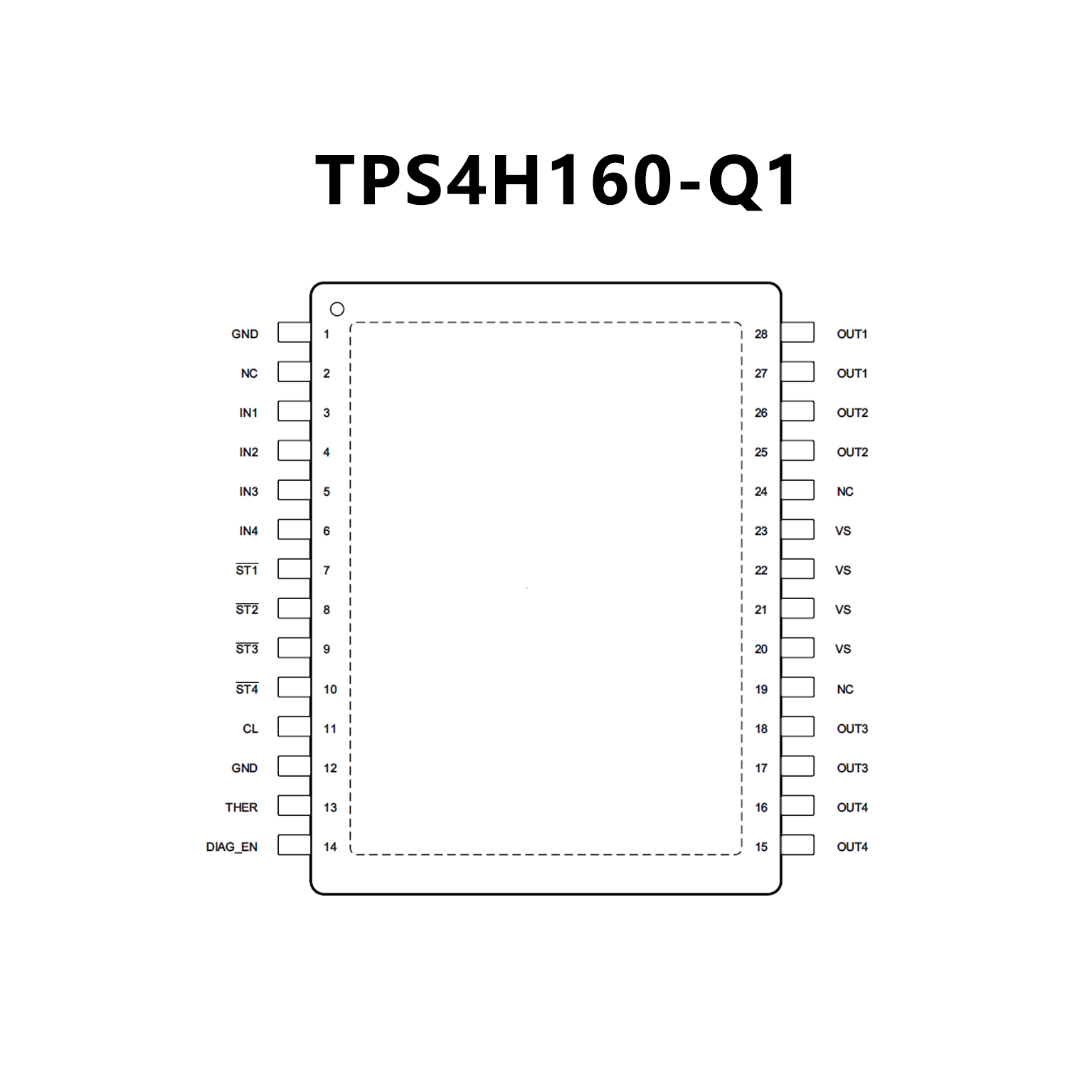

PIN CONFIGUTION
